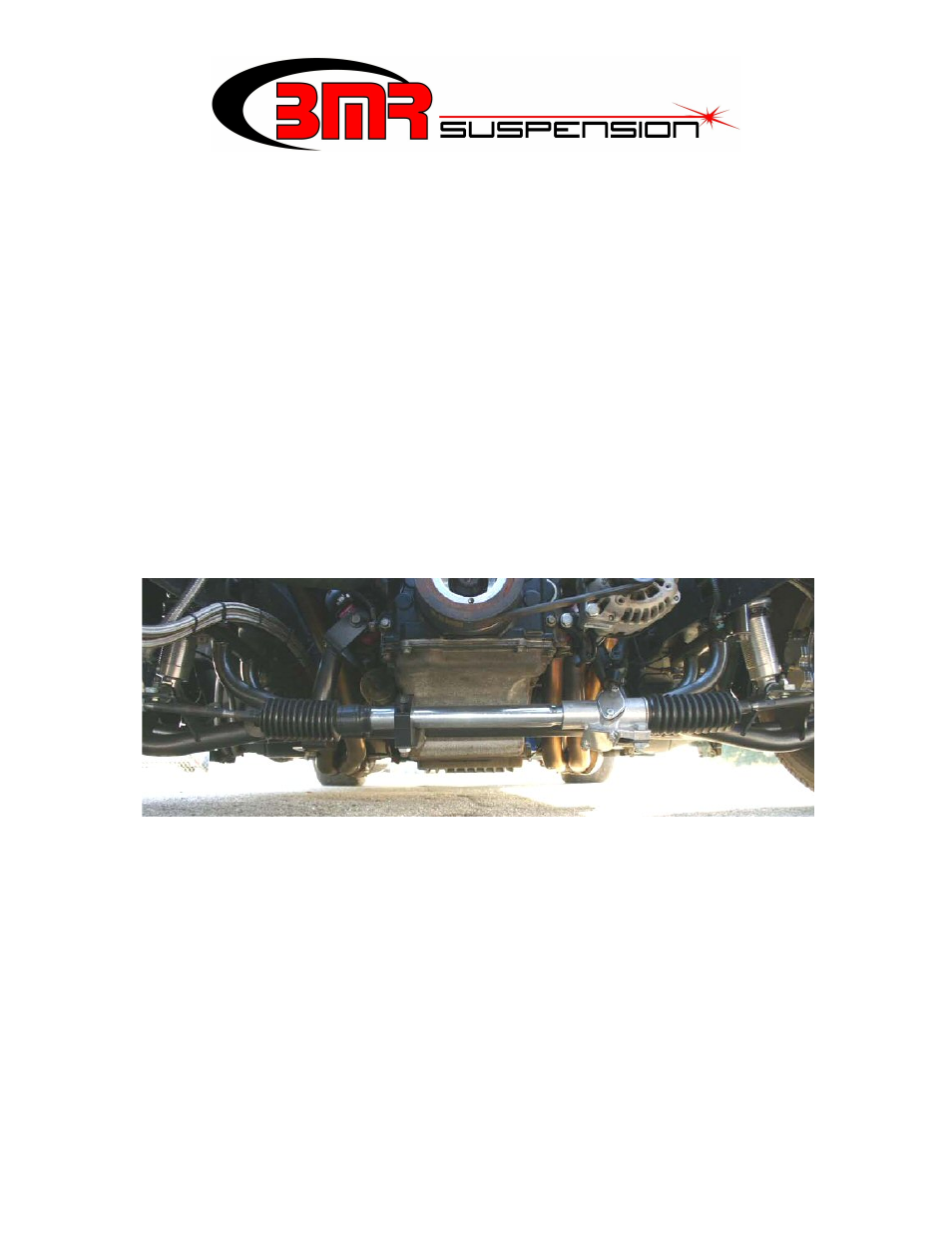

BMR MANUAL RACK CONVERSION KIT

PART# RK00l

9. For the next step, the vehicle needs to be resting on the suspension in order to get the
wheels adjusted square and set the toe. Insert the bolts from the

rod ends into the spindle,

attaching both spindles to the rack and pinion.
The spacers and washers should be assembled with a washer on each side of the spindle and a
beveled spacer on each side of the rod end. (See the image to the right). Tighten both bol
10. Turn both adjusters until the wheels are square. This can be accomplished by turning the
adjusters left or right to shorten or extend the length of the tie rod end. The toe can be crudely
measured by using a tape measure to find the distance between the rear of the front tires and
the front of the front tires. The measurement should be as close to equal as possible.

11.

At this point the vehicle should be taken to an alignment shop. Once the toe is properly

set, an experienced alignment technician can fine tune bump-steer by adding or removing
spacers at the outer tie rod bolt.

NOTE:

Various length spacers are provided for varying ride

heights. It may not be necessary to use all of the spacers in every application.

WWW.BMRSUSPENSION.COM

This product is an aftermarket accessory and not designed by the vehicles manufacturer

for

use on this

vehicle. As such, buyerassumes all risk of anydamag

caused to the

vehicle/person

during installation/use

of this product.
