BMR Suspension STB013 - Manual (Page 2)

2 POINT STRUT TOWER BRACE (Cont.)
STB013 – 2010-present Camaro
6. Insert the provided 5/16” x ¾” bolts up through the bottom of the strut tower then thread a stainless washer and acorn nut

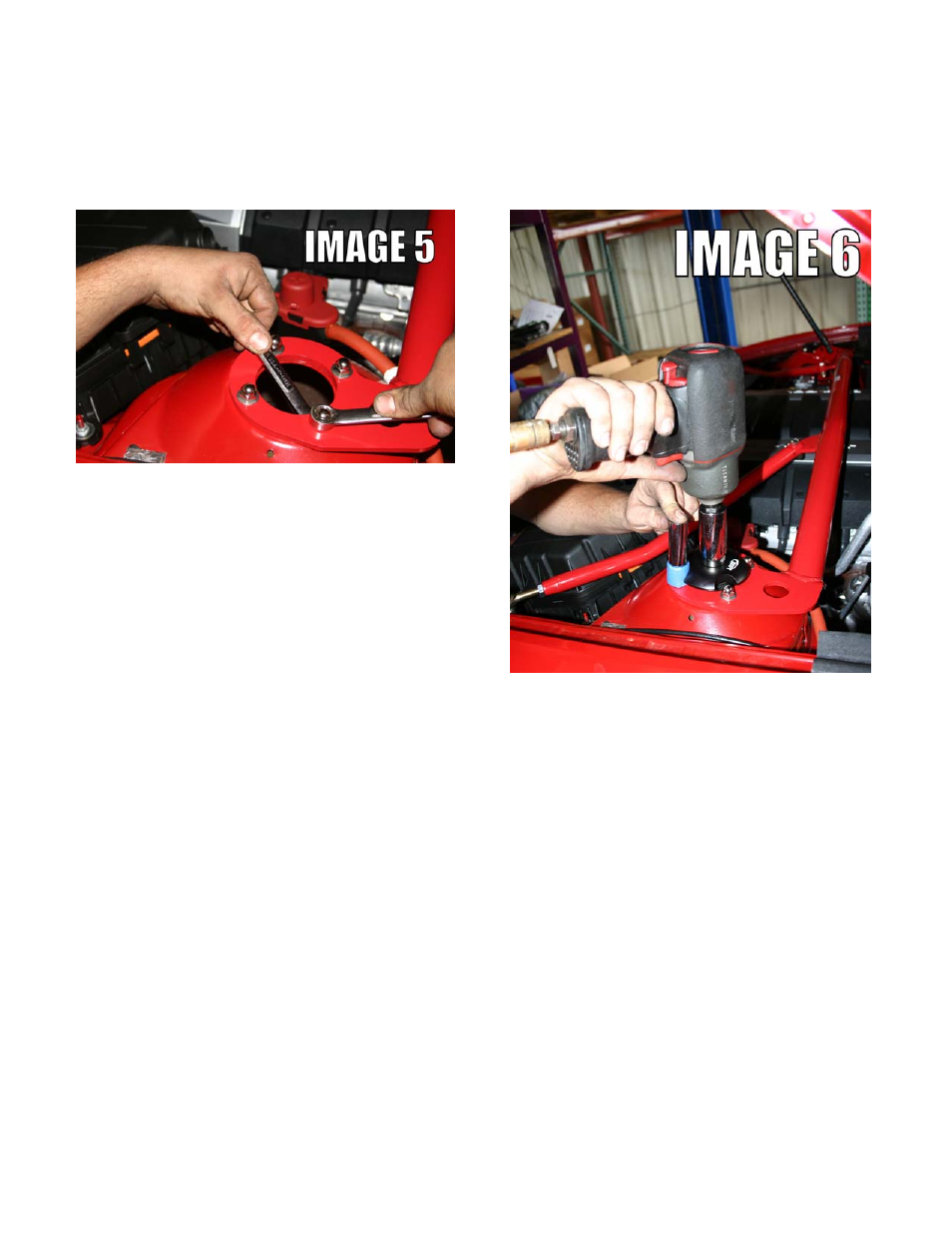

onto each bolt. Using two ½” wrenches, tighten all (8) bolts. See Image 5.
7. Lower vehicle, allowing the struts to return to their original position. It may require the help of another person to guide the
strut mount up into the strut tower while the car is being lowered.
8. Place (1) of the provided ½” flat washers onto the stud of
each strut.
9. Install the provided billet strut retainer and the new provided
14mm jam-nut.
10. To prevent the billet strut tower retainer from turning when
tightening the strut shaft nut, wrap a ½” deep socket with
tape and hold it on one of the mounting nuts. Tighten the
strut retainer nut to 52 ft/lbs. See Image 6.
