BMR Suspension BK039 - Manual (Page 4)

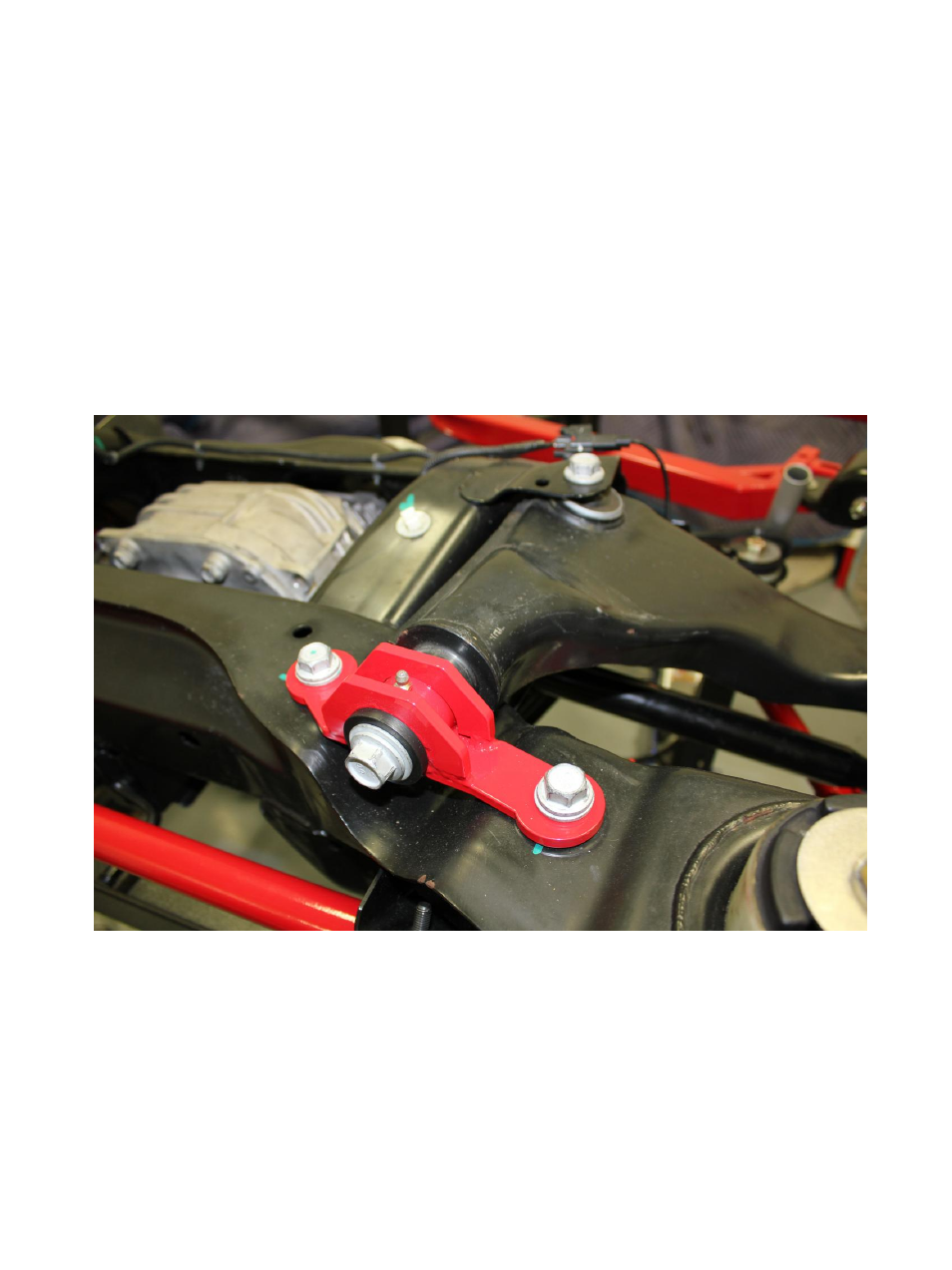

Delrin Upper Control Arm Bushings
BK039 (Continued)
12. Lift the cradle up against the frame making sure that the rear alignment dowels
are seated properly then insert the 4 mounting bolts. Torque all bolts to 130 ft/lbs.
13.
Re-install the emergency brake cable to the bracket.
14. Plug the fuel pump wiring harness back in.
15. Bolt the driveshaft back into place and torque the three bolts to 85 ft/lbs.
16. Re-install the driveshaft tunnel exhaust shield.
17. Re-install the exhaust.
18. Bolt the driveshaft tunnel brace back into place and torque to 45 ft/lbs.
19. Install the rear wheels and lower the vehicle.
WWW.BMRSUSPENSION.COM
This product is an aftermarket accessory and not designed by the vehicles manufacturer for use on
this vehicle. As such, buyer assumes all risk of any damage caused to the vehicle/person during
installation or use of this product.
