ITEM
PART
NUMBER
DESCRIPTION ITEM
PART
NUMBER
DESCRIPTION
1 BE227-1
BEDS, ASSY, MULTIPLE, 1.500” BED OD,
ANNULUS, FREESTYLE
10 OR026-1
O-RING, BUNA N, 70 DURO, 1.0mm CS, 8.0mm ID,
10mm OD
2 CA232-1
CABINET, COMPRESSOR, MOUNTING PLATE,
FREESTYLE
11 OR027-1 O-RING, BUNA N, 70 DURO, 1.5mm ID, 3.5mm ID
3 CO264-1 COMPRESSOR, ASSY, 1.252” BORE, FREESTYLE 12 OR027-2 O-RING, BUNA N, 70 DURO, 1.5mm ID, 6.0mm ID
4 F0593-1
FITTING, COMPRESSOR, BLOWDOWN SIDE,
FREESTYLE
13 OR028-1 O-RING, BUNA N, 70 DURO, .045” CS, .167” ID
5 F0594-1 FITTING, COMPRESSOR, INTAKE SIDE, FREESTYLE 14 SC002-4 SCREW, STEEL, PNH, PHILLIPS, 6-32, 1/4” LG
6 GS024-1
GASKET, NITRILE, COMPRESSOR/FW
MANIFOLD, FREESTYLE
15 SC105-1 SCREW, SS, CAP, SOCKET HD, HEX, 10-32, 5” LG
7 MA181-1 MANIFOLD, ASSY, PRODUCT, FREESTYLE 16 TA115-1 TANK, VOLUME, ASSY, 1.125” OD, FREESTYLE
8 MA183-1 MANIFOLD, ASSY, FEED/WASTE, FREESTYLE 17 TW011-1 TIE WRAP, NYLON, 2.83” LG, 0.065 W, BLACK
9 OR025-3 O-RING, -008, BUNA N, 70 DURO, 1/16”CS, 3/16”ID

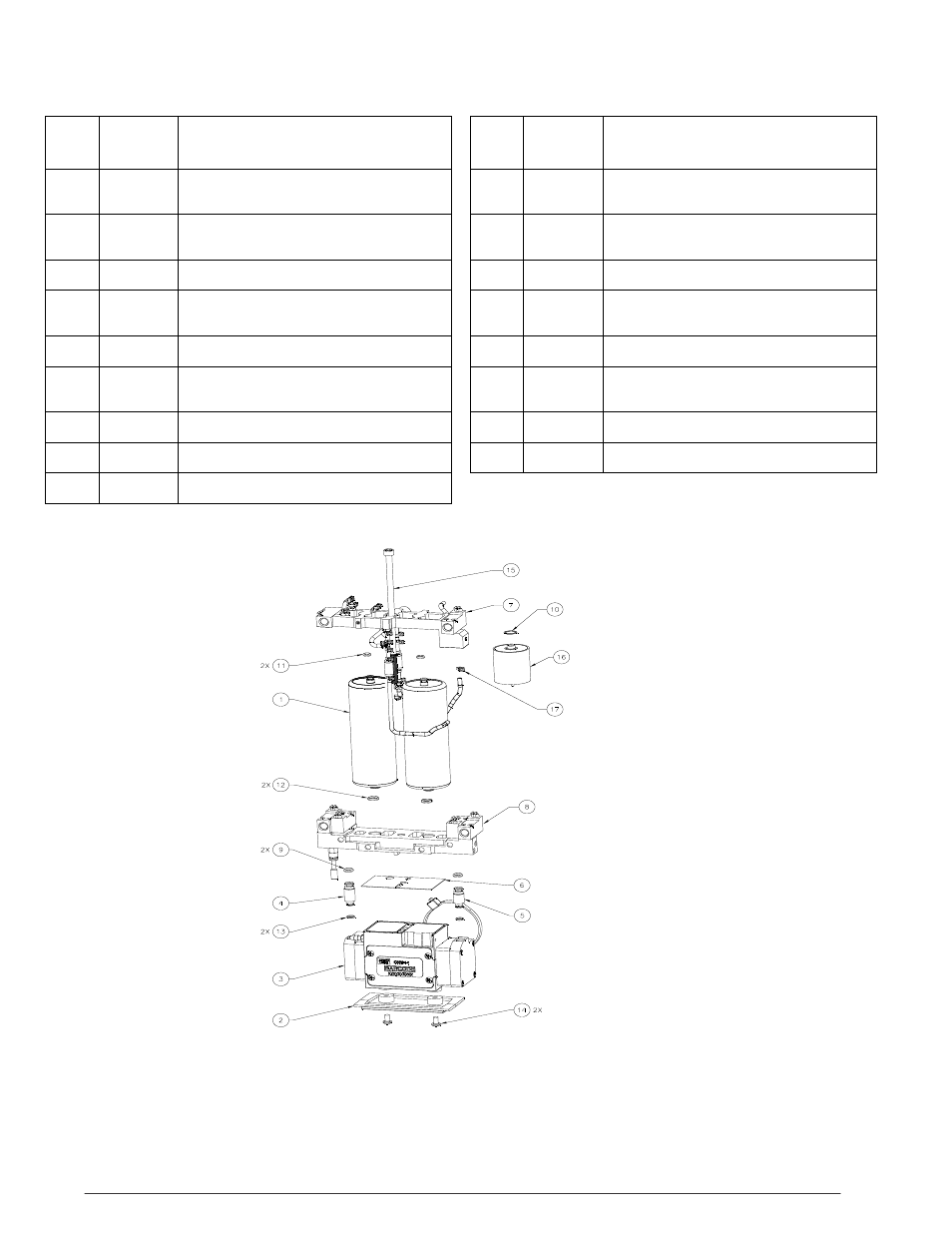

Figure A.3: PSA Assembly – Product Manifold
AirSep Corp. — FreeStyle Service Manual A-3
