5. When installing the new fan, be sure the arrow on the side of the fan is
pointing outwards toward the front cover. This arrow indicates the direction of
the airflow of the fan. Be sure the two wires coming from the fan are located
on the upper left side.

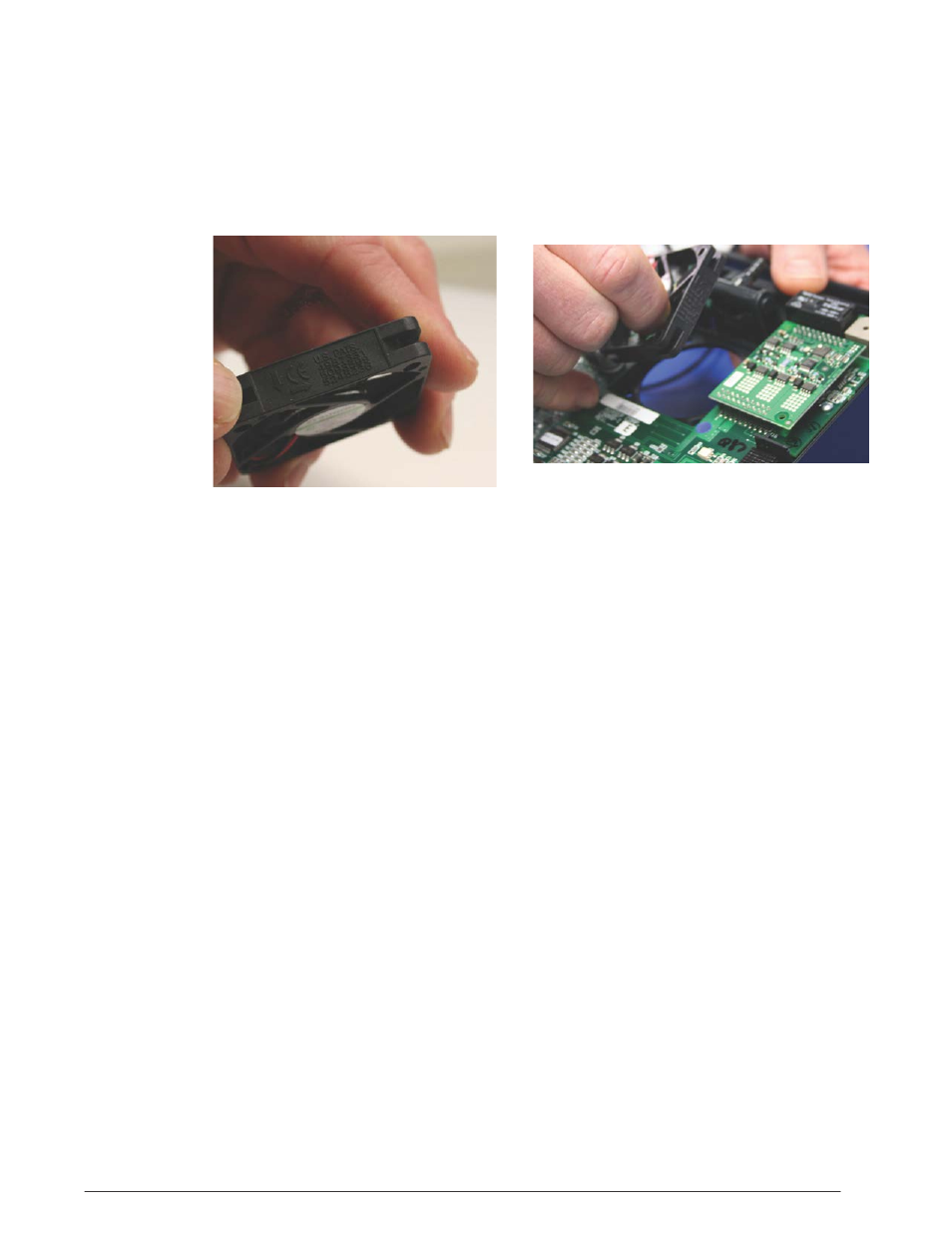

(Figure 5.49a, b)
Figure 5.49a
Figure 5.49b
6. Insert screws through each of the four corners of the fan. Secure with kep nut.
Do not over tighten.
7. Connect Molex connecter to the circuit board.
