5-28 AirSep Corp. — FreeStyle Service Manual

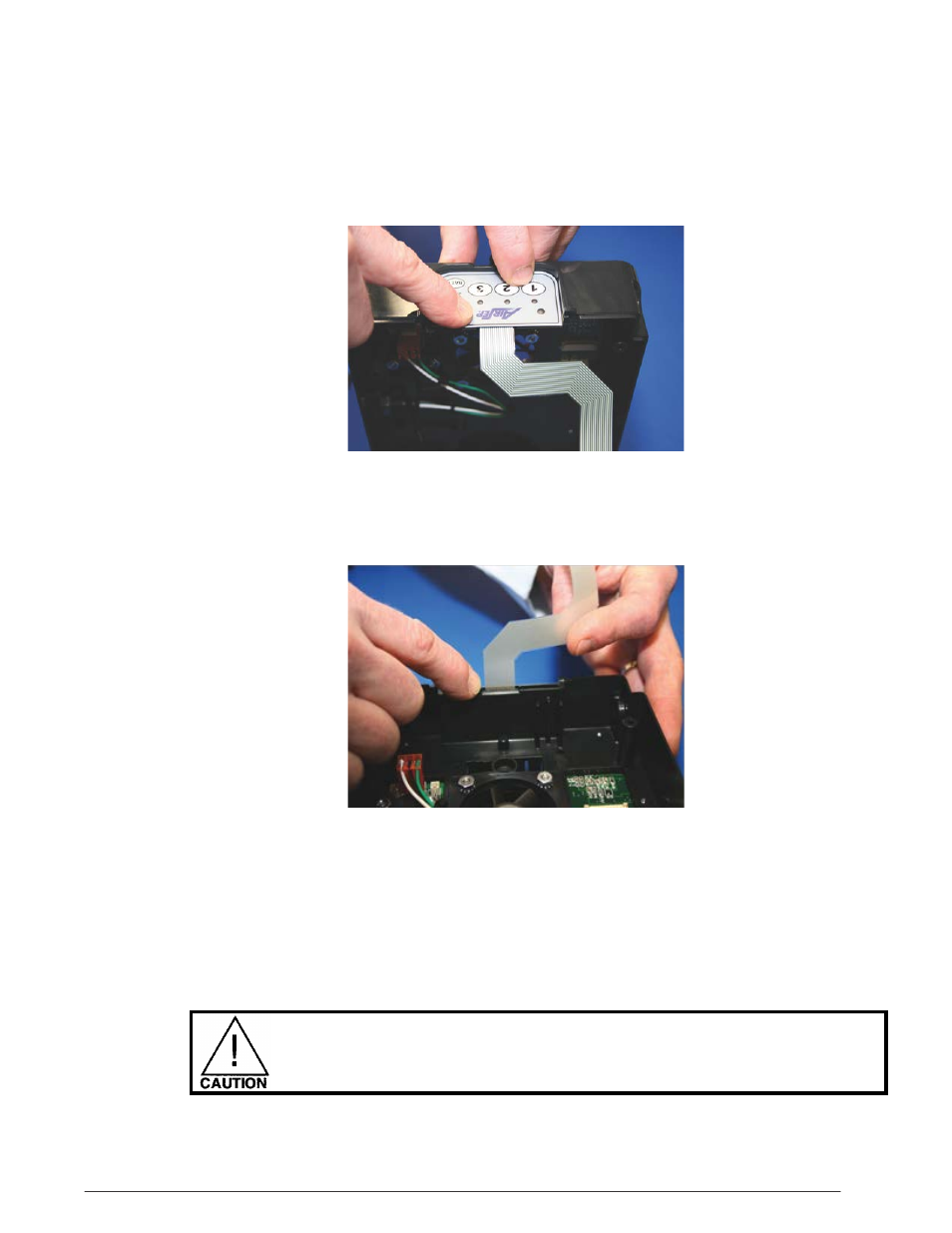

8. Carefully align control/keypad to enclosure recessed control panel area, and
press keypad evenly to ensure all adhesive is in contact with plastic surface.
(Figure 5.42)
Figure 5.42
9. Route the flex circuit from control panel keypad notched area of control panel
enclosure section. (Figure 5.43)
Figure 5.43
10. Bend flex circuit 180 o , being careful not to crease or fold the flex circuit.
(Figure 5.44)
If creased or folded, the flex circuit will be damaged
