Installing the Hand Pendant

1. Remove the hand pendant from the shipping bag

2. Insert the plug end of the cord into the hand pendant
receptacle on the backrest shroud. See figure 8.

3. Make sure the tab on the cord plug is aligned with the

groove in the receptacle and plug is fully seated

4. Thread the locking collar onto the receptacle

5. Test the hand pendant for operation

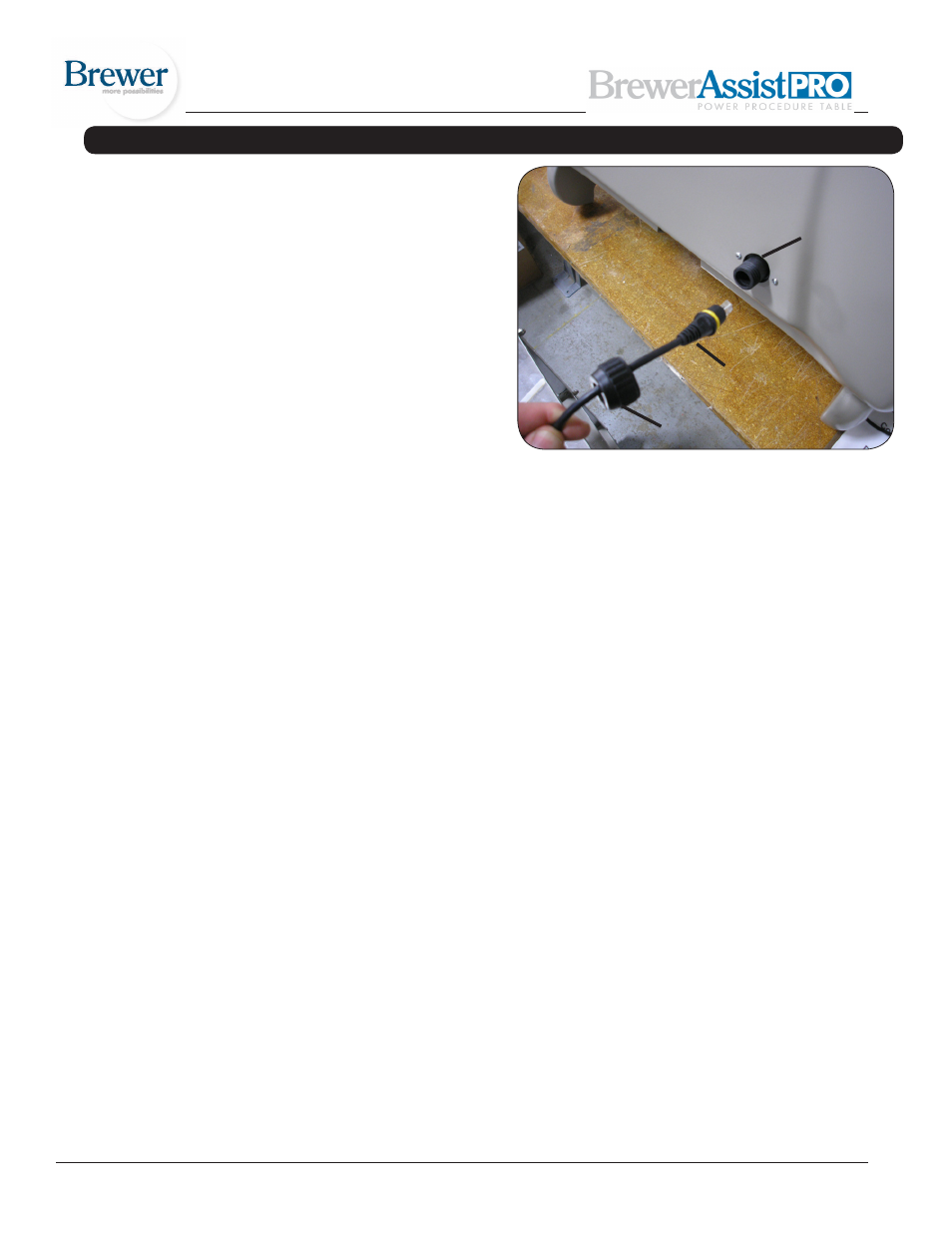

Figure 8

INSTALLATION (CONTINUED)

Receptacle

Hand

Pendant

Cord

Locking

Collar
