Stirrups

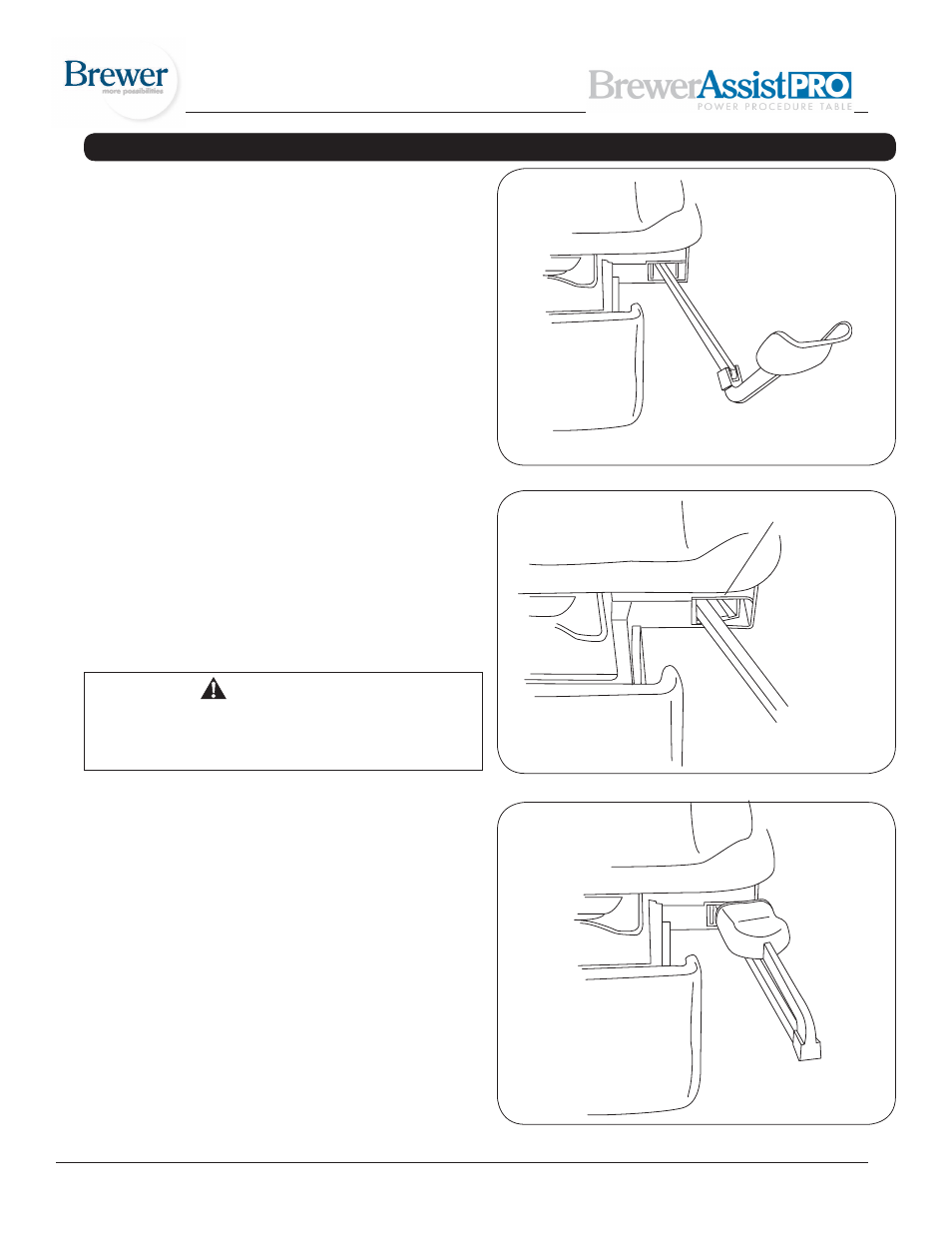

Figure 21. Operating the Stirrups
O
perating the
S
tirrupS
(F
igure
21)
1. To operate the stirrups, grasp end of stirrup and pull
straight out of the table. Lift up slightly while sliding
the stirrup out.
NOTE: Do not apply any downward pressure when pull-
ing stirrup from table or it may be difficult to move. This
is normal and is part of the stirrup friction locking mecha-
nism
2. Unfold stirrup upward to the fully open position.
3. Adjust the stirrup to the desired length by sliding it in
or out.
S
tirrup
L
ateraL
a
djuStment
(F
igure
22)
1. Lift end of stirrup and then rotate outward to
desired position.
2. When the desired position is achieved, lower the stir-
rup to engage the lateral locking mechanism.
3. Check that lateral locking mechanism is engaged by
attempting to rotate stirrup assembly without lifting on
the stirrup end.
WARNING
Failure to engage the lateral locking mechanism
could allow patient to lose balance resulting in
personal injury to patient.
S
tOring the
S
tirrupS
(F
igure
23)
1. To store the stirrups in the table, grasp end of stirrup
and pull straight out to its full extension.
2. Fold stirrup down against bar, then rotate it to the
inner most lateral position and slide it back into the
stowed position.
Figure 22. Stirrup Lateral Adjustment
Pull Stirrup out, then unfold
Lateral Locking Mechanism
Figure 23. Storing the Stirrups
