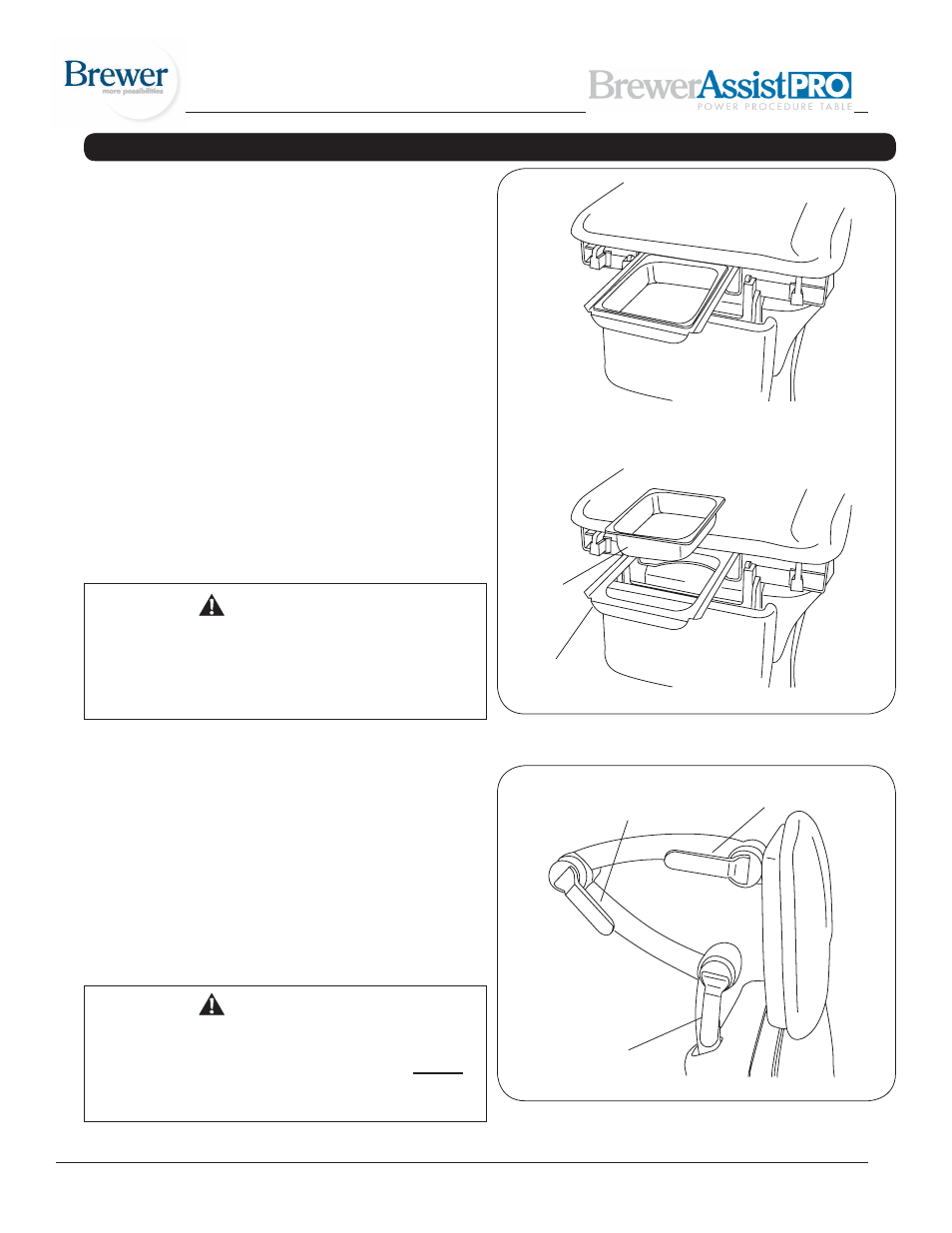

Figure 24. Treatment Pan
Figure 25. Headrest Handles
Treatment Pan (Figure 24)
NOTE: A safety switch prevents upward motion of the
legrest when the treatment pan tray is extended. This pre-
vents the legrest from contacting the treatment pan tray. If
the legrest upward motion is inoperable, check to ensure
that the treatment pan tray is in its fully stowed position
(inward). A light clicking sound will be heard just before
the treatment pan reaches its fully stowed position.
1. To expose the treatment pan for use, grasp the tray
handle and pull until tray is fully extended (Figure 24).
2. The pan can be easily removed for cleaning with
the tray fully extended. Fully seat pan into tray when
clean.
3. Push the tray handle as far in as it will go to fully stow
the treatment pan after use. A light clicking sound will
be heard just before the pan reaches its fully stowed
position.
Headrest Positions (Figure 25)
WARNING
Make sure headrest is securely locked into position
before use. Failure to have the three handles cor-
rectly locked could result in headrest falling during
a procedure which could result in serious personal
injury.
1. To move the headrest, rotate the three handles to
their open position. Move the headrest to its desired
location. Rotate the 3 handles to their locked position
as shown in Figure 25.
2. Each section of the headrest can be adjusted inde-
pendently by rotating the handle to the open position,
moving the desired section, and then rotating the
handle to the closed position.
NOTE: Make sure all three handles are locked. A handle
is locked correctly when it is pushed past center and
the force of the clamping action pulls the handle into the
locked position and holds it there.
WARNING
If any of the handles fails to lock properly, the
headrest assembly could fall during a procedure.
This could cause severe injury to a patient. Do not
attempt to repair the headrest assembly yourself;
call for service.
TABLE ADJUSTMENTS (CONTINUED)
Headrest Handle
(Locked)
Upper Handle
(Locked)
Lower Handle
(Locked)
Tray
Treatment
Pan
