Brewer AssistPRO - Manual (Page 12)

Document # 101522 0608 REV A ER 784 12
TABLE ADJUSTMENTS (CONTINUED)

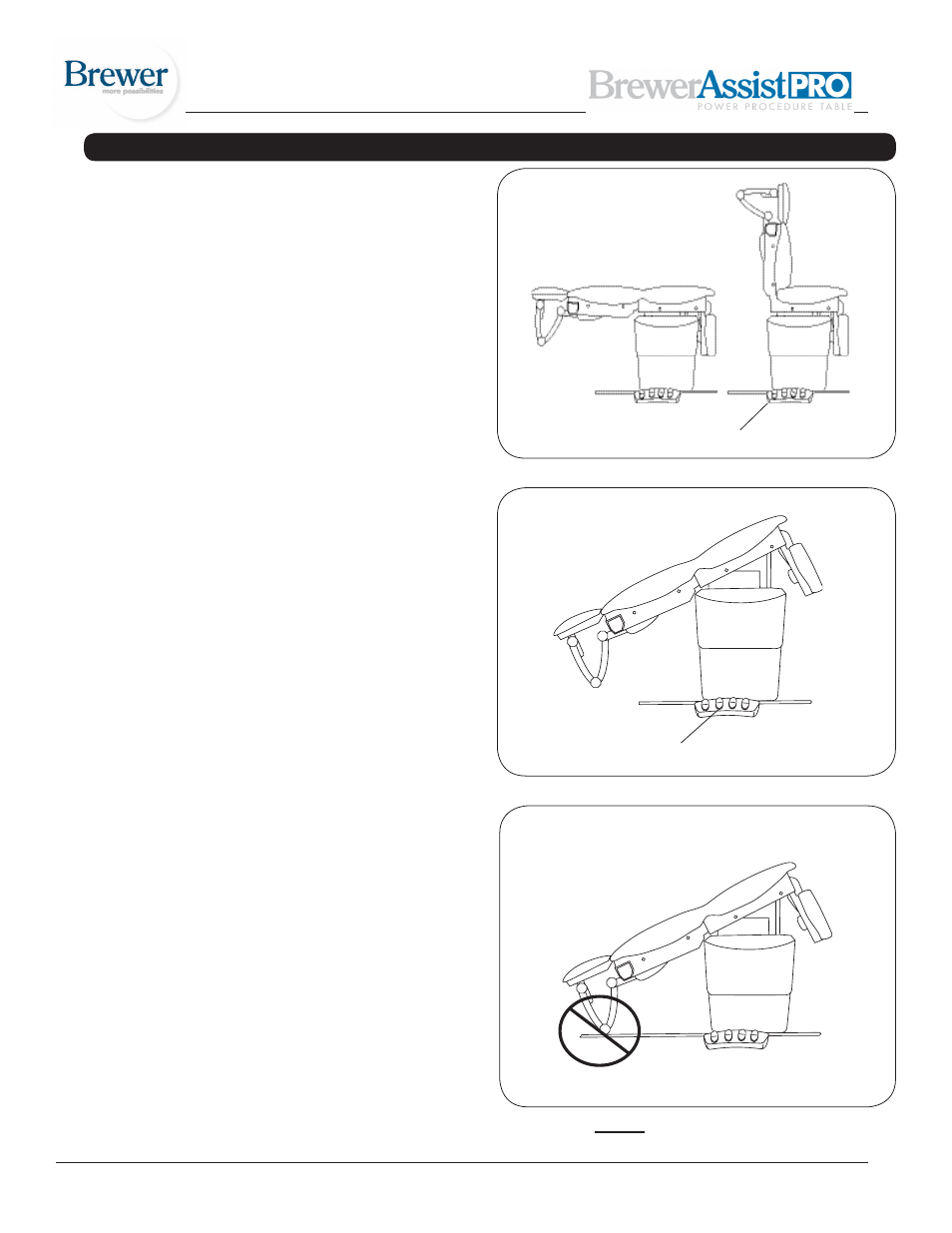

Tilt Function (Figure 14)
The table top can be tilted to any angle between
horizontal and +30° (foot end of table raised).
1. To tilt the foot end of the table upward, depress and
hold the Tilt/Up function until the desired angle is
achieved.
2. To tilt the foot end of the table downward, depress
and hold the Tilt/Down function until the desired angle
is achieved.
NOTE: The headrest linkage may contact the floor or other
object when the table is tilted (Figure 15). If this occurs,
raise the table, reduce the amount of tilt, or raise the back.
Figure 14. Tilt Function
Figure 13. Adjusting Backrest
Backrest Position Control
Figure 15. Do Not Allow Headrest to Contact Objects
Back Positions (Figure 13)
The back can be adjusted to any angle between horizon-
tal and 85°.
1. To adjust the back from a chair (upright) position to a
horizontal position, depress and hold the Back/Down
function until the desired angle is achieved.
2. To adjust the backrest from a horizontal position to a
chair (upright) position, depress and hold the Back/Up
function until the desired angle is achieved.
NOTE: The back is controlled by an actuator that raises
the back when activated. When lowered, the actuator
retracts and gravity causes the back to lower.
Tilt Function Control
