Chapter 5. Using the Terminal Menu
5-4 ATLAS _ 800 PLUS User Manual 61200226L1-1

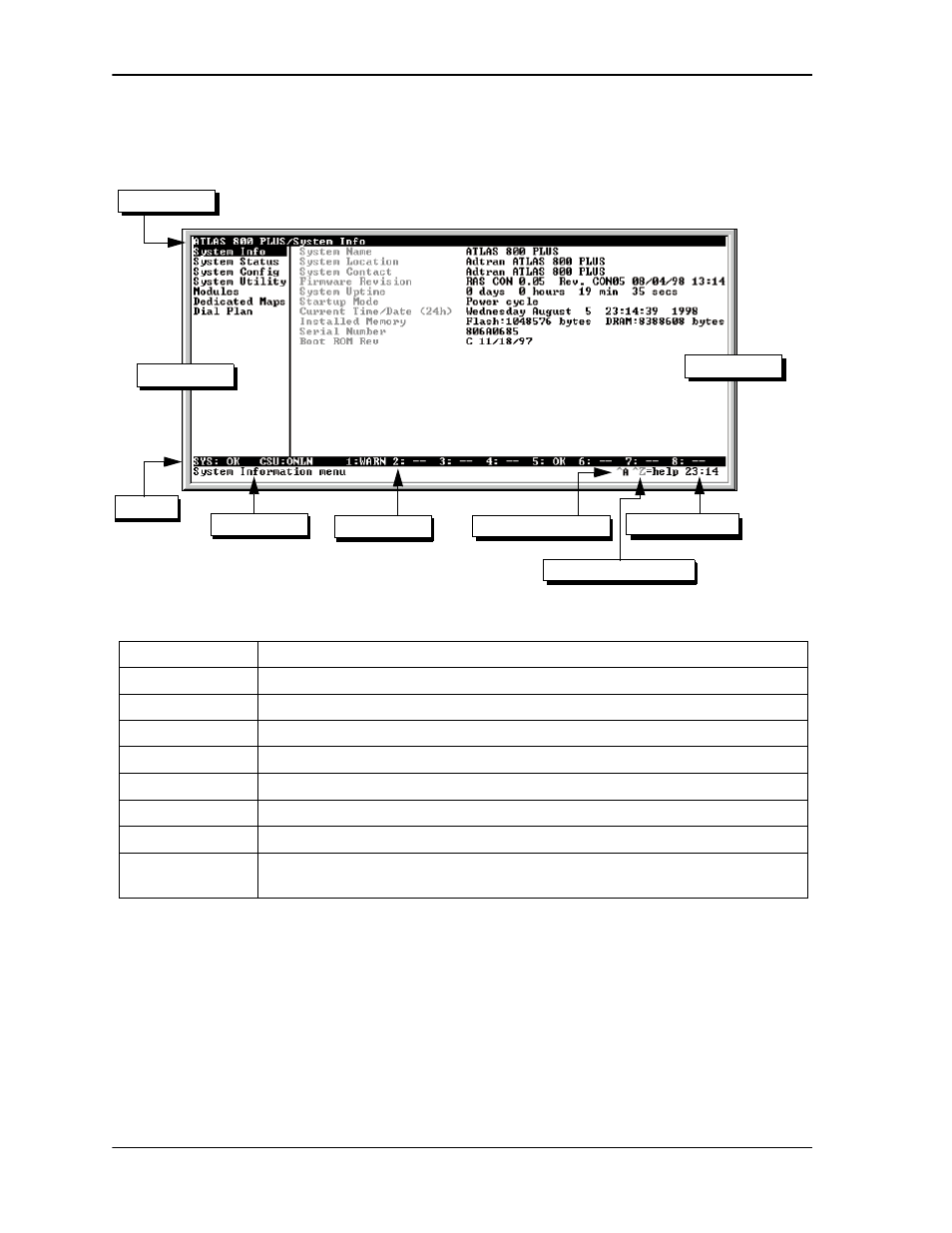

Figure 5-1. Top-Level Terminal Menu
Menu Path Describes current position in the terminal menu structure.
Left Pane Lists available menus.
Right Pane Shows contents of currently selected menu.
Sys Describes ATLAS base unit.
Tool Tip Brief description of currently selected command.
Port Status Displays information about ports 1—8.
Extended Help Displays information about selected commands (Ctrl-A).
Navigation Help Lists characters used for navigating the terminal menu (Ctrl-Z).
System Time Displays current time. See “Current Time/Date (24h)” on page 5-8 for details
on editing the time.
Left Pane
Right Pane
Menu Path
Sys
Tool Tip Port Status Extended Help
Navigation Help
System Time
