20
49-80549-2
Installation Instructions

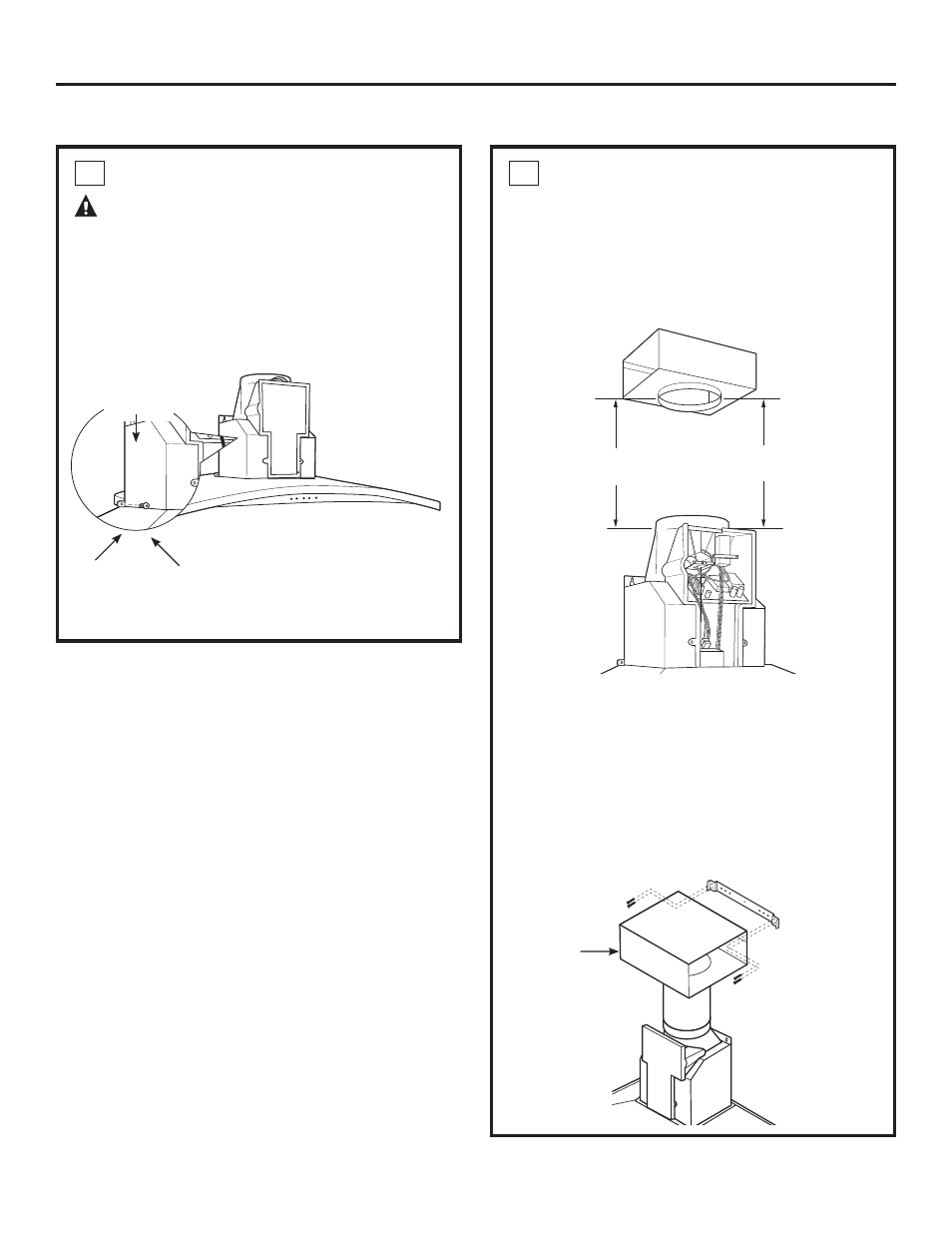

5 SIZE AND CUT DUCT PIECE
• Measure from the bottom of the air deflector
to the top of the hood as shown. Reduce that
dimension by 1” to facilitate installation. The
duct will cover and overlap the deflector and the
H[KDXVWRXWOHWLQWKHKRRG
• Remove the air deflector from the duct cover
bracket.
• Cut the duct piece to size and slip onto the bottom
of the deflector.
• Place the assembled deflector and duct over the
H[KDXVWRXWOHW
• Hold the assembly against the duct bracket.
• Drive 2 screws into each side of the bottom of the
deflector and into the bracket.
• Use duct tape to seal duct to the deflector and at
WKHH[KDXVWRXWOHW
Measure
length
Duct
length
Deflector
,167$//$7,21³5(&,5&8/$7,1*
4 MOUNT THE HOOD
WARNING:
2 people are required to lift
and position the hood onto the mounting screws.
• Lift the hood onto the mounting screws.
• If using a wall fastener, make sure the washer is in
front of the flange and not behind it. Check with a
level before tightening screws.
• Install lower screws to pull the hood tight against the
wall.
Tighten
screws
Install
screws
Bottom
screw
location
