7. Click the Add Server Group button to add this group.
The server group is listed in the Server Group table.

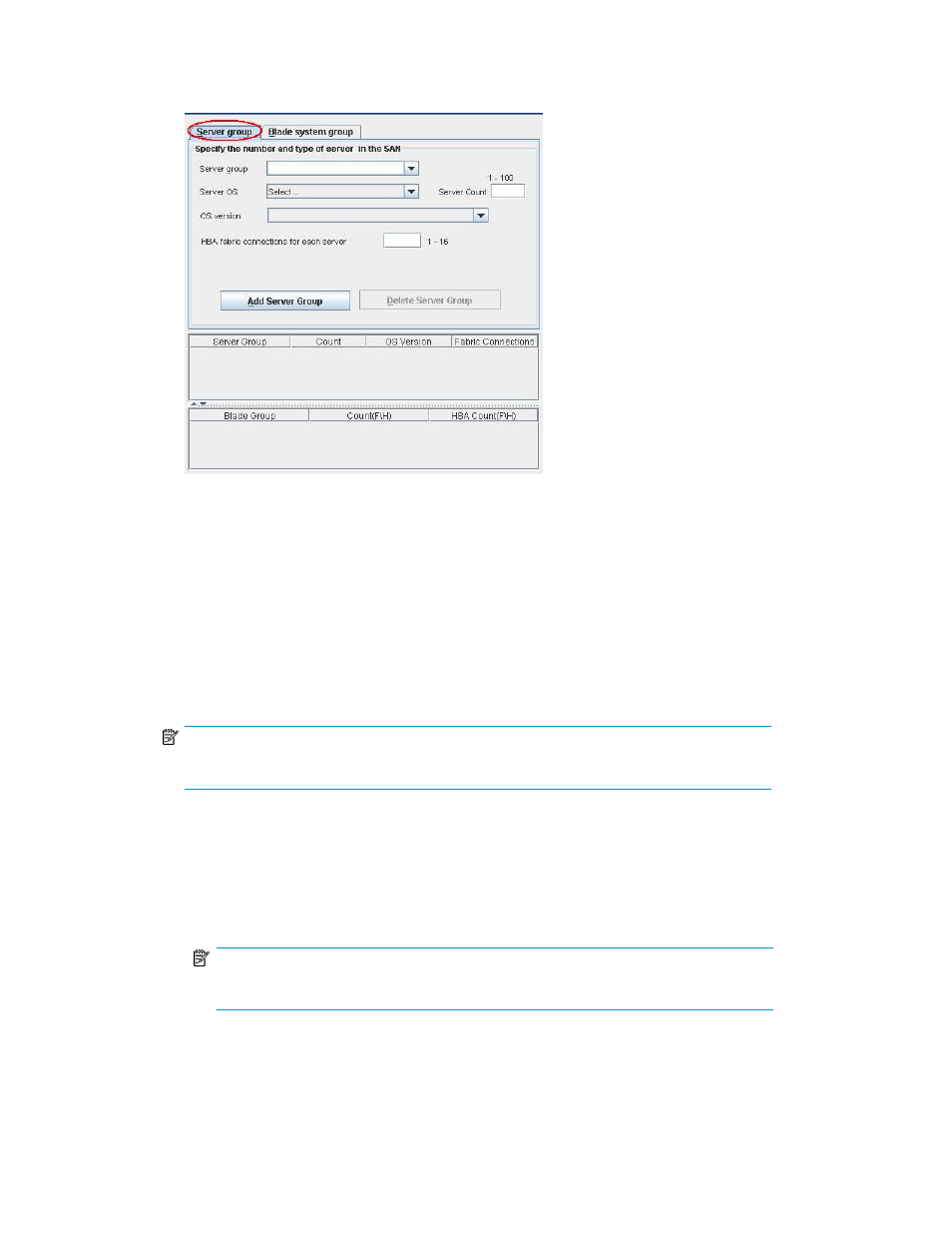

Figure 6 Server group window
.
Adding a blade system group
To add a blade system group, complete the following steps:
1. On the Select Server/Blade window, click the Blade system group tab. The blade server group
details are displayed, as shown in
Figure 7 .
2. Enter a convenient name (optional) for the blade system group in the Blade system group box.
3. Select the blade system class from the Blade system class drop-down list.
NOTE:
Only C-Class blade servers are supported in SAN Designer 1.5.
4. In the Full Height Server Blades panel, enter the following details:
a. Enter the number of full height server blades for this group in the Server blade count box.
The number must be between 1 and 100.
b. Enter the number of HBA fabric connections for each full height server blades in the HBA
count per server blade box.
NOTE:
Full height blade server can have a maximum of 3 HBAs for C-Class blade servers.
HP StorageWorks Essentials SAN Designer 1.5 User Guide 15
