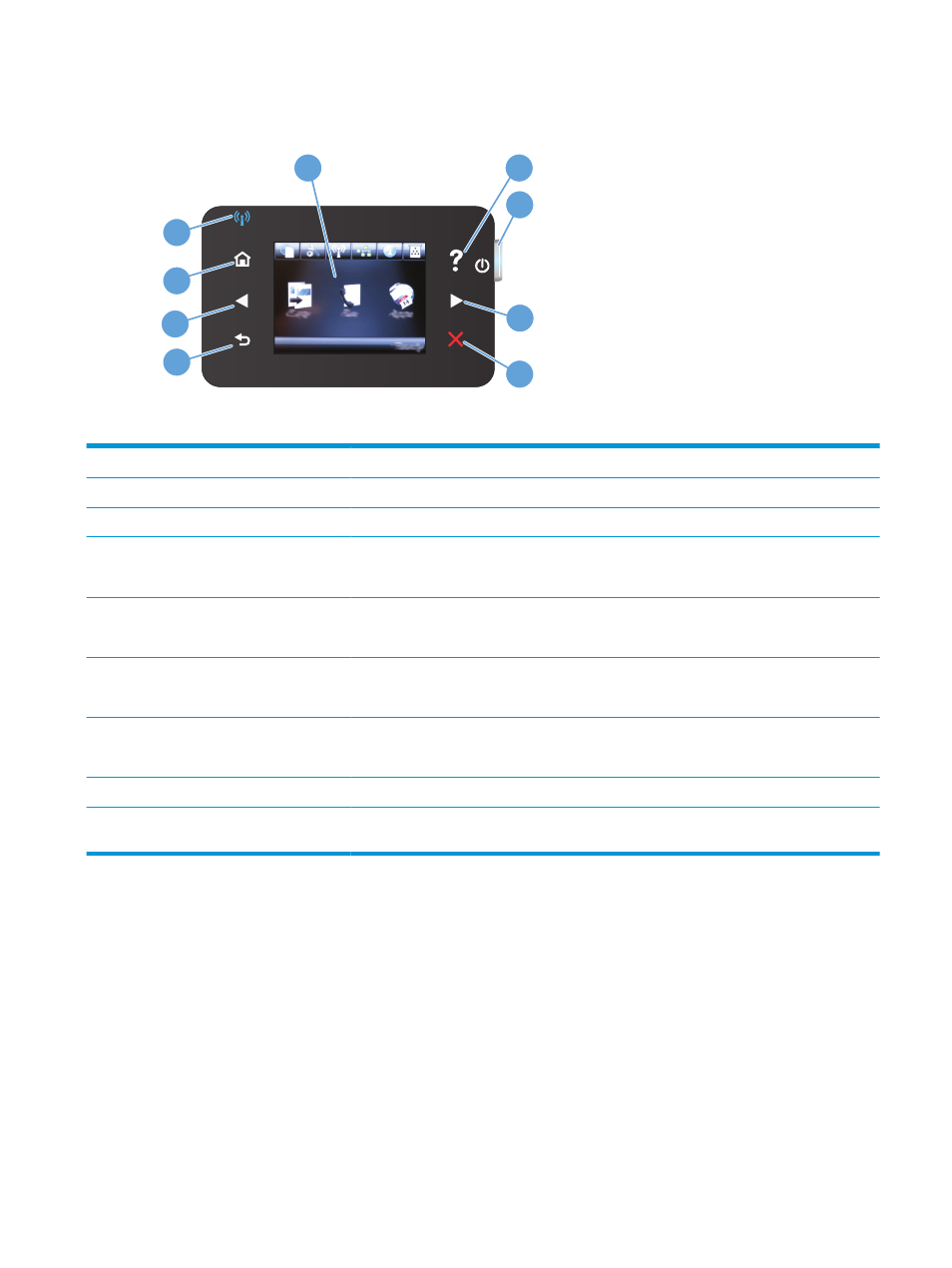

Touchscreen control-panel layout (M177fw model)
1
3
4
5
8
7
6
2
9
1 Touchscreen display Provides access to the product features and indicates the current status of the product
2 Help button and light Provides access to the control-panel help system
3 Power On/Off button Turns the product on or off
4 Right arrow button and light Moves the cursor to the right or moves the display to the next screen
NOTE: This button illuminates only when the current screen can use this feature.
5 Cancel button and light Clears settings, cancels the current job, or exits the current screen
NOTE: This button illuminates only when the current screen can use this feature
6 Back button and light Returns to the previous screen
NOTE: This button illuminates only when the current screen can use this feature.
7 Left arrow button and light Moves the cursor to the left or moves the display to the previous screen
NOTE: This button illuminates only when the current screen can use this feature.
8 Home button and light Provides access to the Home screen
9 Wireless light Indicates the wireless network is enabled; the light blinks while the product is establishing a
connection to the wireless network
ENWW Control panel overview 7
