Control panel overview

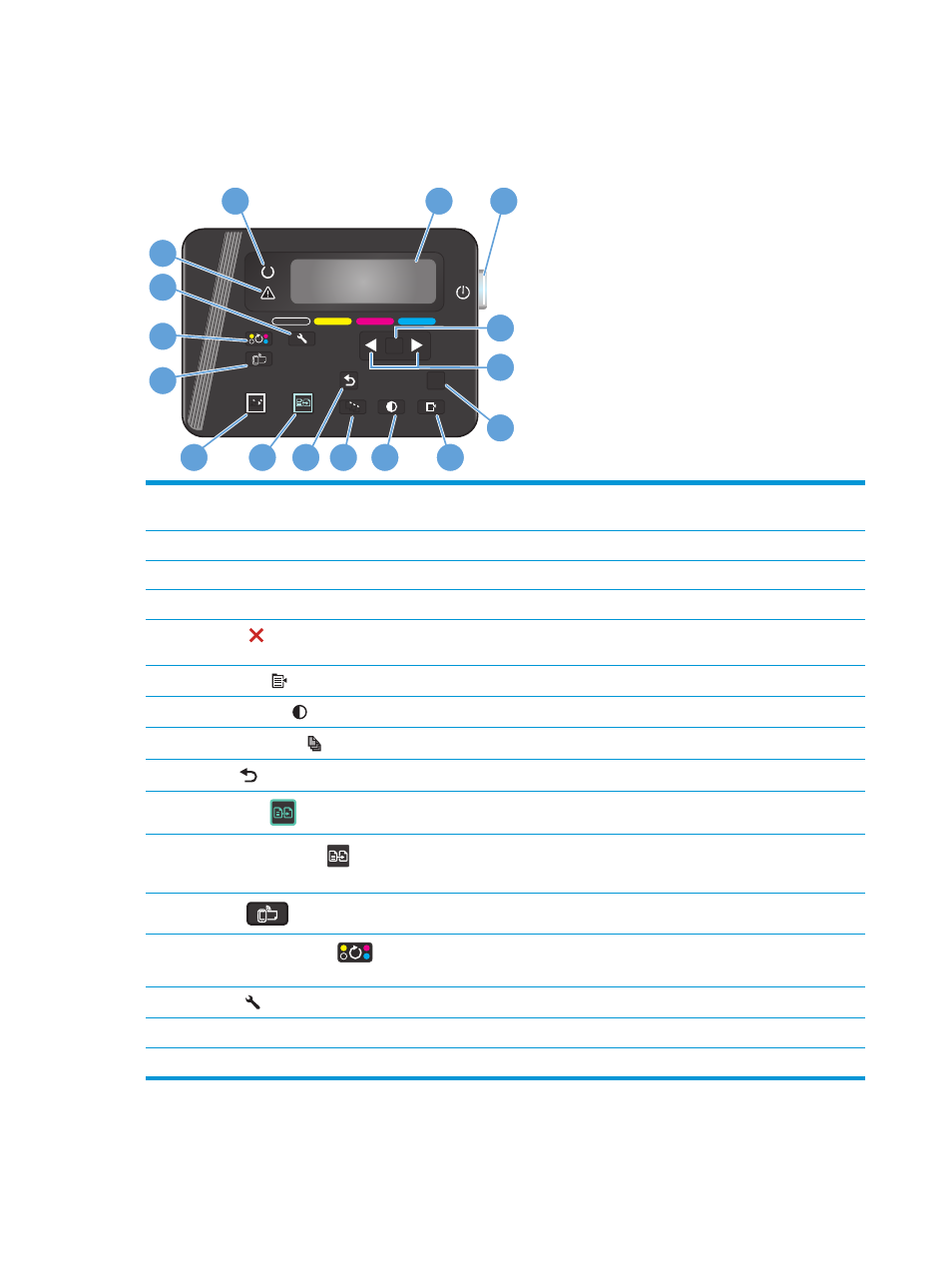

LCD control-panel layout (M176n model)
OK
X
1 2
5
6 7 8 9 10
12
13
14
11
16
15
4
3
1 Control panel display Provides information about the product; use the menus on the display to establish
product settings
2 Power On/Off button Turns the product on or off
3 OK button Acknowledges a setting or confirms an action to proceed
4 Arrow buttons Navigates the menus and adjusts certain settings
5 Cancel button Cancels a print job whenever the attention light is blinking or exits the control panel
menus
6 Copy Menu button Opens the copy settings menu
7 Lighter/Darker button Controls the brightness or darkness of a copy
8 Number of Copies button Sets the number of copies for the current copy job
9 Back button Returns to the previous screen
10
Color copy button
Starts a color copy job
11
Black and white copy
button
Starts a black and white copy job
12
ePrint button
Opens the Web Services menu
13 Rotate toner cartridges
button Rotates the toner cartridge carousel
14 Setup button Opens the Setup menu
15 Attention light Indicates a problem with the product, view the display for a message
16 Ready light Indicates that the product is ready or is processing a job
