HP Scanjet Enterprise Flow 5000 s2 Sheet-feed Scanner - Manual (Page 40)

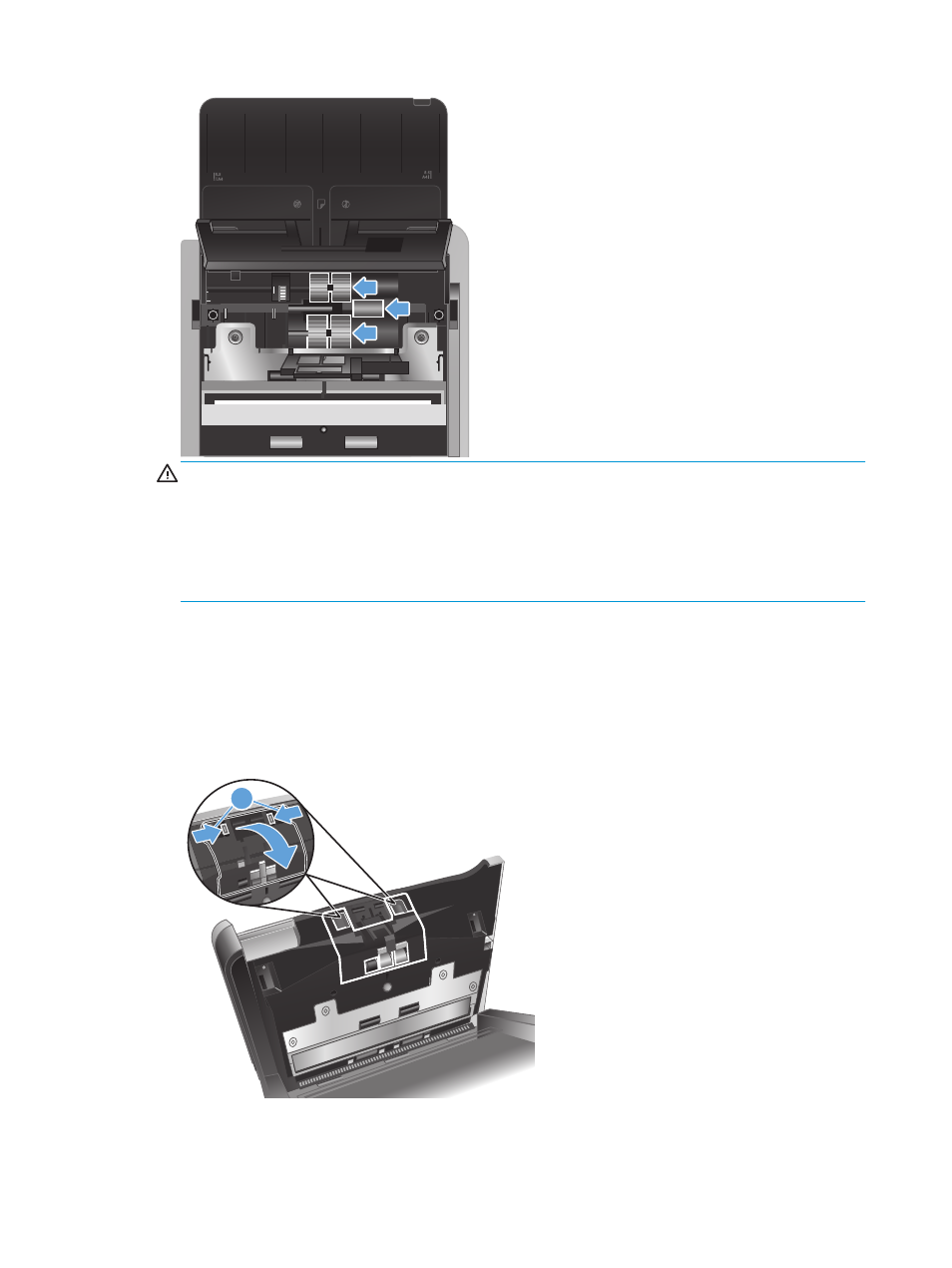

CAUTION: Make sure to insert the new rollers onto their respective pins, as shown in the previous
figure.
● Insert the medium-sized double roller onto the top pin and slide it to the left.
● Insert the single roller onto the center pin and slide it to the left.
● Insert the large double roller onto the bottom pin and slide it to the left.
6. Close the roller covers on the rear of the open document feeder hatch.
a. Close the bottom roller cover on the rear of the hatch, pressing firmly until you hear a click.
b. Close the top roller cover on the rear of the hatch (this cover does not click into place).
7. On the front of the open document feeder, squeeze in on the tabs on the roller cover assembly and pull
gently forward to expose the upper feed rollers.
1
8. Remove the front roller.
34 Chapter 4 Care and maintenance ENWW
