HP LD5535 55-inch LED Digital Signage Display User Manual
Page 28

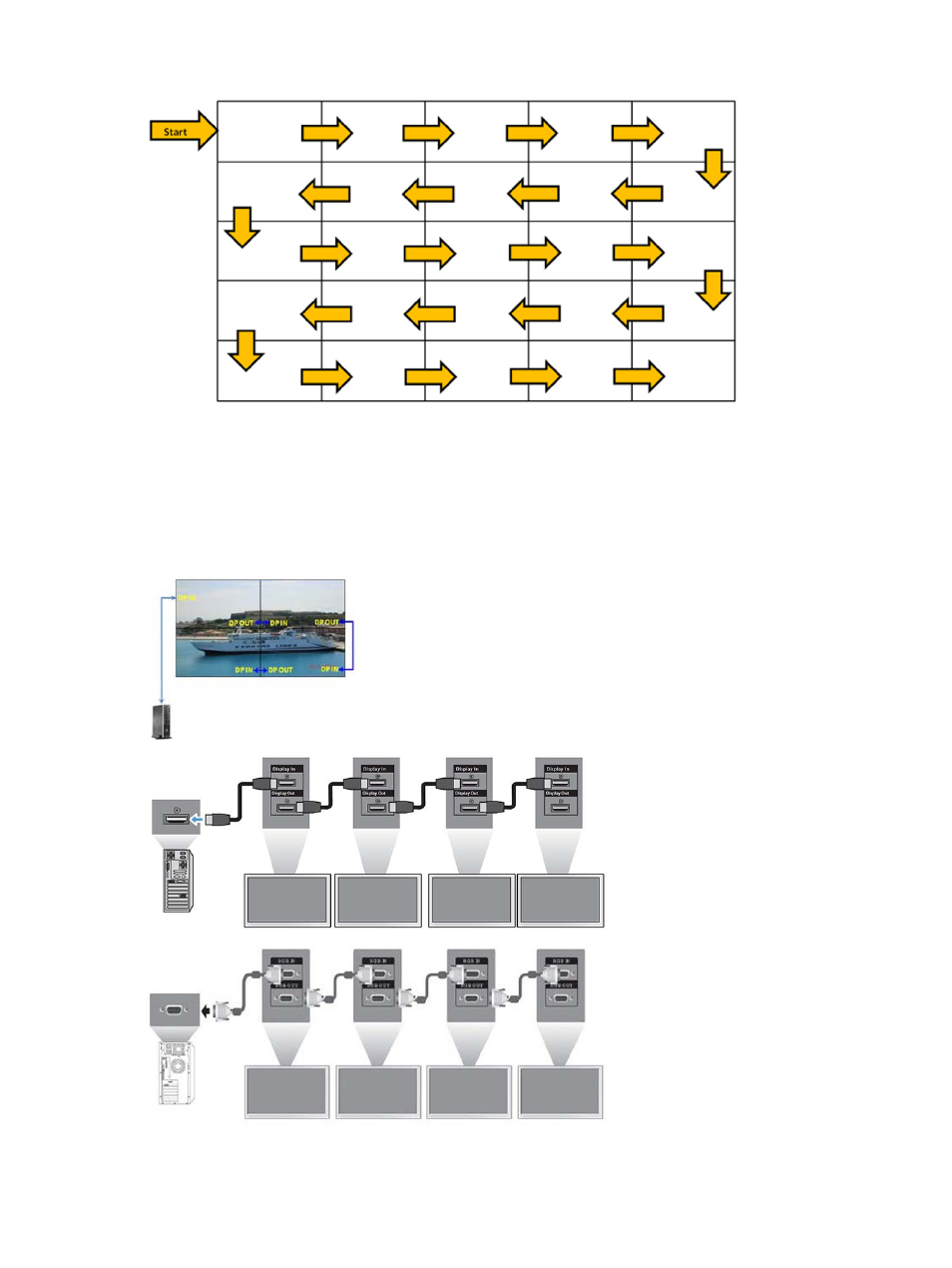

Multiple displays (up to 25 for DP and 6 for RGB/VGA) may be connected to a single media player/computer
using Tile Mode. Multiple displays in Tile Mode are only supported with either DisplayPort or VGA video input
sources. When connecting the multiple displays, the media player/computer is connected to the first display
only with either a DisplayPort or VGA connection. All the subsequent displays are connected to each other via
daisy chain using either the DP OUT connector from one display to the DP IN connector of the next display, or
using the VGA OUT connector from one display to the VGA IN connector of the next display. All displays must
be connected with the same video source, either DisplayPort or VGA. When using Tile mode to connect
multiple displays, only one desktop image may be displayed across all the tiled displays.
18
Chapter 5 Using the display
