RGB/VGA connection

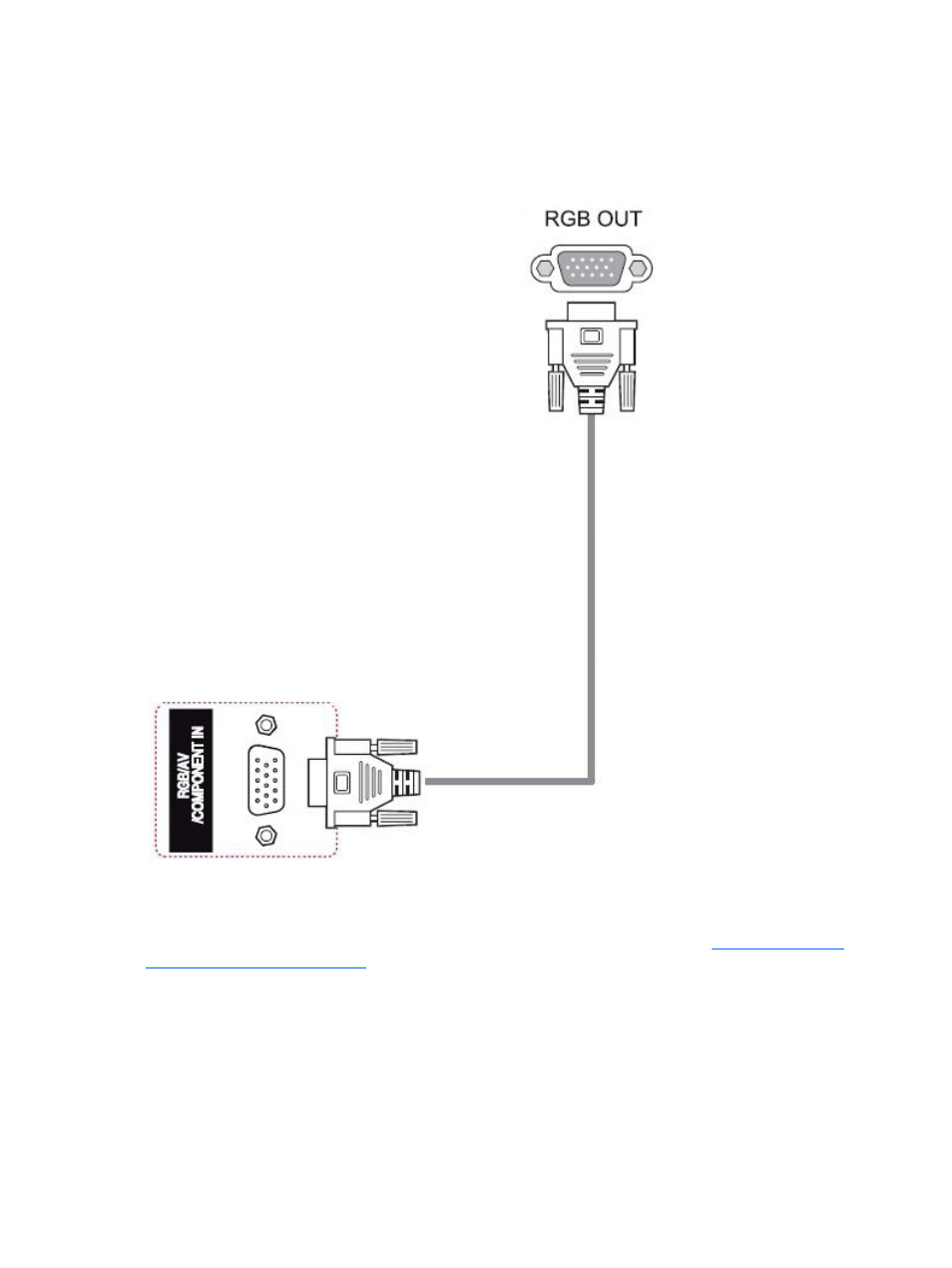

Transmits an analog video signal from your computer to the display. Connect the computer and the display
with a standard RGB/VGA cable as shown in the following illustration. Select RGB/VGA IN connector on
display. The audio in cable is not provided with display.
To connect this display to another display via RGB/VGA (daisy chain), plug one end of a second RGB/VGA cable
into the Output RGB/VGA connector on the display and plug the other end of RGB/VGA cable into the Input
RGB/VGA connector on the next display in chain. RGB/VGA connection can have multiple displays (up to 6)
connected to a single player/computer using the tile mode. For more information, see
displays to one player on page 17
.
