46 HP Auto Path XP: User’s Guide (Windows NT/2000)
Path Performance window
The Path Performance window allows you to create and view performance
charts for selected paths of a device. The charts can be used to evaluate load
balancing policy or preferred paths.
To access the Path Performance window, select the Path Performance
button in the Device Settings window. The Path Performance window
opens separately from the main Auto Path window.
To close the window, select Exit from the File menu.

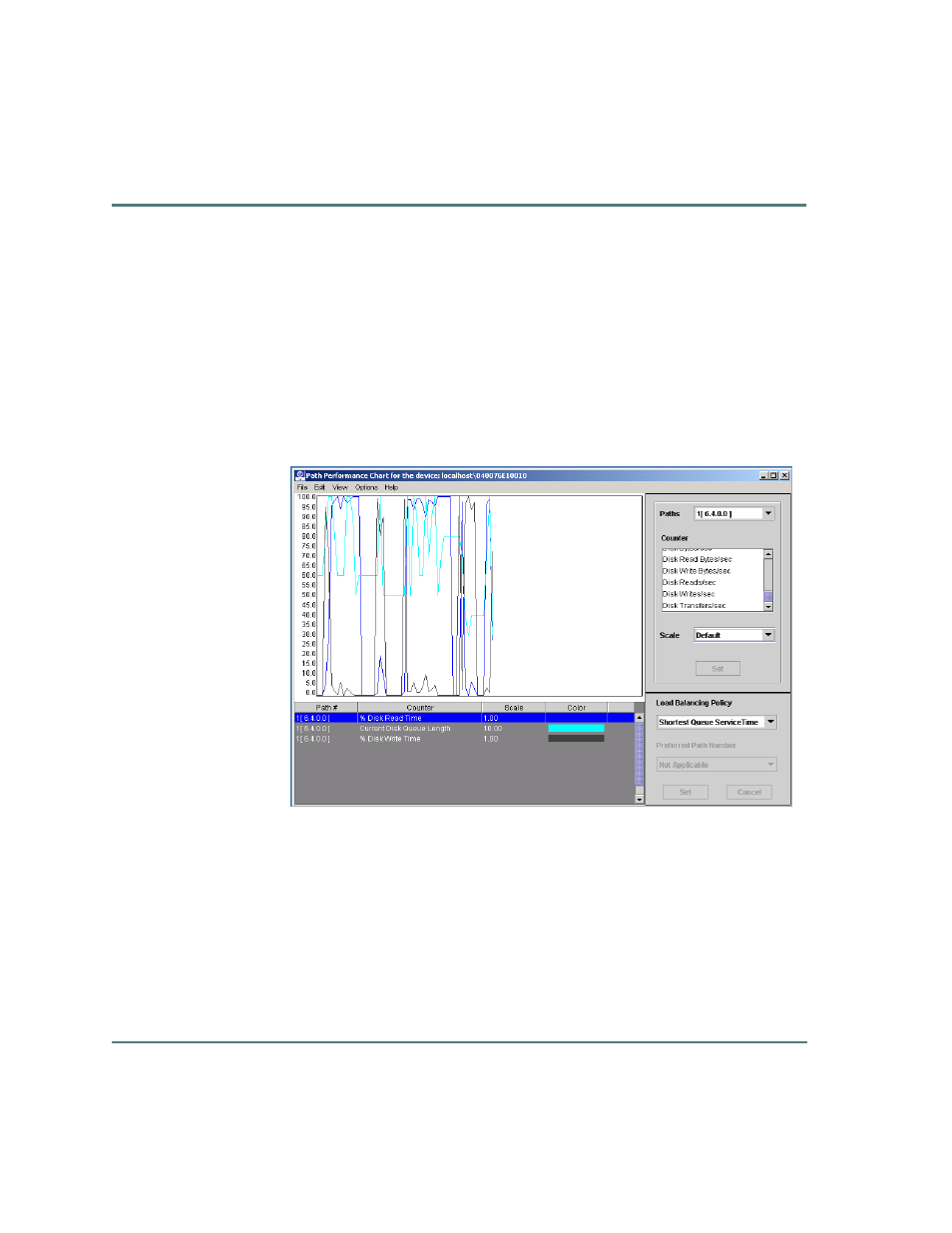

Example
Path performance chart
The chart contains plots based on the selected parameters. The y-axis is the
measure for the selected performance counter; the x-axis represents time.
To change the vertical maximum of the chart, see “Changing settings”
(page 52).
