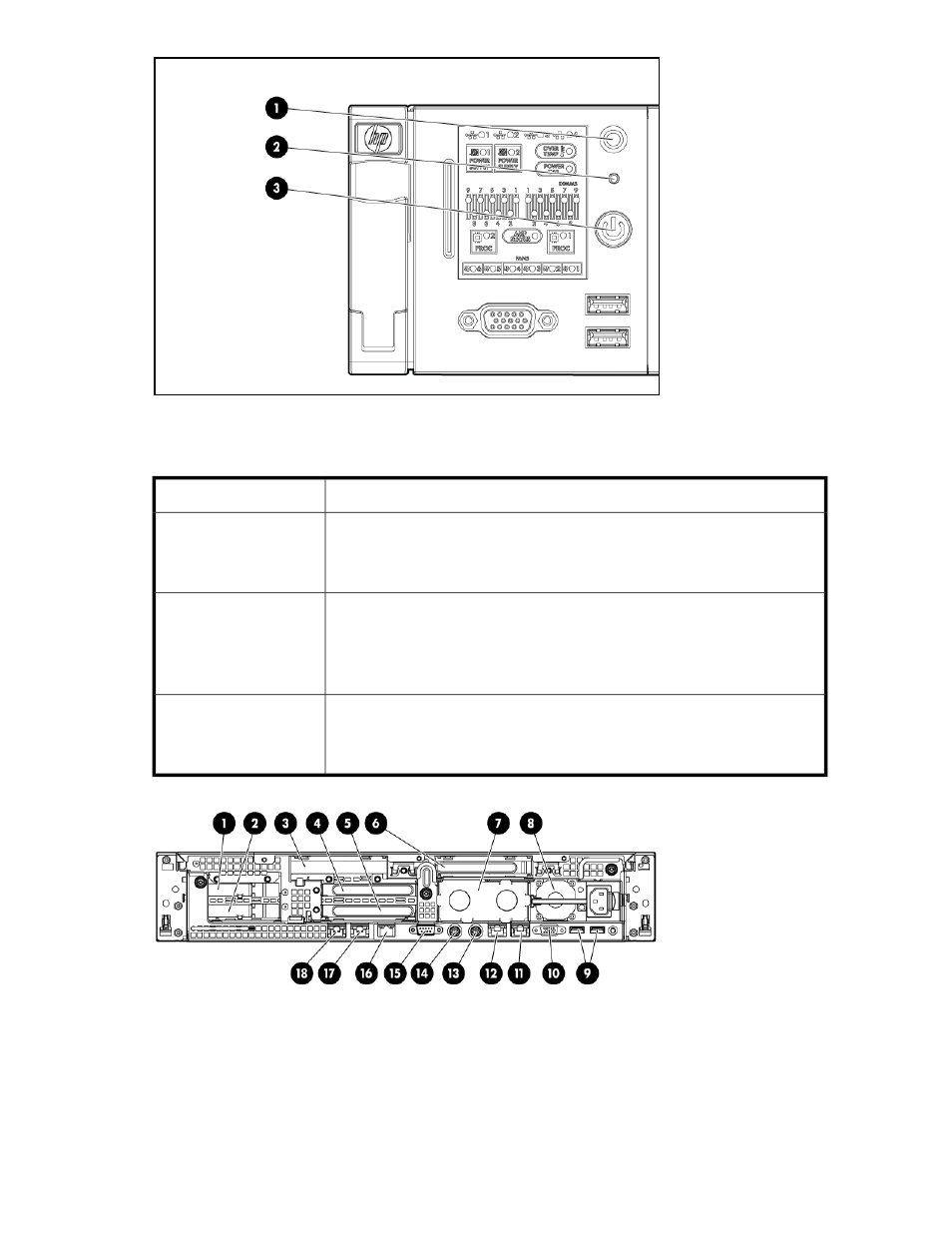

Figure 6 HP X3800 G2 front panel LEDs and buttons

.

Table 4 HP X3800 G2 front panel LED and button descriptions

Status

Item / Description

Blue = Activated
Flashing blue = System being remotely managed
Off = Deactivated

1. UID LED and button

Green = Normal
Amber = System degraded
Red = System critical
To identify components in degraded or critical state, see

2. System health LED

Green = System on
Amber = System in standby, but power is still applied
Off = Power cord not attached or power supply failure

3. Power On/Standby
button and system power
LED

Figure 7 HP X3800 G2 rear panel components

.

1.

PCIe slot 5

X3000 G2 Network Storage System User Guide

25
