2 Storage system component identification
This chapter provides illustrations of the storage system hardware components.
NOTE:
The keyboard, mouse, and monitor are used only for the direct attached method of accessing the
server. They are not provided with your storage system.
HP X3400 G2 Network Storage Gateway hardware
components
The following figures show components and LEDs located on the front and rear panels of the X3400
G2 Network Storage Gateway.

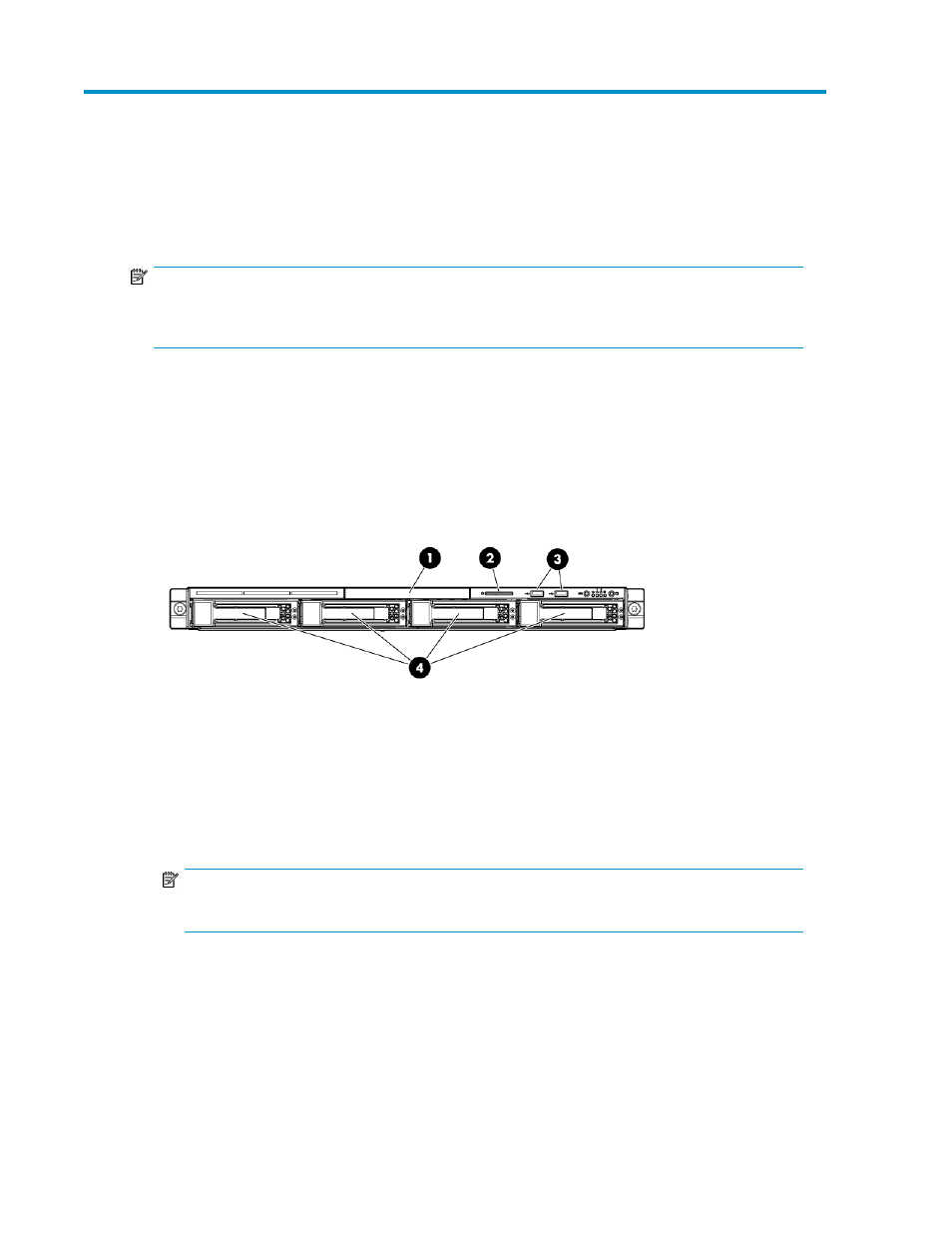

Figure 1 HP X3400 G2 front panel components
.
1.
DVD-RW drive
2.
Serial label pull tab
3.
Two (2) USB ports
4.
Four (4) 3.5” hot-plug SAS/SATA hard drive bays
NOTE:
SAS and SATA hard drive LED combinations
” on page 29 for HDD LED status descriptions.
X3000 G2 Network Storage System User Guide
21
