Chapter 3 Configuring Mass Storage
15
Switch Settings on the Hot Swap Subsystem

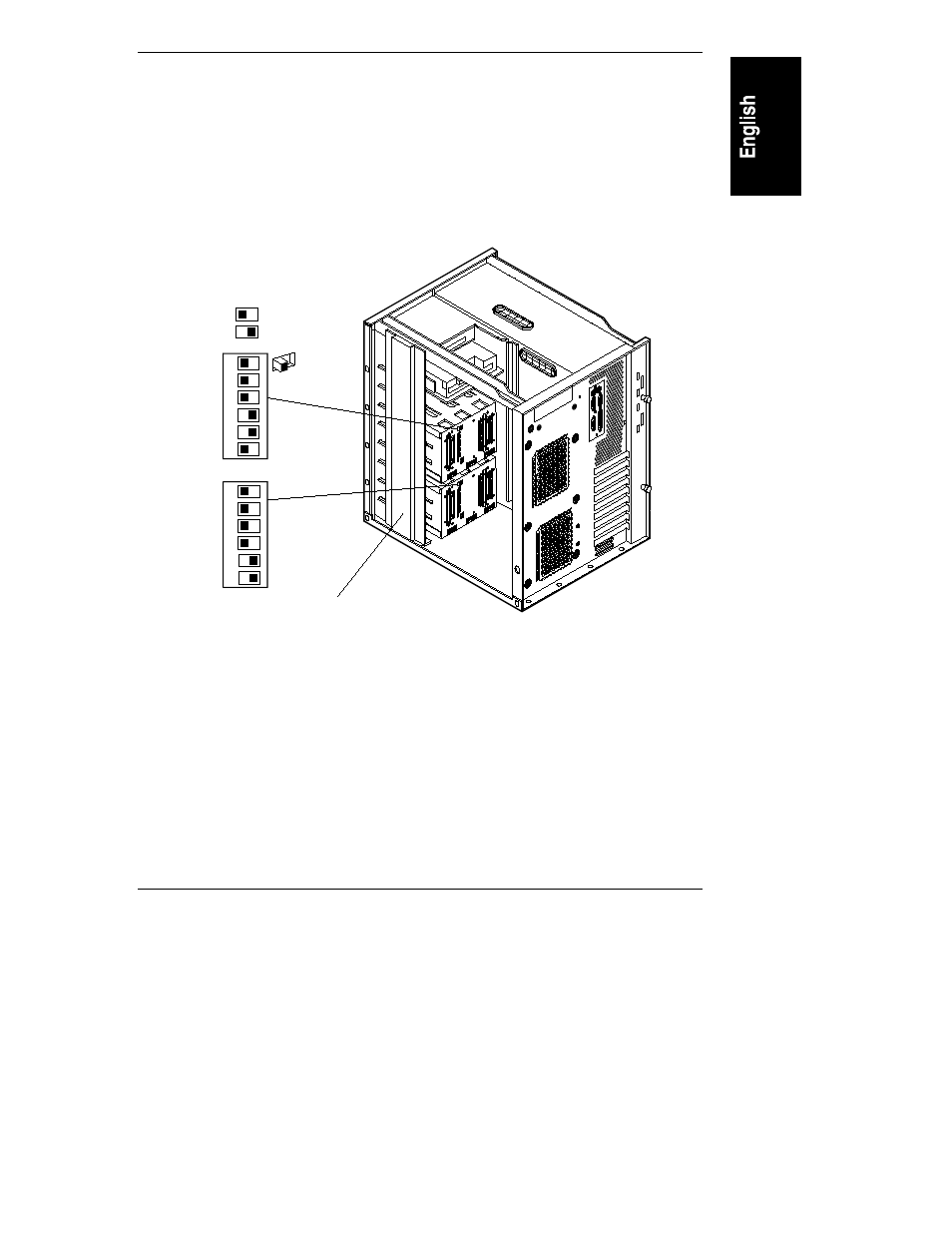

Figure 3-3 shows the switch settings on the rear of the hot swap subsystem cage.
The default settings depend on the model and are described on the Technical
Information Label on the side of the chassis and in Information Assistant.
Switches 3, 4, and 6 determine the SCSI address of the shelf. Switch setting
combinations are listed in the next section.
Off
On
1
2
3
4
5
6
1
2
3
4
5
6
Upper
Cage
Lower
Cage
Technical Information Label
with configuration information
Figure 3-3. Hot Swap Subsystem Switch Location
