13
3 Configuring Mass Storage
The HP NetServer LH Pro chassis contains three horizontal mass storage shelves
and a hot swap subsystem with six hot swap shelves. There are also external
connector openings for connection to exterior mass storage subsystems. The
NetServer LH Pro can be configured to accommodate a number of different
configurations.
NOTE For cabling configuration information, see the Technical
Information Label on the mass storage side of the chassis
and Information Assistant on the HP NetServer Navigator
CD-ROM.
Mass Storage Indicator Lights
The front of the NetServer has a number of lights that indicate the status of the
mass storage devices and controller boards as shown in Figure 3-1.
Flexible disk drive activity light
Yellow or Green = disk drive active
CD-ROM drive activity light
Green = power on
Yellow = drive active
Blinking = drawer opening or closing
Hard disk status light
Green = drive powered on
Flash yellow = drive error
All drives flash simultaneously
Flash yellow = temperature warning
Flash red = temperature emergency
Hard disk activity light
Green = drive active
Hard disk activity light 1
Yellow = Embedded SCSI A or IDE bus active
Hard disk activity light 2
Yellow = Embedded SCSI B bus active

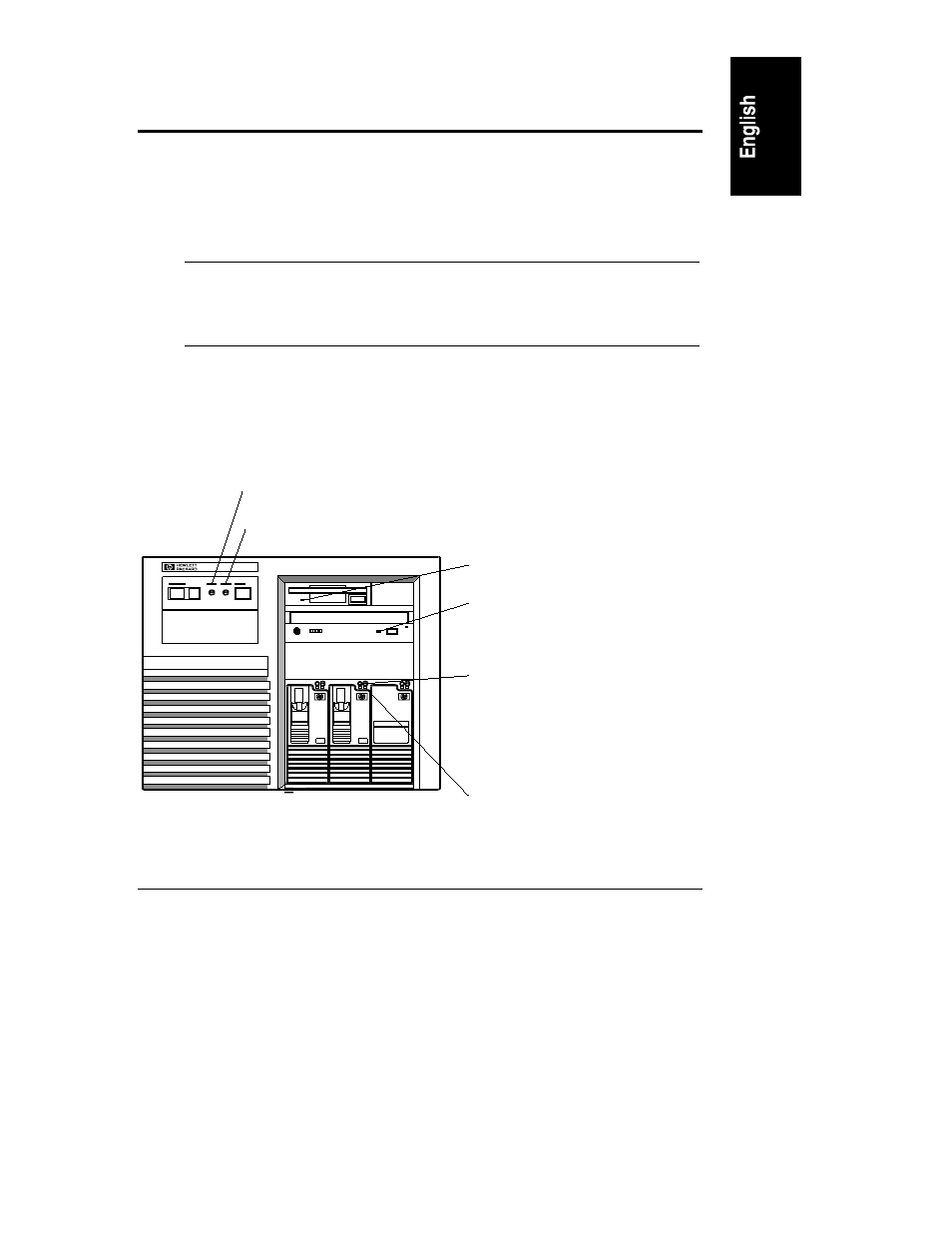

Figure 3-1. Mass Storage Indicator Lights
