Chapter 3 Configuring Mass Storage
14
Shelf Location
The HP NetServer has three horizontal upper shelves and 6 hot swap
shelves. The shelf number is not the SCSI address. The SCSI address is
set by the switches on the devices in the upper horizontal shelves and the
switches on the rear of the hot swap subsystem cages. Figure 3-2 shows the
shelf numbers.
Shelf 1
Flexible disk drive
Shelf 2
CD-ROM drive
Shelf 3
Hot swap shelf numbers
are located on bezel above
each hot swap shelf
Hot swap shelf 1
Hot swap shelf 2
Hot swap shelf 3
Hot swap shelf 4
Hot swap shelf 5
Hot swap shelf 6

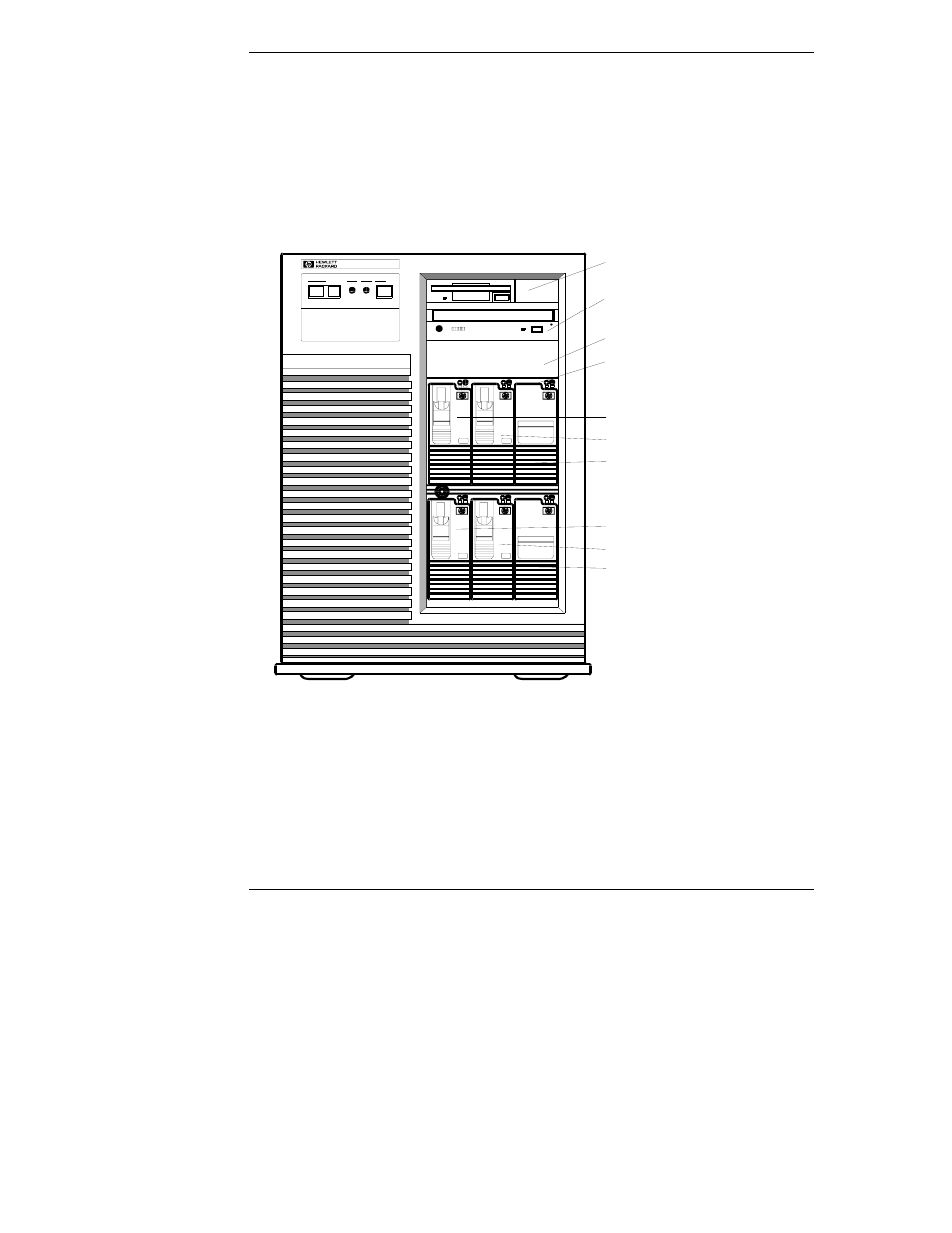

Figure 3-2. Mass Storage Shelf Location
