• A setting value is incorrect or omitted.
• The setting range is incorrect. The correct ranges are as follows:
CU:00 - FE
LDEV:00 - FF
•
Level 2 check:
The current settings are compared to the imported settings and checked for logical consistency.
Note that certain errors can only be detected by the third check.
When you import a spreadsheet with no errors detected, the window displays Ready above the error
information list, and the Apply button becomes available.

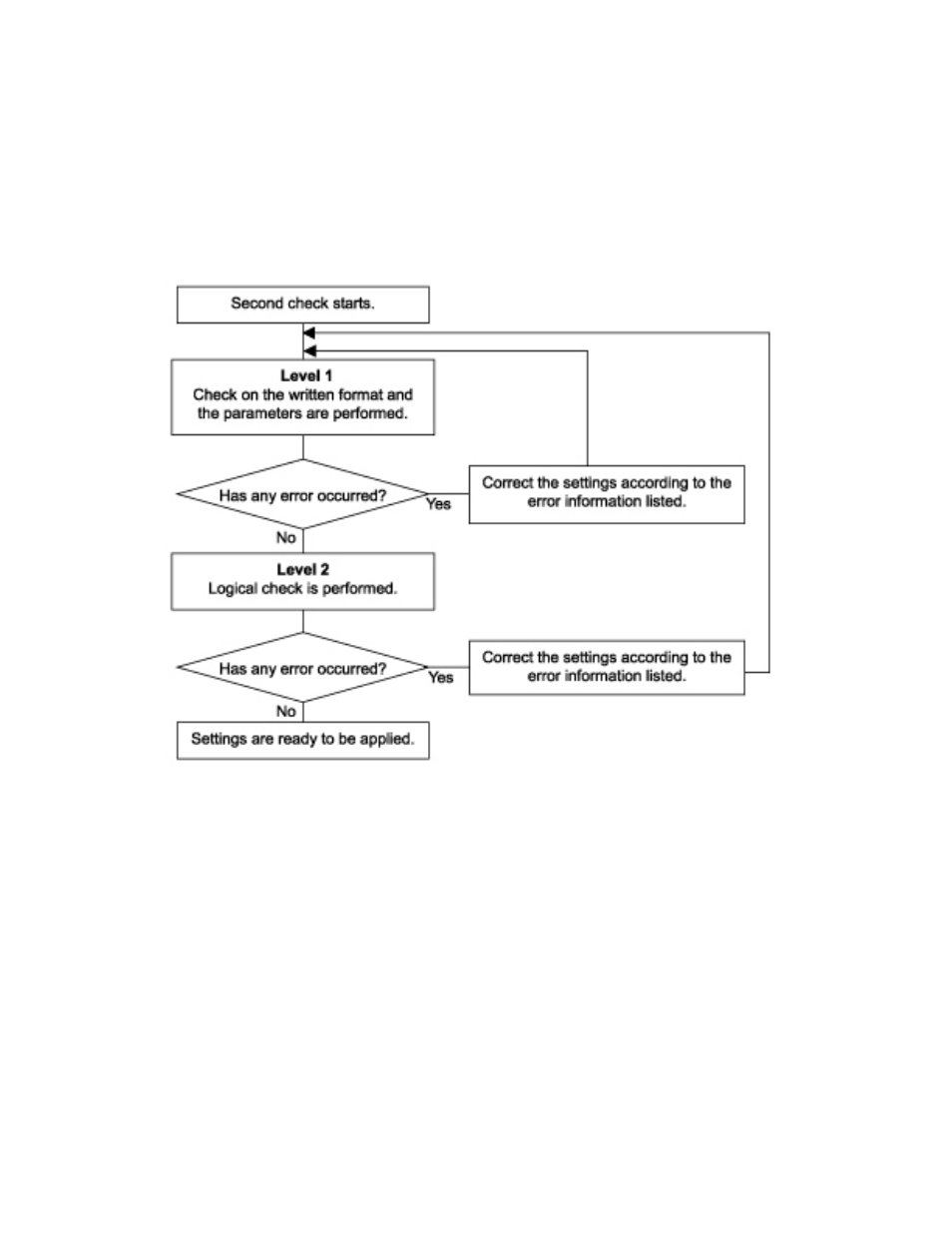

Figure 11 Second Error Check Flow Chart
Third Error Check
The third check is performed for each LDEV after the Apply button is selected. If an error occurs in
applying settings for an LDEV, an error message is displayed but the rest of apply settings is continued.
The third check detects errors when volumes (LDEVs) are one of the following:
•
Undefined logical volumes (LDEVs that are not mapped to physical devices)
•
Volume usable by open-systems (except multiplatform volumes)
•
Journal volumes
•
HP StorageWorks XP for FlashCopy Mirroring Software Version 2 volumes
•
System disk volumes
•
Logical volumes that are configured as command devices
