HP XP Array Manager Software - Manual (Page 26)

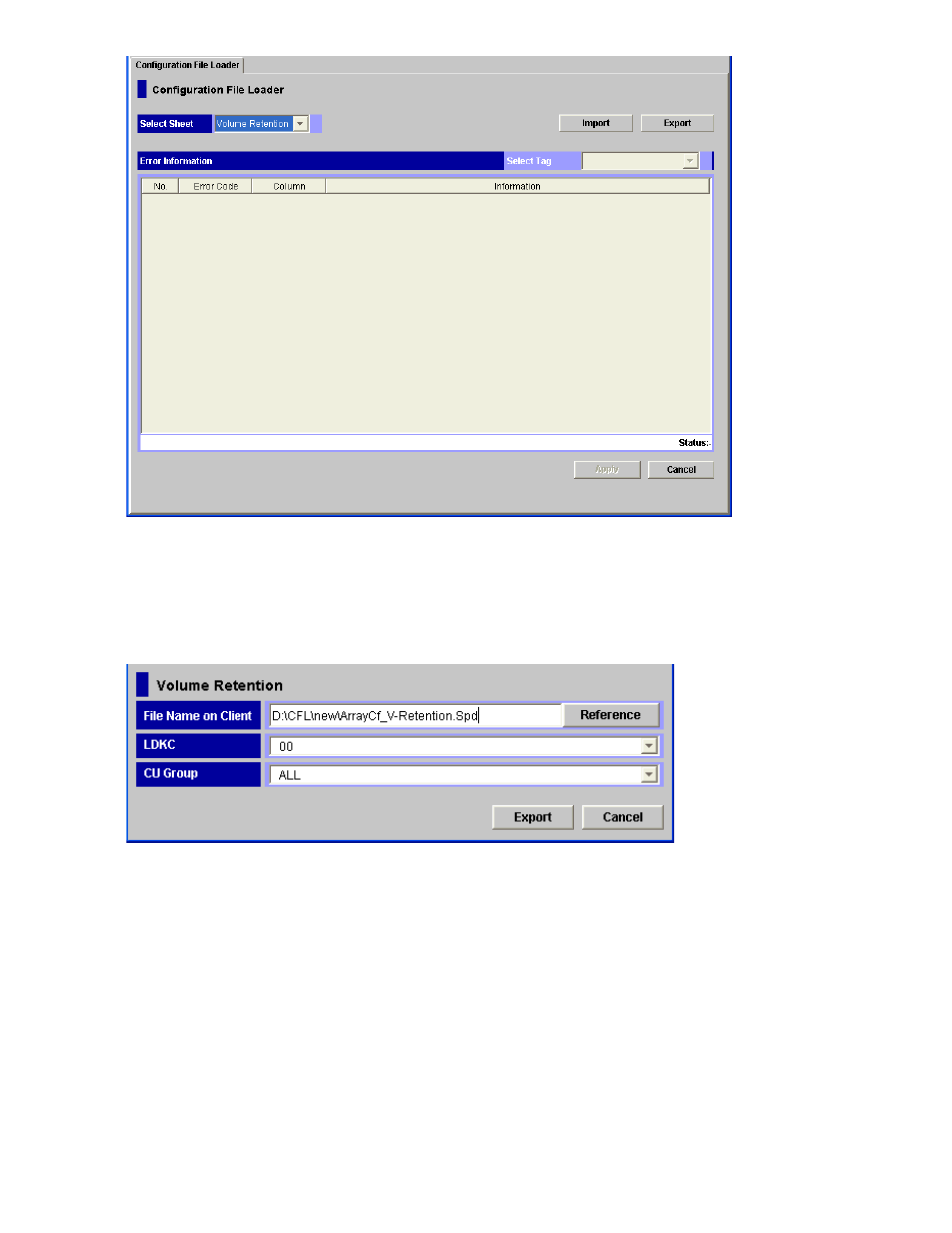

Figure 9 Configuration File Loader Window
Volume Retention Dialog Box
When you want to export access attributes to a spreadsheet file, use the Volume Retention dialog
box.
Figure 10 The Volume Retention Dialog Box
The Volume Retention dialog box has the following settings:
• File Name On Client: This text box enables you to specify where to save a spreadsheet file. When
you click Reference, the dialog box to specify a folder and file name appears.
• LDKC: This drop-down list enables you to select the LDKC which you want to export to a spreadsheet
file. You can select one of the following items:
• 00
• 01
• CU Group: This drop-down list enables you to select the CU which you want to export to a
spreadsheet file. You can select one of the following items:
Performing Volume Retention Manager Operations 26
