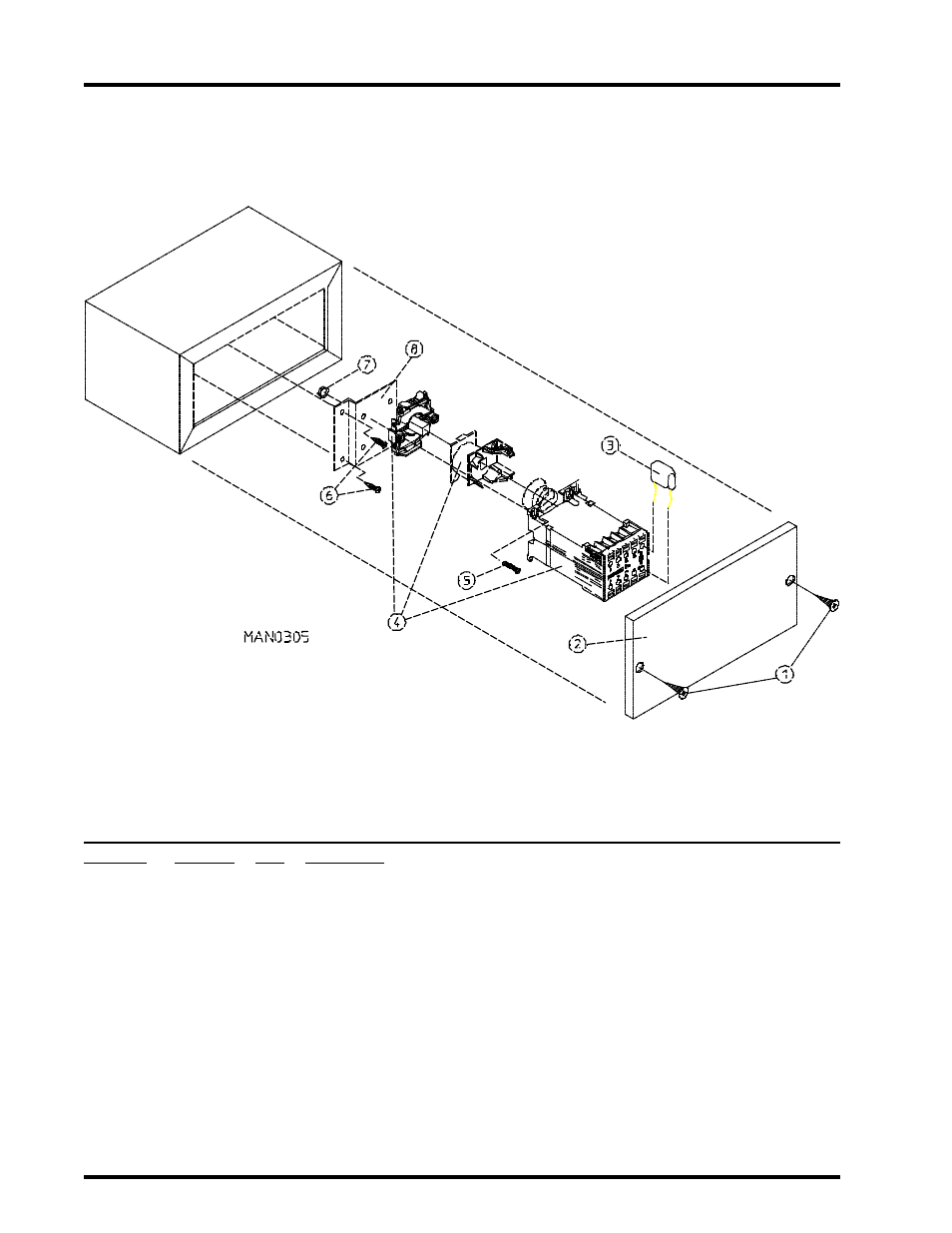

Phase (3ø) motor, electric relay panel assembly, Telemecanique – ADC UD-50 User Manual
Page 52
50
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781
Illus. No.
Part No.
Qty.
Description
1
150309
6
#10-16 x 1/2” Hex Head TEK Crimptite Screw
2
311913
1
Service Box Cover Plate (9-7/8” x 4-3/8”)
311921
1
Service Box Cover Plate (9-7/8” x 5-3/4”)
3*
137015
1
Arc Suppressor (A.S.) - capacitor - ONLY
4
132425
1
Impellor Contactor
(208/230/240 Volt - 50/60 Hz)
132427
1
Impellor Contactor Replacement Coil
(208/230/240 Volt - 50/60 Hz)
5
151000
4
#8-32 x 1/2” Phillips Round Head Machine Screw
6
150300
2
#10 x 1/2” Hex Washer TEK Screw
7
151001
4
#8-32 Pal Nut
8
311920
1
3-Phase (3ø) Non-Reversing Contactor Mounting Bracket
* For use on 3-phase (3ø) non-reversing microprocessor controlled dryer models ONLY.
3-Phase (3ø) Motor, Electric Relay Panel Assembly
Telemecanique
