Dual timer reversing control assembly, Struthers-dunn – ADC UD-50 User Manual
Page 51
49
Telephone: (508) 678-9000
Fax: (508) 678-9447
Illus. No.
Part No.
Qty.
Description
1
150301
6
#8-18 x 7/16” Phillips Pan Head TEK Screw
2
322808
1
Relay Box Cover Plate ONLY
3
150108
2
#8-32 x 1/2” Phillips Pan Head Machine Screw
4
132200
1
Reversing Timer - 60 Hz ONLY
132202
1
Reversing Timer - 50 Hz ONLY
5
151001
2
#8-32 Pal Nut
6
153002
2
5/16” Lock Washer
7
152004
2
5/16-18 Hex Nut
8
150108
2
#8-32 x 1/2” Pan Head Machine Screw
9
132404
1
Reversing Contactor - 208 Volt
132401
1
Reversing Contactor - 220/230 Volt
10
132416
2
Reversing Contactor Replacement Coil
(208 Volt - 60 Hz)
132415
2
Reversing Contactor Replacement Coil
(220/230 Volt - 60 Hz)
132407
2
Reversing Contactor Replacement Coil
(240 Volt - 50 Hz)
11
322807
1
Contactor Mounting Panel ONLY
12
151001
2
#8-32 Pal Nut

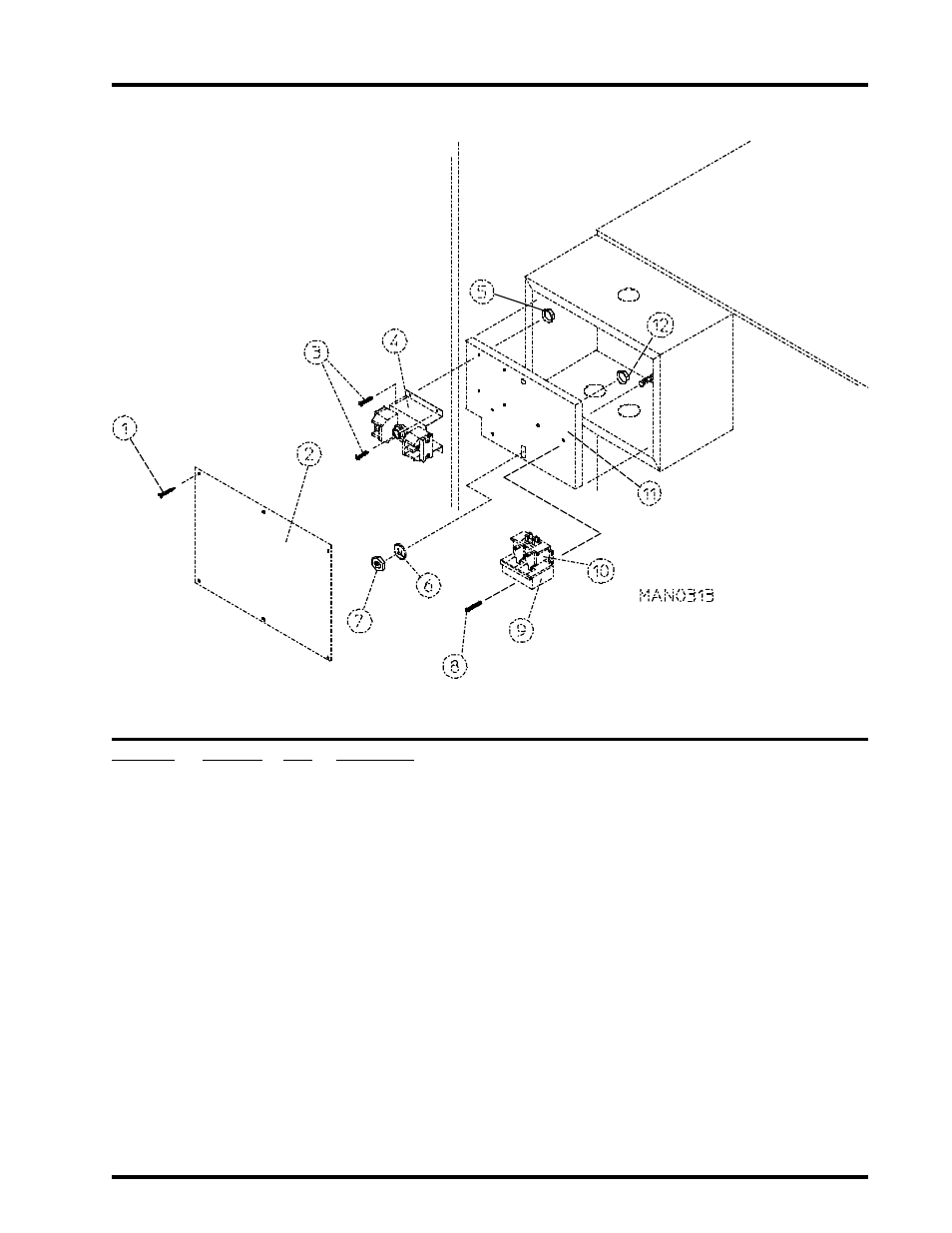

Dual Timer Reversing Control Assembly
Struthers-Dunn
