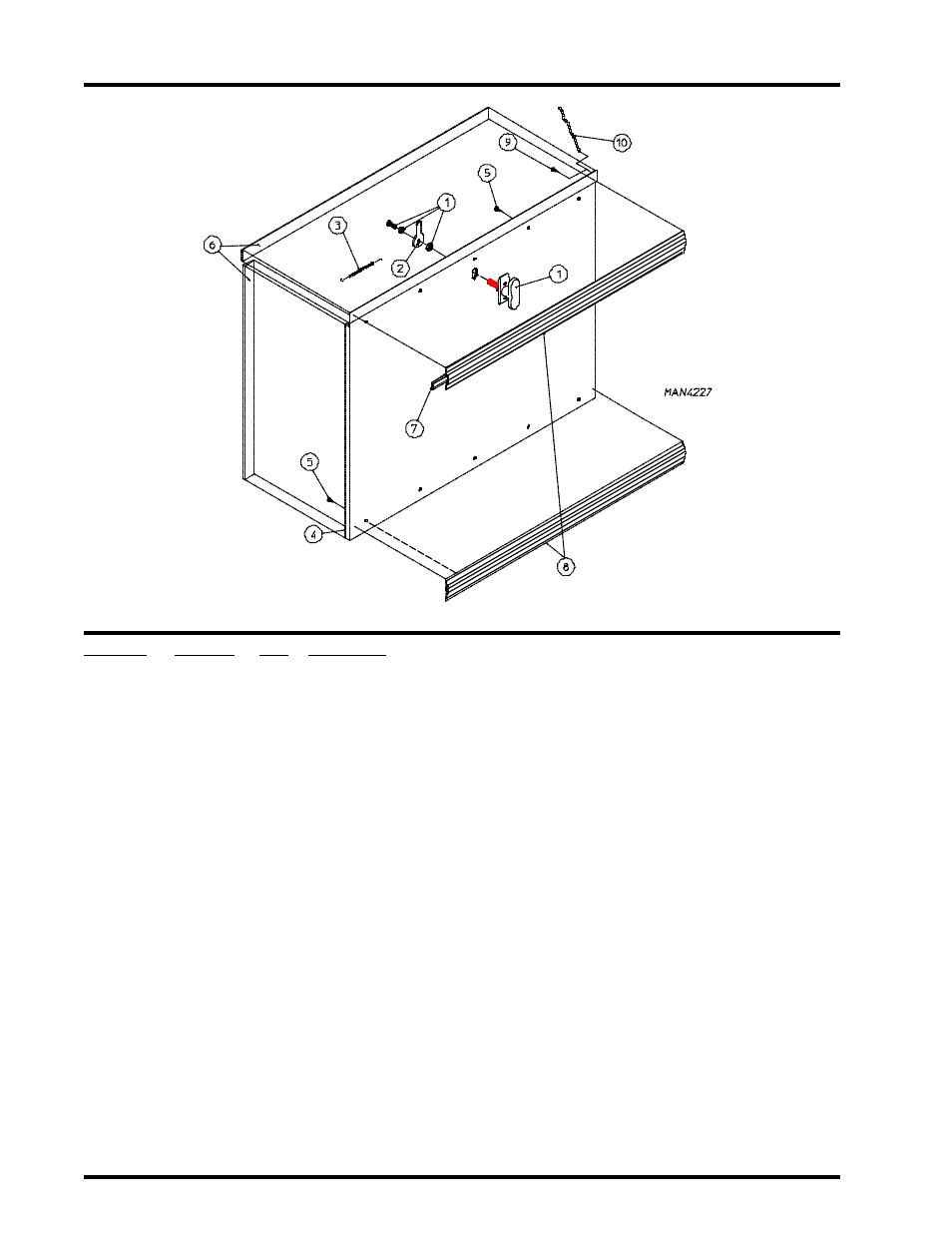

Drop Lint Door Assembly
Illus. No. Part No. Qty. Description
1 160003 1 Dummy Lock ONLY
160104 1 MK-100 Key ONLY
800150 1 Knob Latch Kit Assembly ... Not Illustrated
160200 1 Knob Latch with 2 Screws
2 160008 1 Lock Cam ONLY
160009 1 Knob Latch Adjustable Cam ONLY
150425 1 #12-24 x 3/8” Phillips Round Head Machine Screw
(screw for knob latch adjustable cam)
3 157000 1 Drop Lint Door Spring
4 800217* 1 Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
800235* 1 Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
800241 1 Stainless Steel Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
5 150201 10 #10-32 x 1/4” Phillips Round Head Machine Screw
6 117604 7 Neoprene Sponge Tape (sold by the foot)
7 102307 3 Trim Bumper Gasket (sold by the foot)
8 180212 2 Trim/Kick Plate (38-1/4” length)
9 150419 2 #6 x 1/2” Tamperproof TEK Screw
10 108120 1 Chain for Drop Lint Door (10-1/2” length)
--- 150418 1 Tamperproof Screw Hand Driver
* Specify color when ordering.
