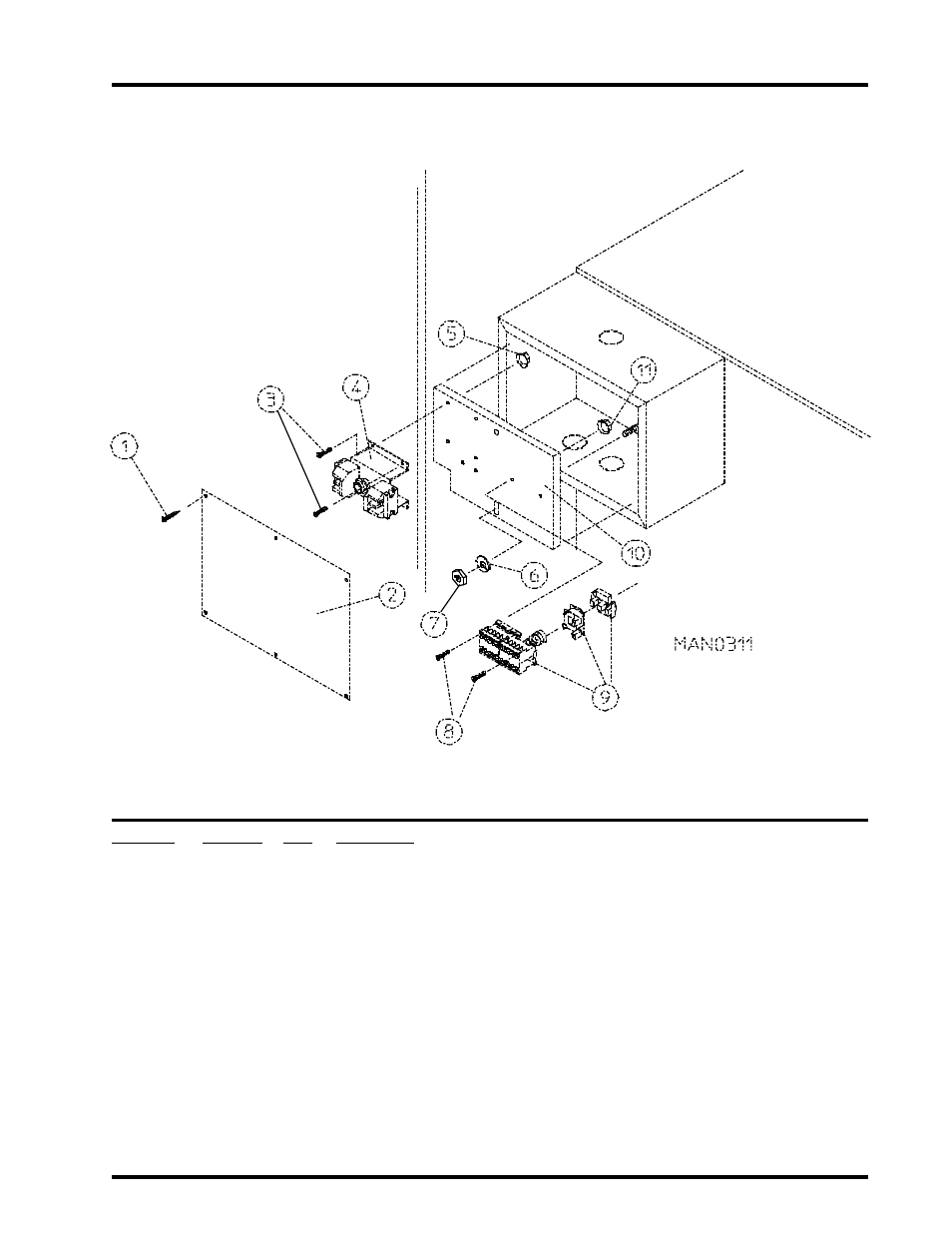

Dual timer reversing control assembly, Telemecanique – ADC UD-50 User Manual
Page 49
47
Telephone: (508) 678-9000
Fax: (508) 678-9447
Illus. No.
Part No.
Qty.
Description
1
150301
6
#8-18 x 7/16” Phillips Pan Head TEK Screw
2
322808
1
Relay Box Cover Plate ONLY
3
150108
4
#8-32 x 1/2” Pan Head Machine Screw
4
132200
1
Reversing Timer - 60 Hz ONLY
132202
1
Reversing Timer - 50 Hz ONLY
5
151001
2
#8-32 Pal Nut
6
153002
2
5/16” Lock Washer
7
152004
2
5/16-18 Hex Nut
8
150108
4
#8-32 x 1/2” Phillips Pan Head Machine Screw
9
132426
1
Reversing Contactor
(208/230/240 Volt - 50/60 Hz)
132427
2
Reversing Contactor Replacement Coil
(208/230/240 Volt - 50/60 Hz)
10
322807
1
Contactor Mounting Panel ONLY
11
151001
4
#8-32 Pal Nut
Dual Timer Reversing Control Assembly
Telemecanique
