Page 45: Inserting a cartridge

background image

Loading a cartridge

1.

Lift the cartridge door and insert the cartridge into the slot in the front of the drive with the white
arrow uppermost and facing the drive door.

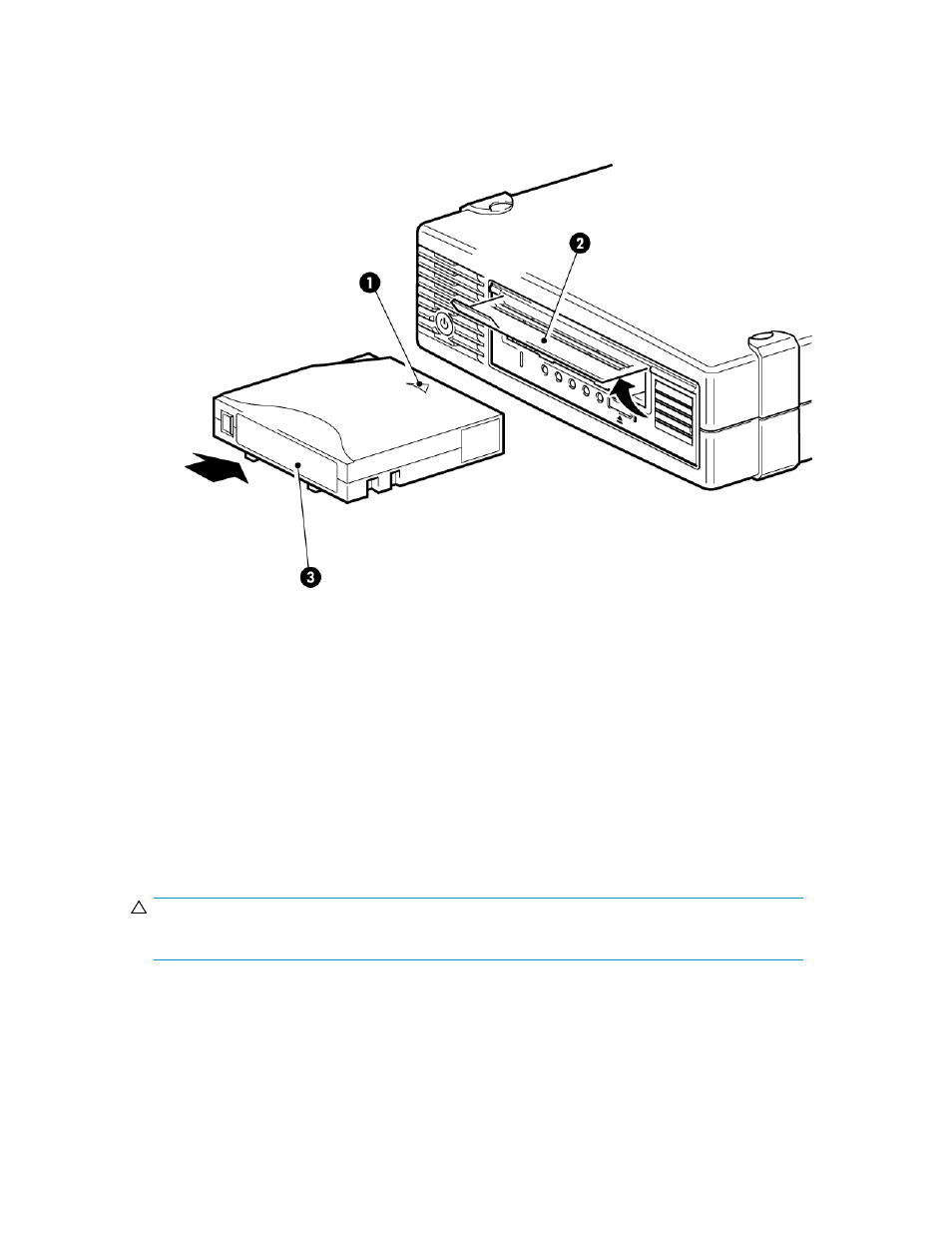

2. Label area

1. Arrow indicates leading direction

4. Ready light

3. Cartridge door

Figure 28 Inserting a cartridge

.

2.

Apply gentle pressure until the drive takes the cartridge and loads it. (See

Inserting a cartridge

” on page 45.)

3.

The Ready light flashes green while the drive performs its load sequence. When the cartridge is
loaded, the Ready light shows steady green.

Unloading a cartridge

CAUTION:

Never try to remove a cartridge before it is fully ejected.

Ultrium Half-Height SAS Tape Drives

45
