Chapter 6: Modulation and Envelopes
166 A NDROMEDA A6 R EFERENCE M ANUAL
EXAMPLE 2: BI-POLAR with OFFSET plus LEVEL Changes
DELAY Time OFF (no Delay stage)
ATTACK Time 4.82 S
Attack SHAPE LOG 1
D1TIME 2.34 S
Decay1 SHAPE EXP 2
D2LEVL Set to 79 but is effectively 60 after adjusting for Offset
D2TIME 4.50 S
Decay2 SHAPE EXP 1
SUSTAIN Level 23
R1TIME 2.92 S
Release1 SHAPE LINEAR
R2LEVL Set to 72 but is effectively 50 after adjusting for Offset
R2TIME 3.92 S
Release2 SHAPE LOG 1
Envelope OFFSET -35
Envelope LEVEL 100
Envelope POLAR POSWAV

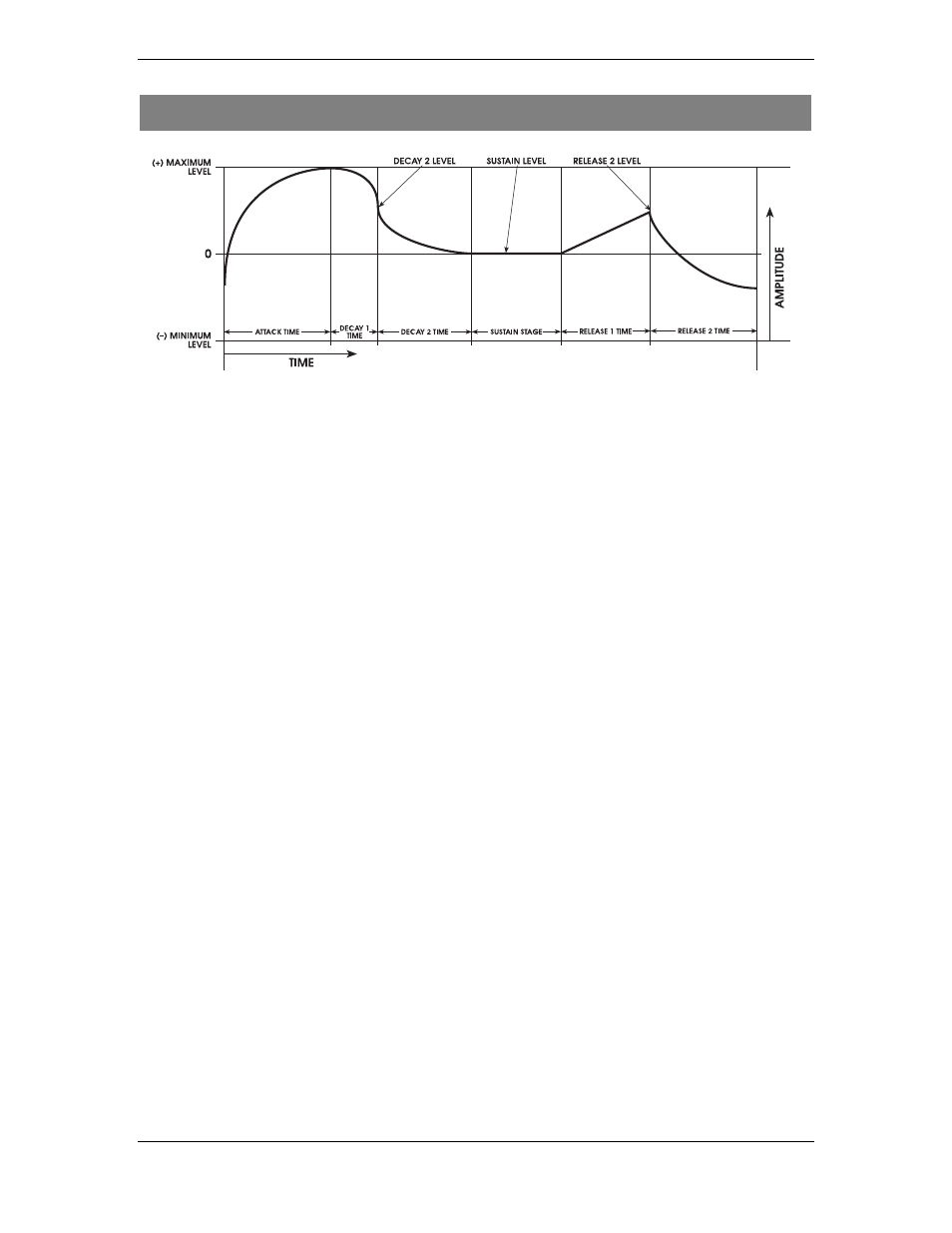

This example shows the relationship between the Offset and the envelope’s Attack
and Release2 stages. Notice that the envelope will always begin from the “0-plus-
Offset” level. Likewise, Release 2 will always end at the same level where the
envelope started. In this example, Offset is -35, shifting the envelope downward.
Thus the envelope starts below 0 and rises from there during Attack.
This example also shows how the envelope’s Level is used to increase the amplitude
of the envelope when Offset is used. Since the Offset is set to
-35 and the envelope
Level is set to 100 , the Attack Stage actually reaches its maximum point at +65 , and
no stages above the 0 line can exceed that value.
The stage Levels do not behave exactly as they appear in the illustration. This is
because the envelope Level is set to 100 and the Offset to -35 . For example, Decay 2
Level is set to 79 (more than 3/4 between 0 and the maximum). But because it is
Offset by -35 and amplified by 100 the the resulting level (internally calculated) is
about 60 where it appears in the illustration.
