Chapter 5: Oscillators and Filters
A NDROMEDA A6 R EFERENCE M ANUAL 125

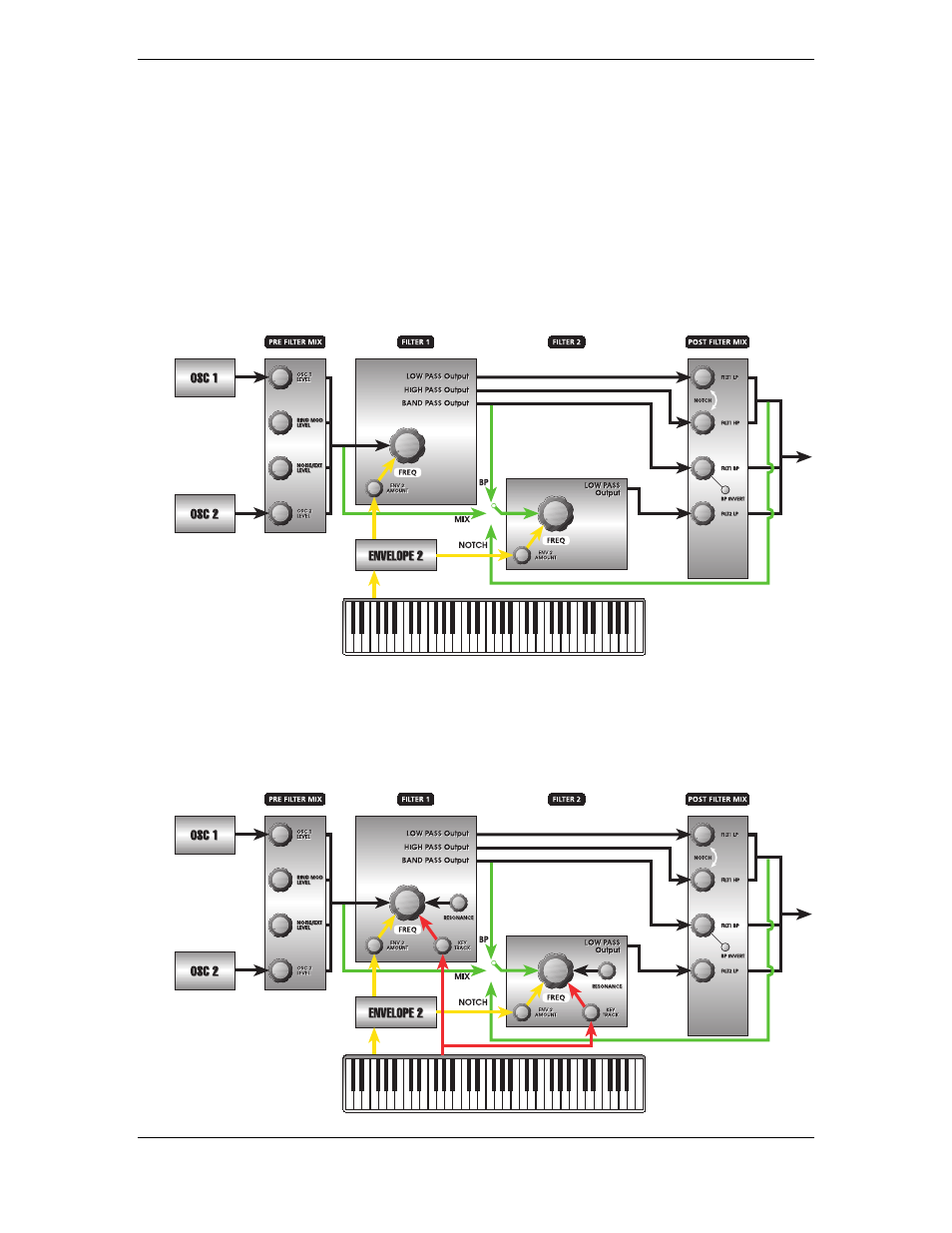

does NOT have to be up to feed Filter 2. In fact, the band-pass output of
Filter 1 can still feed the VCA directly if you turn the pot up.
To complete our signal path, the output of FILTER 2 is then routed to the POST
FILTER MIX where its level is set and routed to the VOICE MIX section for final
output.
5. Envelope shaping is accomplished by ENV 2 (FILTER) . Notice that the A6’s front
panel contains three MOD buttons on each filter (not depicted here) that permit
you to route three additional modulations to the filters. We’ll cover these
other modulation paths in
Chapter 9: Custom Modulations .
6. RESONANCE and KEY TRACK are introduced into the signal flow.
