Chapter 6: Modulation and Envelopes
152 A NDROMEDA A6 R EFERENCE M ANUAL
SUSREL, EXAMPLE 2

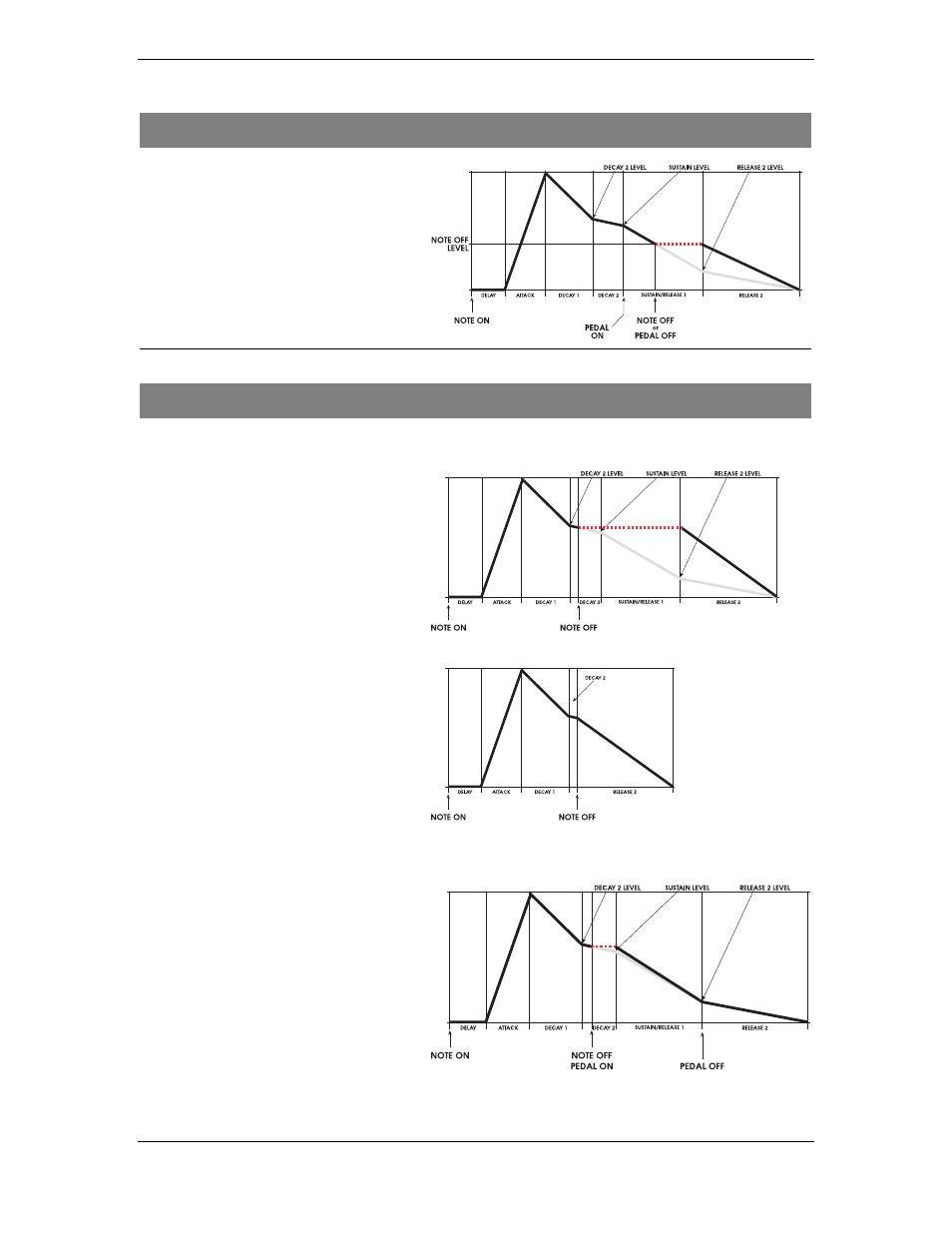

This is a SUSREL envelope with the
Note Off occurring during the SUSREL
stage, but before the RELEASE 2 stage
was reached.
The key concept to note here is that a
Note Off or Pedal Off occurring
during the
SUSREL stage causes the
envelope to jump directly to the
RELEASE 2 stage.
SUSREL, EXAMPLE 3
EXAMPLE 3a
This is a SUSREL envelope with the
Note Off occurring during the DECAY 2
stage. The envelope jumps directly to
the
RELEASE 2 stage and proceeds to 0 .
The gray lines in the illustration above
indicate the envelope stages that are
bypassed when a Note Off occurs
before the DECAY 2 stage is complete.
After removing the bypassed stages
from the graph, the envelope shape
looks more like the one here on the
right.
EXAMPLE 3b
If a Sustain Pedal On occurs during
DECAY 2 , the envelope will jump to the
SUSREL stage and begin the transition
into the RELEASE 2 stage.
