Disassembling the main unit, Removing the keyboard removing the dimm – Acer 330 User Manual
Page 75
Chapter 3
75

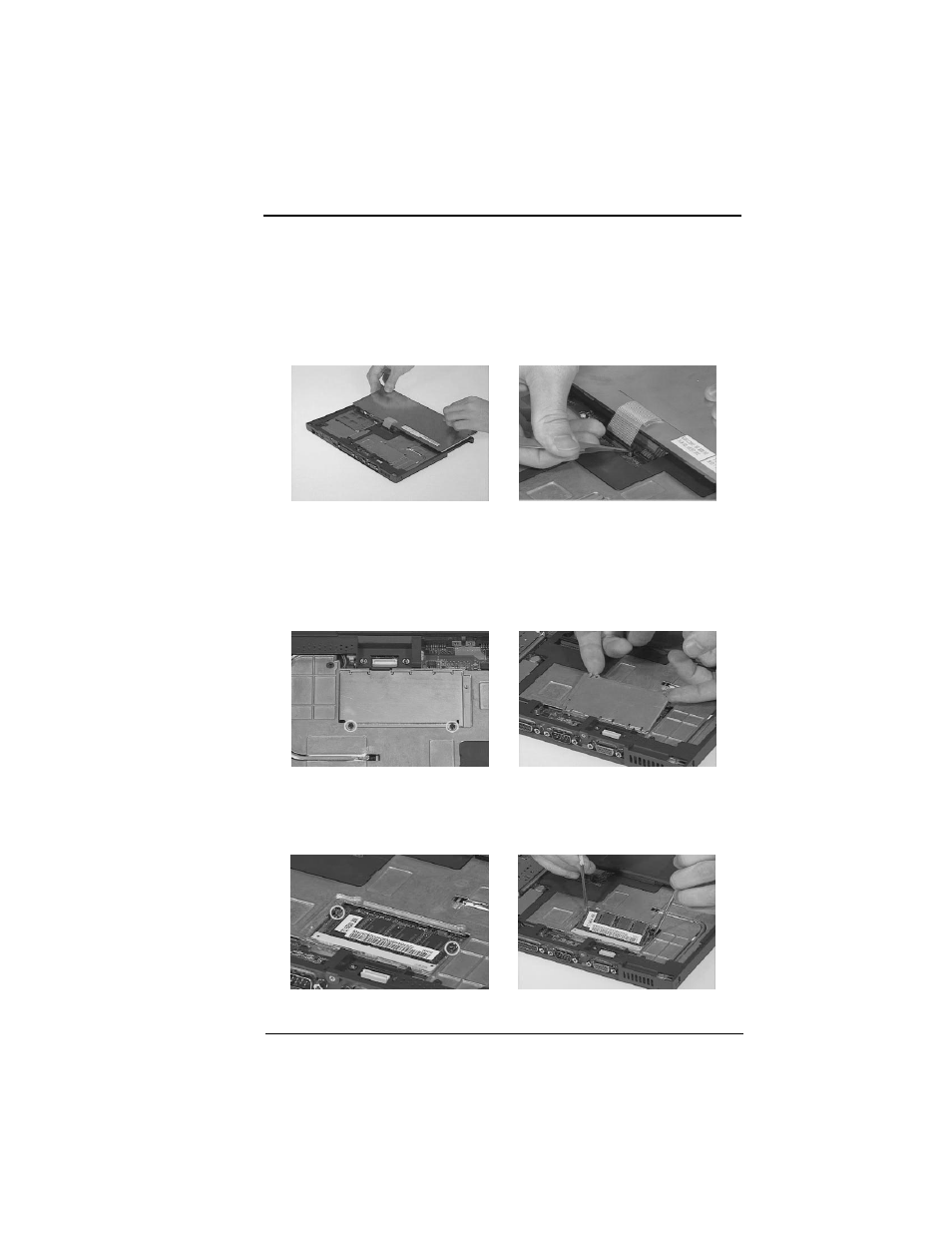

Disassembling the Main Unit
Removing the Keyboard
1. Lift the keyboard up, turn it over to expose the keyboard connector.
2. Disconnect the keyboard connector carefully.
Removing the DIMM
1. Remove the two screws of the DIMM cover.
2. Remove the DIMM cover from the main unit.
3. Use a flatbladed screw driver to push out the latches on both sides of the
DIMM socket.
