English 6

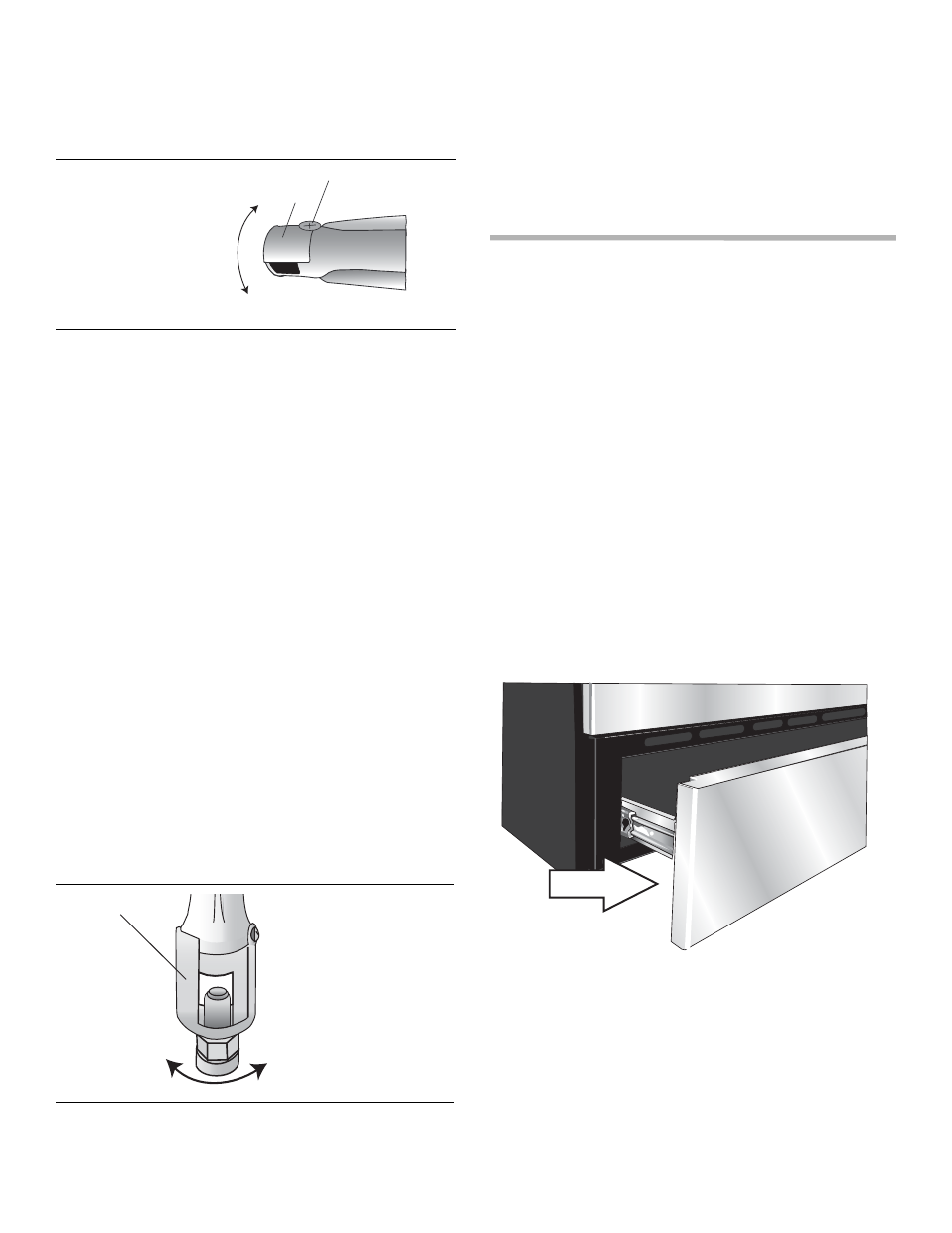

1. Loosen screw and turn shutter. Close the shutter if the
flame is lifting or blowing or not carrying over; Open the
shutter if it is too yellow. (See Figure 8). Tighten screw.
Test Bake Burner
Test Ignition
Set the oven to bake at 350° F. After 30-75 seconds, the
burner will ignite. The burner will stay lit until the 350° F is
reached and then shut off. From this point forward, the
burner will cycle on and off to maintain the temperature.
Test Flame
Verify that flame characteristics are as shown in “Checking
Flame Characteristics” on page 7. If flame characteristics
are not consistent with those in the graphic above, adjust
flame as described below.
Adjust Bake Flame (if necessary)
Adjust the air shutter to alter the flame characteristice. The
oven burner air shutter is located to the left of the oven
regulator. Reach it through the access hole in the interior
back panel of the warming drawer
1. Loosen screw and turn shutter. Close the shutter if the
flame is lifting or blowing or not carrying over; Open the
shutter if it is too yellow. (See Figure 8). Tighten screw.
Call Service if:
1. Any of the burners do not light.
2. The broil burner or bake burner does not stay lit.
3. The bake burner does not cycle.
Service
Before Calling
Service
See Use and Care Manual for troubleshooting information.
Refer to the Warranty in the Use and Care Manual.
To reach a service representative, see the contact
information at the front of the manual. Please be prepared
with the information printed on your product data plate
when calling.
Product Data Plate
The data plate shows the model and serial number. Refer
to the data plate on the appliance when requesting service.
It is located on the frame near the drawer. Open the drawer
to view it.
Air
Shutter
Screw
More Open:
Less Yellow Flame
More Closed:
Less Blue Flame
More Carryover
Less Lifting or Blowing
Shutter
More Open:
Less Yellow Flame
Less Open:
Less Blue Flame
More Carryover
Less Lifting or Blowing
Data Plate
