English 4
4. Adjust Broil Orifice .
5. Replace Broil Assembly being careful to reinsert all 5
screws gently.
.
Note: The air shutter on the broil burner fits over the orifice
when installed correctly.

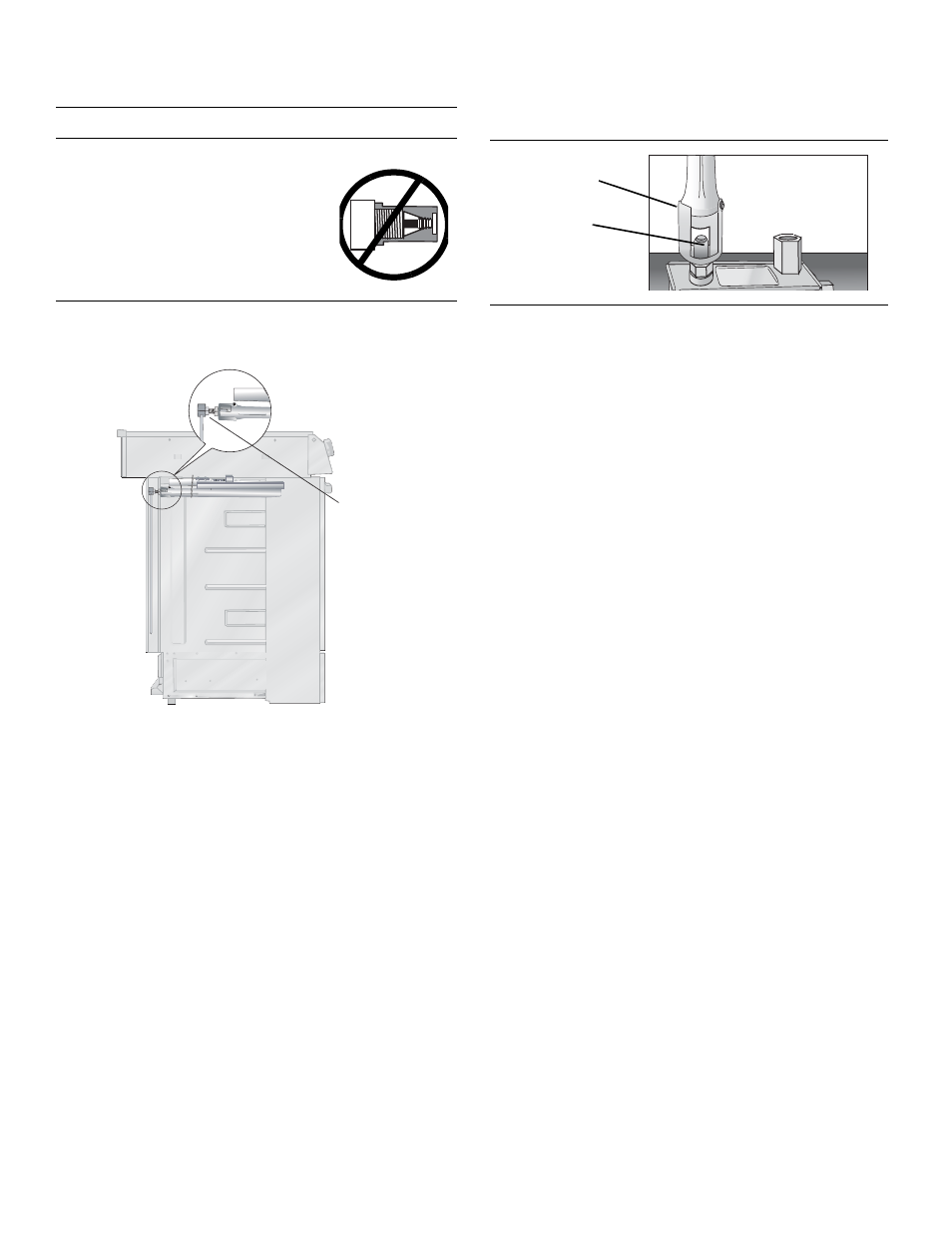

Adjust Bake Burner Orifice
The bake burner orifice is located below the air shutter
(See Figure 6). Reach it through the access hole in the
interior back panel of the warming drawer cavity.
1. Use a 1/2" wrench to turn orifice clockwise until it stops
(2 1/2 - 3 turns). Unlike the broil burner orifice, the
bake burner orifice should be tightened as far as it will
go in order to ensure that complete conversion has
occurred.
2. Broil and Bake may require adjustments on the air
shutter..
Test the Installation
Test for Gas Leaks
Leak testing is to be conducted by the installer according to
the instructions given in this section.
Apply Leak Detection Fluid
Turn on Gas. Apply a non-corrosive leak detection fluid to
all joints and fittings in the gas connection between the
shutoff valve and the range. Include gas fittings and joints
in the range if connections may have been disturbed during
installation. Bubbles appearing around fittings and
connections indicate a leak.
If a leak appears, turn off supply line gas shutoff valve and
tighten connections. Retest for leaks by turning on the
supply line gas shutoff valve. When leak check is complete
(no bubbles appear), test is complete. Wipe off all detection
fluid residue.
CAUTION: Never check for leaks with a flame.
Do not continue to the next step until all leaks are
eliminated.
Test Electric Ignition
Turn on power at breaker
Caution: If the display flashes and beeps, the polarity of
the wiring may be reversed. Reversed polarity can damage
the range and can result in electrical shock hazard.
Immediately switch off power at the breaker and return to
installation instructions.
9 CAUTION
DO NOT overtighten the broil
burner orifice. Overtightening
may result in damage to the pin
inside the orifice. This affects
cooking performance. It could
cause inconsistent flames and
unintentional release of carbon
monoxide.
Broil
Orifice
Bake Orifice
Air Shutter
