Names of Parts
20

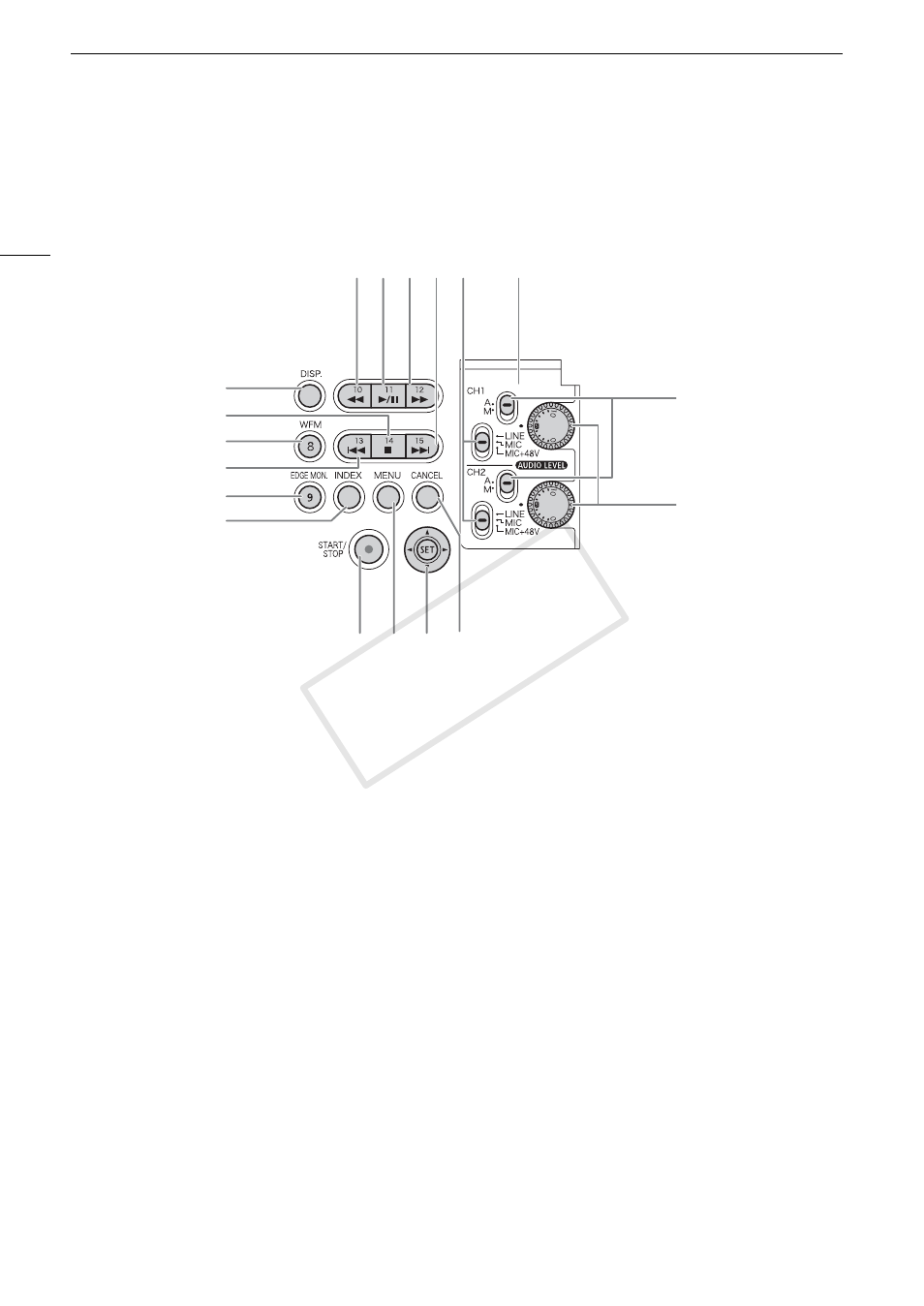

Operation panel
13
14
18 17 16 15
6
5
4
3
2
1
7 8 9 10 11 12
1 DISP. (display) button (A 55, 127)
2 Ñ (stop) button (A 126)/
Assignable button 14 (A 111)
3 WFM (waveform monitor) button (A 100)/
Assignable button 8 (A 111)
4 Ú (skip backward) button (A 128)/
Assignable button 13 (A 111)
5 EDGE MON. (edge monitor) button (A 100)/
Assignable button 9 (A 111)
6 INDEX button (A 126)
7 Ø (fast reverse playback) button (A 128)/
Assignable button 10 (A 111)
8 Ò (play/pause) button (A 126)/
Assignable button 11 (A 111)
9 × (fast playback) button (A 128)/
Assignable button 12 (A 111)
10 Ù (skip forward) button (A 128)/
Assignable button 15 (A 111)
11 XLR terminal switches for CH1 (top) and CH2
(bottom) (A 93)
12 Protective cover for XLR audio controls (A 94)
13 ã switches for CH1 (top) and CH2
(bottom) (A 94)
14 ã dials for CH1 (top) and CH2 (bottom)
(A 94)
15 START/STOP button (A 51)
16 MENU button (A 29)
17 Joystick (A 29)/SET button (A 29)
18 CANCEL button (A 29)
