15

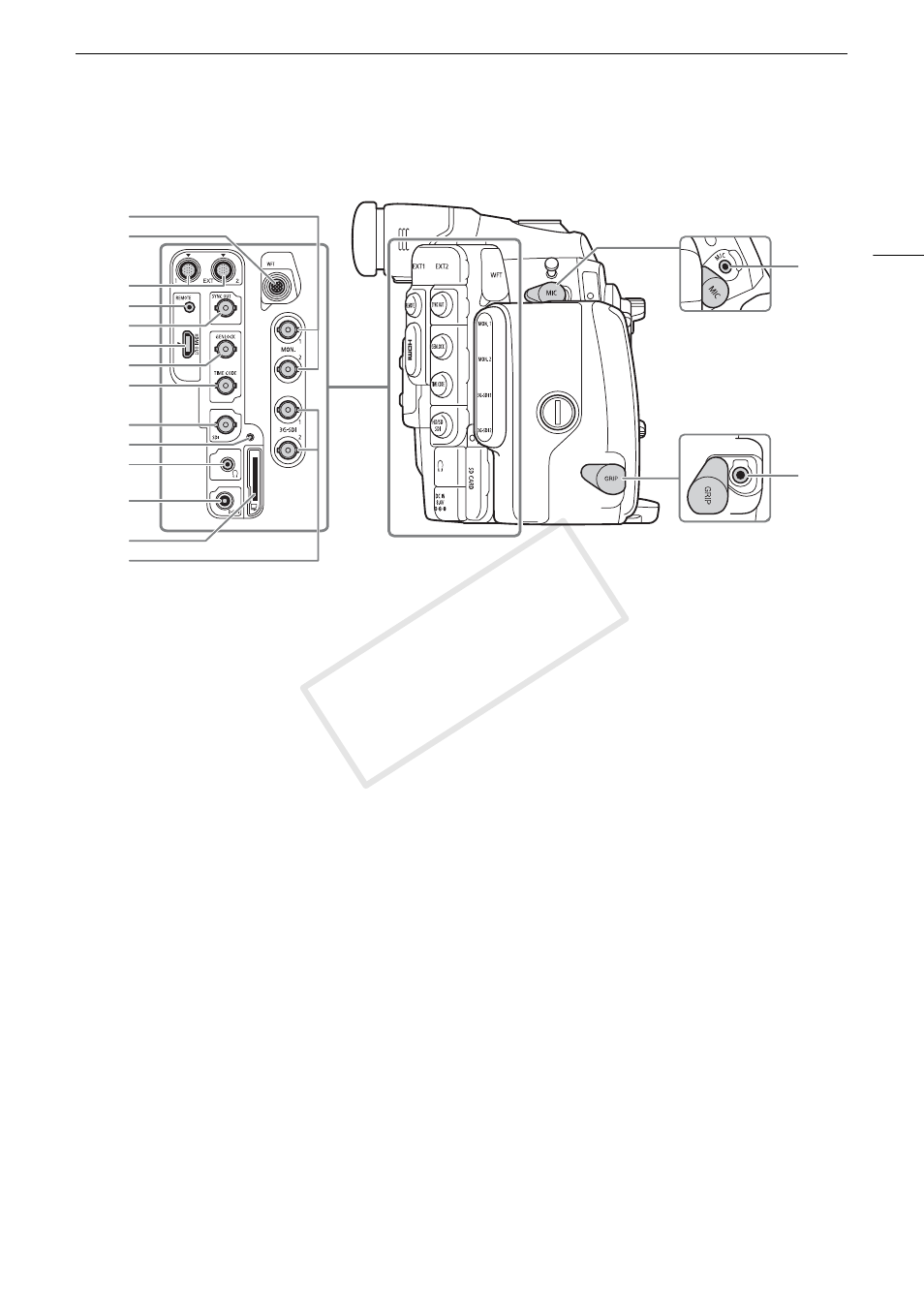

Names of Parts
31
32
28
27
26
25
24
23
22
21
20
19
18
17
29
30
17 MON. (external monitor) terminals 1 and 2 (A 41)
18 WFT terminal (A 49)
19 EXT (modular unit) terminals 1 and 2 (A 35)
20 REMOTE terminal
For connecting commercially available remote
controllers.
21 SYNC OUT (synchronizing signal output) terminal
(A 90,148)
22 HDMI OUT terminal (A 147)
23 GENLOCK terminal (A 88)
24 TIME CODE terminal (A 89, 91)
25 HD/SD SDI terminal (A 147)
26 SD card access indicator (A 44)
27 × (headphone) terminal (A 96)
28 DC IN terminal (A 25)
29 3G-SDI terminals 1 and 2 (A 41)
30 SD card slot (A 44)
31 MIC (microphone) terminal (A 92)
32 GRIP terminal
This terminal is the same as the grip unit
connection terminal on the C300 / C300 PL or
C100 camcorder.
