Displaying the Status Screens
182

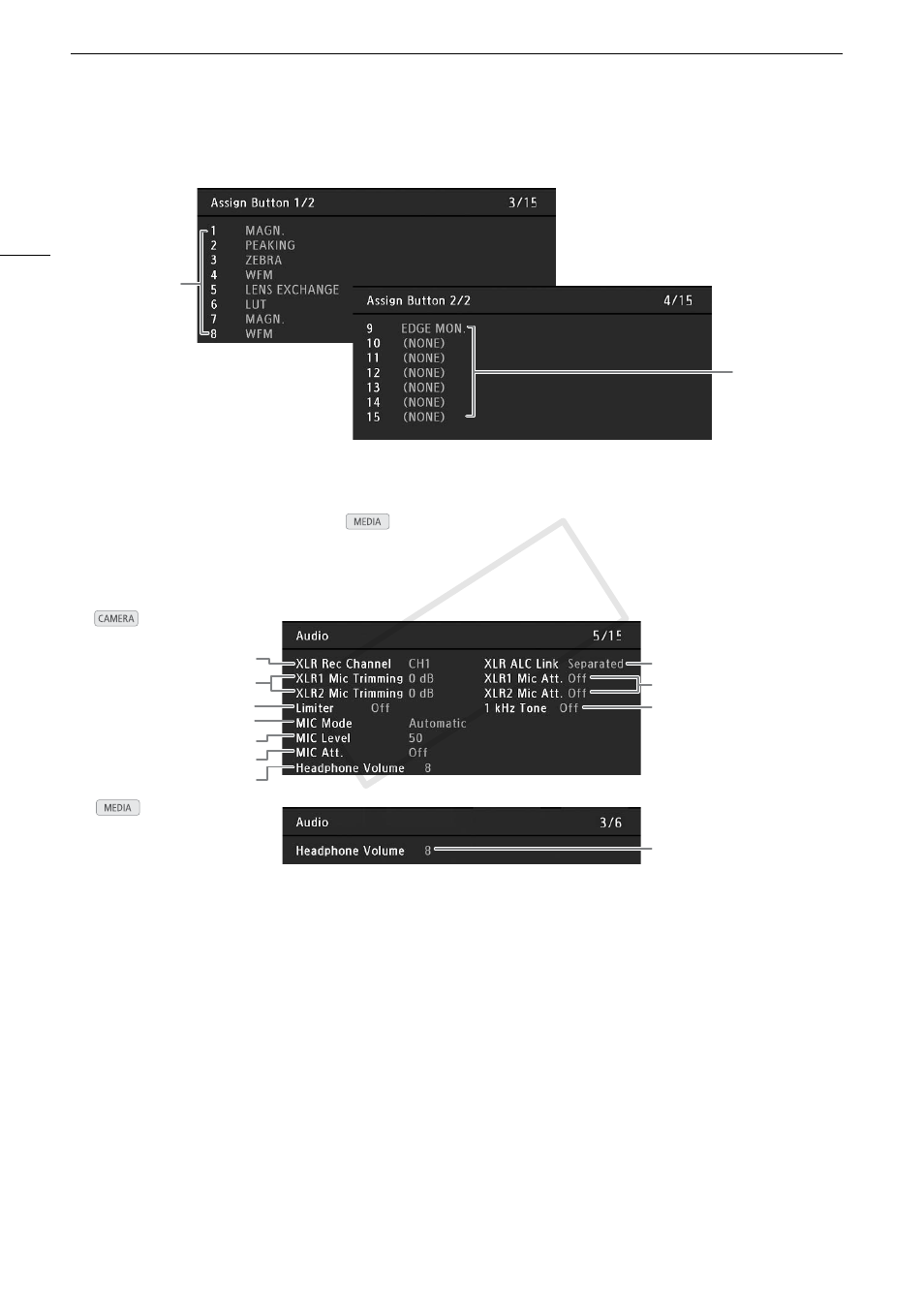

[Assign Button 1/2], [Assign Button 2/2] Status Screen
* Assignable buttons 10 to 15 do not appear in mode.
[Audio] Status Screen
1
1
1 Assignable buttons 1 to 15* (A 111)
1
2
3
4
5
6
7
8
7
9
10
In mode
In mode
1 XLR terminal recording channel (A 93)
2 Microphone sensitivity (XLR terminal) (A 95)
3 Audio peak limiter (A 94, 95)
4 Microphone mode (MIC terminal) (A 95)
5 Microphone recording level (MIC terminal) (A 95)
6 Microphone attenuator (MIC terminal) (A 96)
7 Headphone volume (A 129)
8 Linking recording levels of XLR terminals (A 94)
9 Microphone attenuator (XLR terminal) (A 95)
10 Audio reference signal (A 99)
