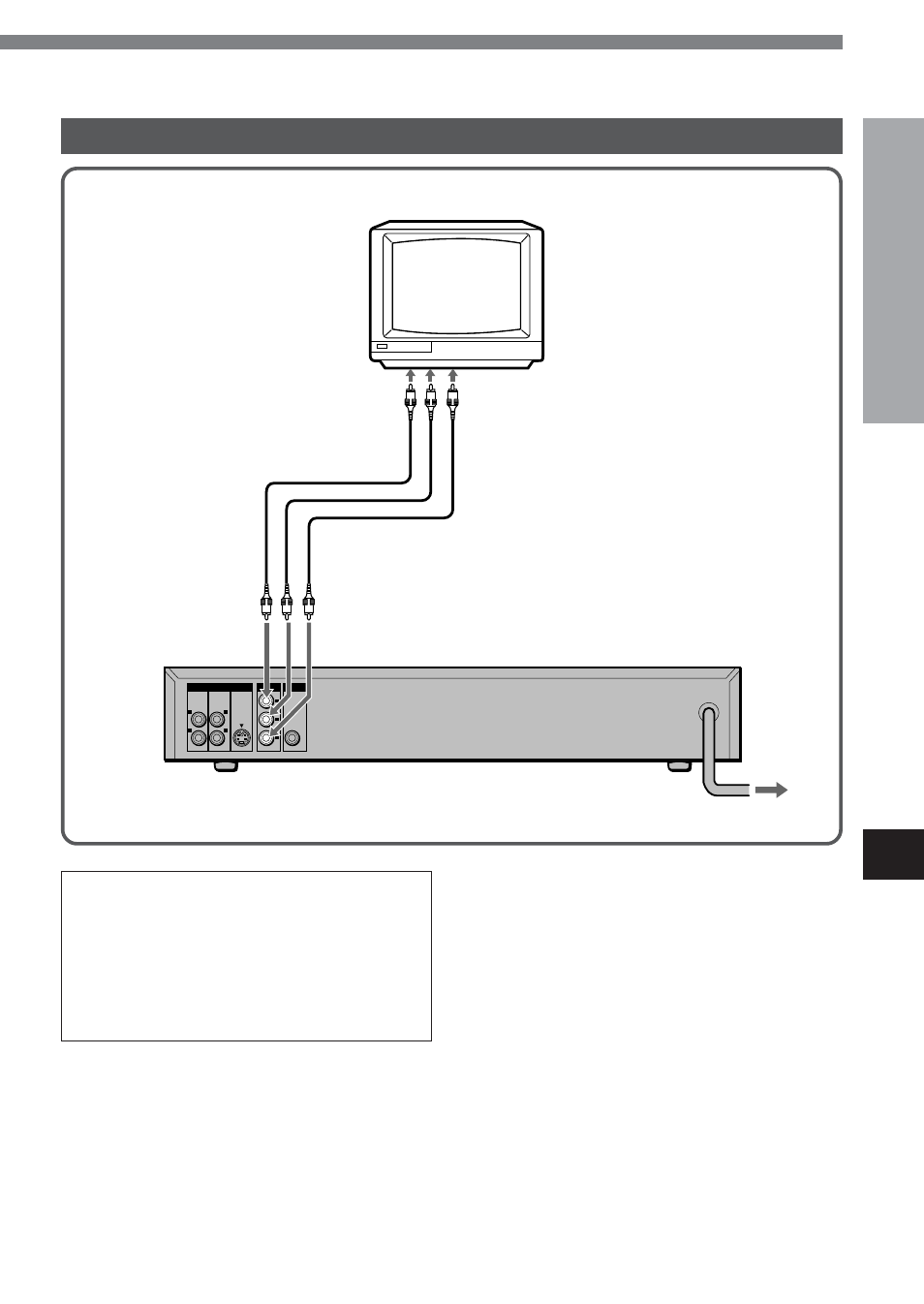

Connecting to a TV or monitor with component video input connectors

TV or monitor

Component video output jacks (C

B

/C

R

/Y)

The component video output jacks output the dif

ferent

color signals (C

B

/C

R

) and luminance signal (Y)

separately in order to achieve high fidelity in reproducing
colors.
The description of the component video output
connectors may dif fer depending on the connected

TV

or monitor (e.g. P

B

/P

R

/Y, C

B

/C

R

/Y, B-Y/R-Y/Y, etc.). Refer

to the operating instructions of the

TV for details.

Set the setup menu correctly after connecting!

Set the "TV Aspect" of the setup menu according to the

TV

connected to the unit as follows:
(See "CHANGING SETUP VALUES" on page 40 for details.)

TV Aspect
When your TV is a conventional-screen size

TV:

L-BOX or P-SCAN
When your TV is a wide-screen size TV:
16:9

to video input jacks (Y/C

B

/C

R

)

Video cables (not supplied)

to COMPONENT VIDEO OUT (Y/C

B

/C

R

) jacks

Rear of the unit

to an AC outlet
