14

ENGLISH

CONNECTIONS (CONTINUED)

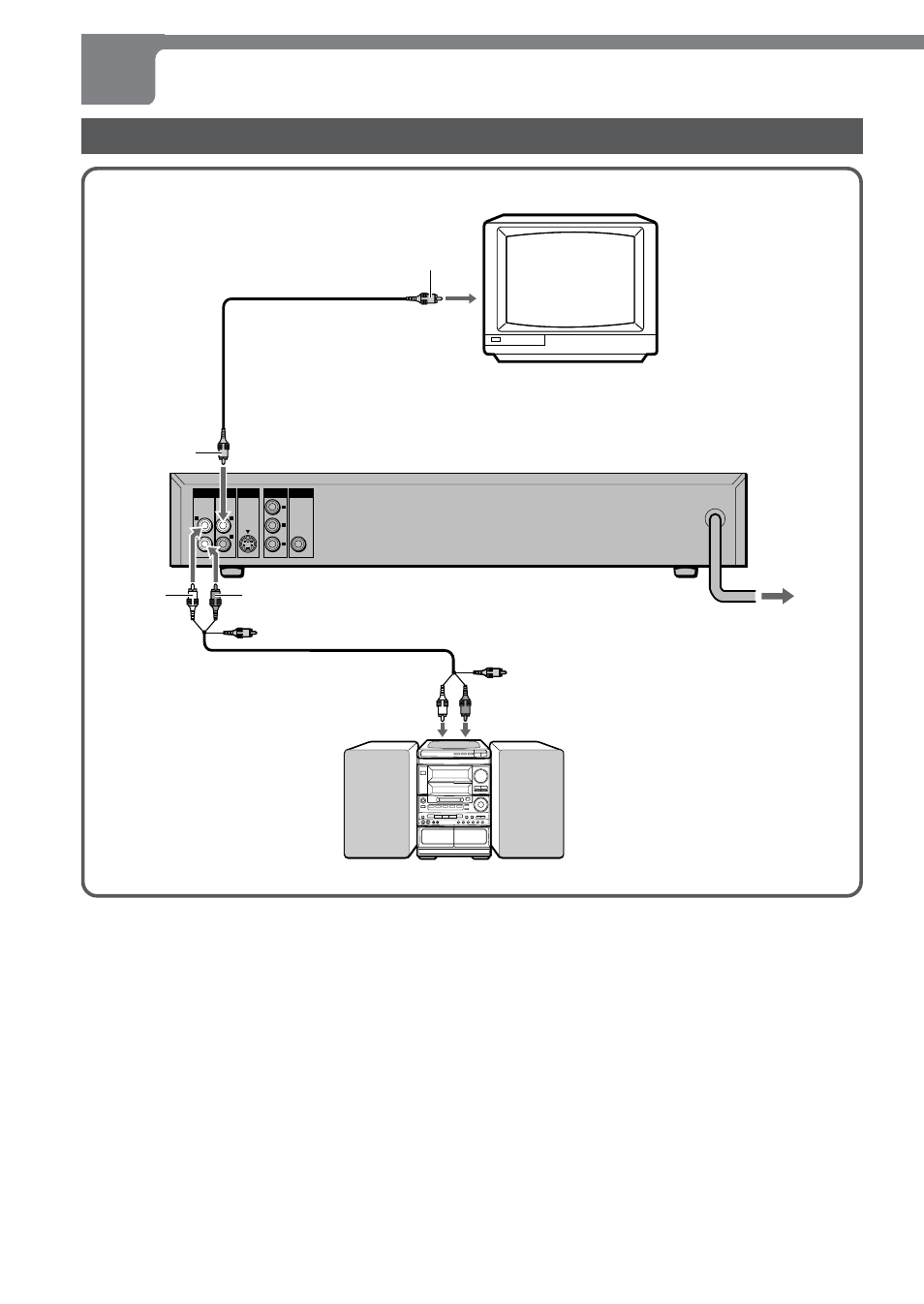

C Connecting to a TV and an audio system

Set the setup menu correctly after connecting!

Set the "TV Aspect" of the setup menu according to the

TV

connected to the unit as follows:
(See "CHANGING SETUP VALUES" on page 40 for details.)

TV Aspect
When your TV is a conventional-screen size

TV:

L-BOX or P-SCAN
When your TV is a wide-screen size TV:
16:9

AUDIO OUT VIDEO OUT

COMPONENT

VIDEO OUT

DIGITAL OUT

S-VIDEO OUT

COAXIAL

R

L

2

1

C

R

Y

C

B

TV

to the video input jack (yellow)

yellow

Video cord (not supplied)

yellow

to VIDEO OUT 1 or 2 jack (yellow)

Rear of the unit

to AUDIO OUT L (white)/ R (red) jacks

red

white

Audio/video cord (supplied)

to an AC outlet

to audio input jacks (Left/white, Right/red)

Audio system
