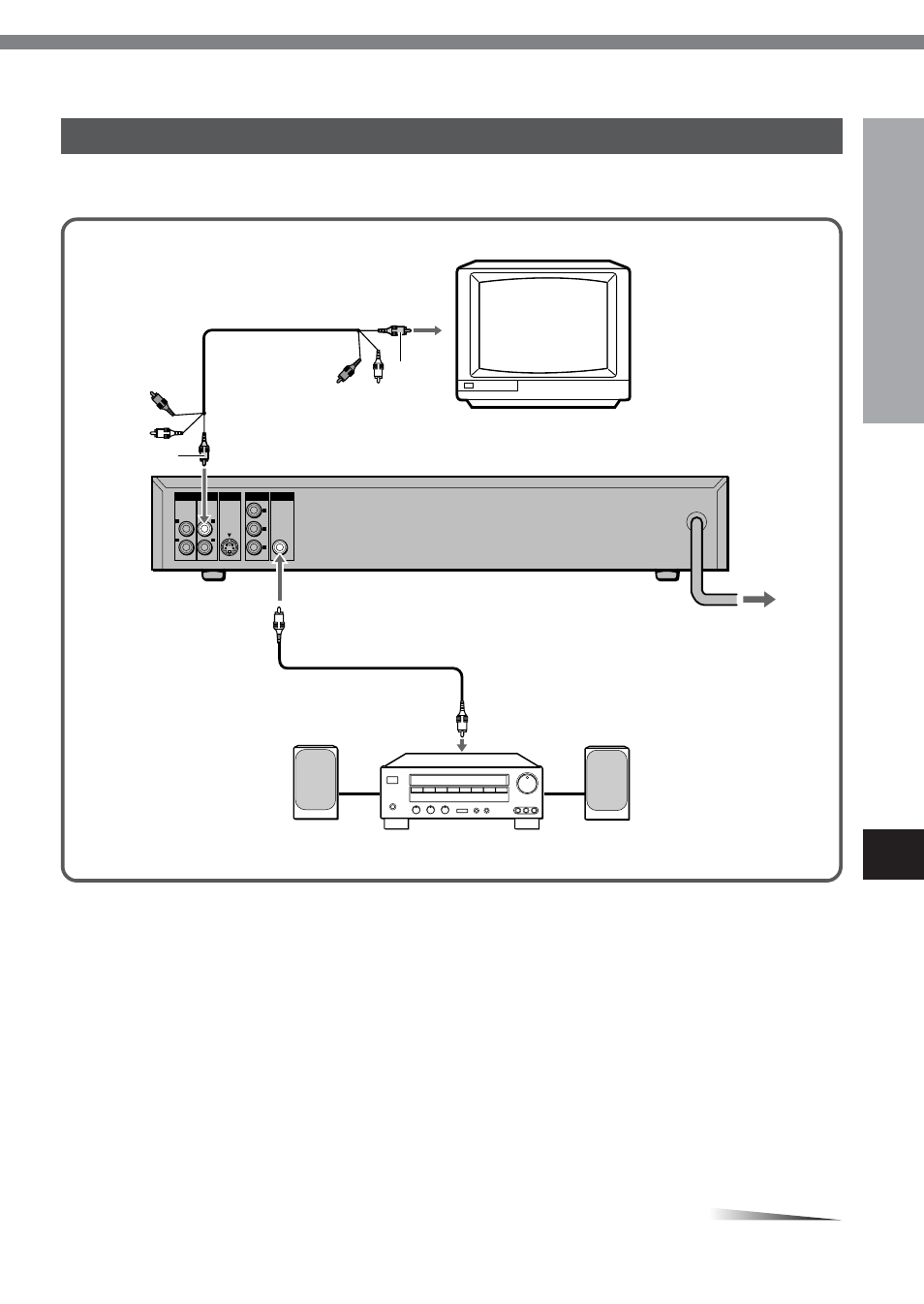

B Connecting to a TV and an amplifier with a Digital In jack

Use a commercially available 75 ohm coaxial cord when connecting the unit to an

AV amplifier with a Digital In jack.

The

supplied Audio/video cord is also available instead of a coaxial cord.

Set the setup menu correctly after connecting!

Set the "TV Aspect" and "Digital out" of the setup menu
according to the audio equipment and

TV connected to the

unit as follows:
(See "CHANGING SETUP VALUES" on page 40 for details.)

Digital out
"Dolby Digital" to "PCM"
"DTS" to "Off"

TV Aspect
When your TV is a conventional-screen size

TV:

L-BOX or P-SCAN
When your TV is a wide-screen size TV:
16:9

CONTINUE

TV

to the video input jack (yellow)

yellow

Audio/video cord (supplied)

yellow

to VIDEO OUT 1 or 2 jack (yellow)

Rear of the unit

to DIGITAL OUT COAXIAL jack

to an AC outlet

Coaxial cord (not supplied)

to the digital input jack

Front speaker (L)

Amplifier with a Digital In jack

Front speaker (R)
