CONNECTIONS (CONTINUED)

E Connecting to a TV and an AV receiver equipped with a DTS decoder

Use a commercially available 75 ohm coaxial cord when connecting the unit to an

AV receiver with a Digital In jack.

The

supplied Audio/video cord is also available instead of a coaxial cord.

AUDIO OUT VIDEO OUT

COMPONENT

VIDEO OUT

DIGITAL OUT

S-VIDEO OUT

COAXIAL

R

L

2

1

C

R

Y

C

B

Set the setup menu correctly after connecting!

Set the "TV Aspect" and "Digital out" of the setup menu
according to the audio equipment and

TV connected to the

unit as follows:
(See "CHANGING SETUP VALUES" on page 40 for details.)

Digital out
"Dolby Digital" to "PCM"
"DTS" to "Bitstream"

TV Aspect
When your TV is a conventional-screen size

TV:

L-BOX or P-SCAN
When your TV is a wide-screen size TV:
16:9

CAUTION

When connecting an AV receiver not equipped with a DTS
decoder using a coaxial connecting cord,

do not set "DTS"

to "Bitstream" in "Digital out" of the setup menu.
Merely attempting to play a DVD may cause a screeching
noise which could be harmful to your ears and damage the
speakers. In such a case, be sure to set "DTS" to "Of

f" in

"Digital Out".

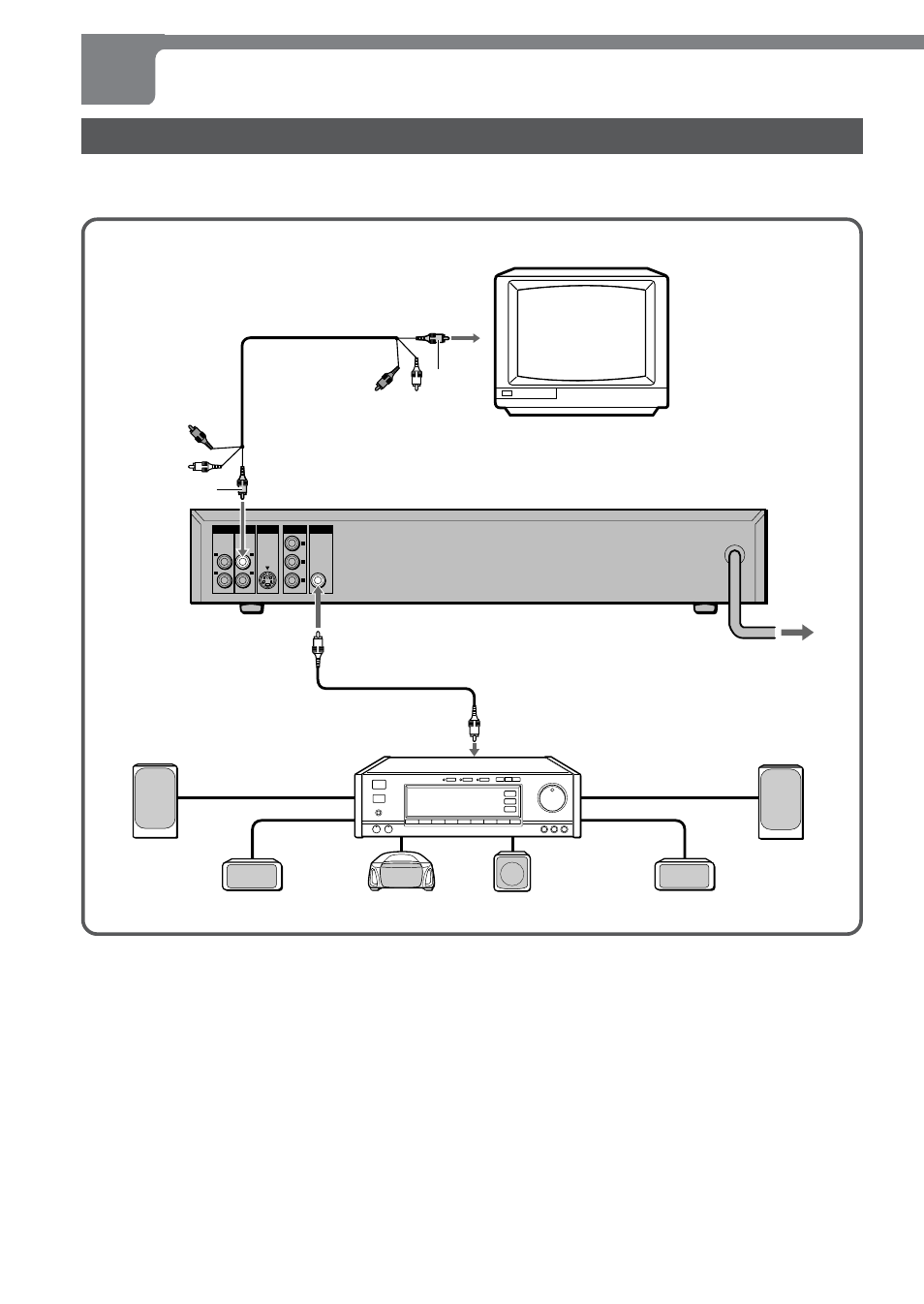

TV

yellow

to the video input jack (yellow)

Audio/video cord (supplied)

yellow

to VIDEO OUT 1 or 2 jack (yellow)

Rear of the unit

to DIGITAL OUT COAXIAL jacks

Coaxial cord (not supplied)

to an AC outlet

Receiver equipped
with a DTS decoder

Front speaker (L)

Surround speaker (L)

Center speaker

Subwoofer

Surround speaker (R)

Front speaker (R)
