18

ENGLISH

AUDIO OUT VIDEO OUT

COMPONENT

VIDEO OUT

DIGITAL OUT

S-VIDEO OUT

COAXIAL

R

L

2

1

C

R

Y

C

B

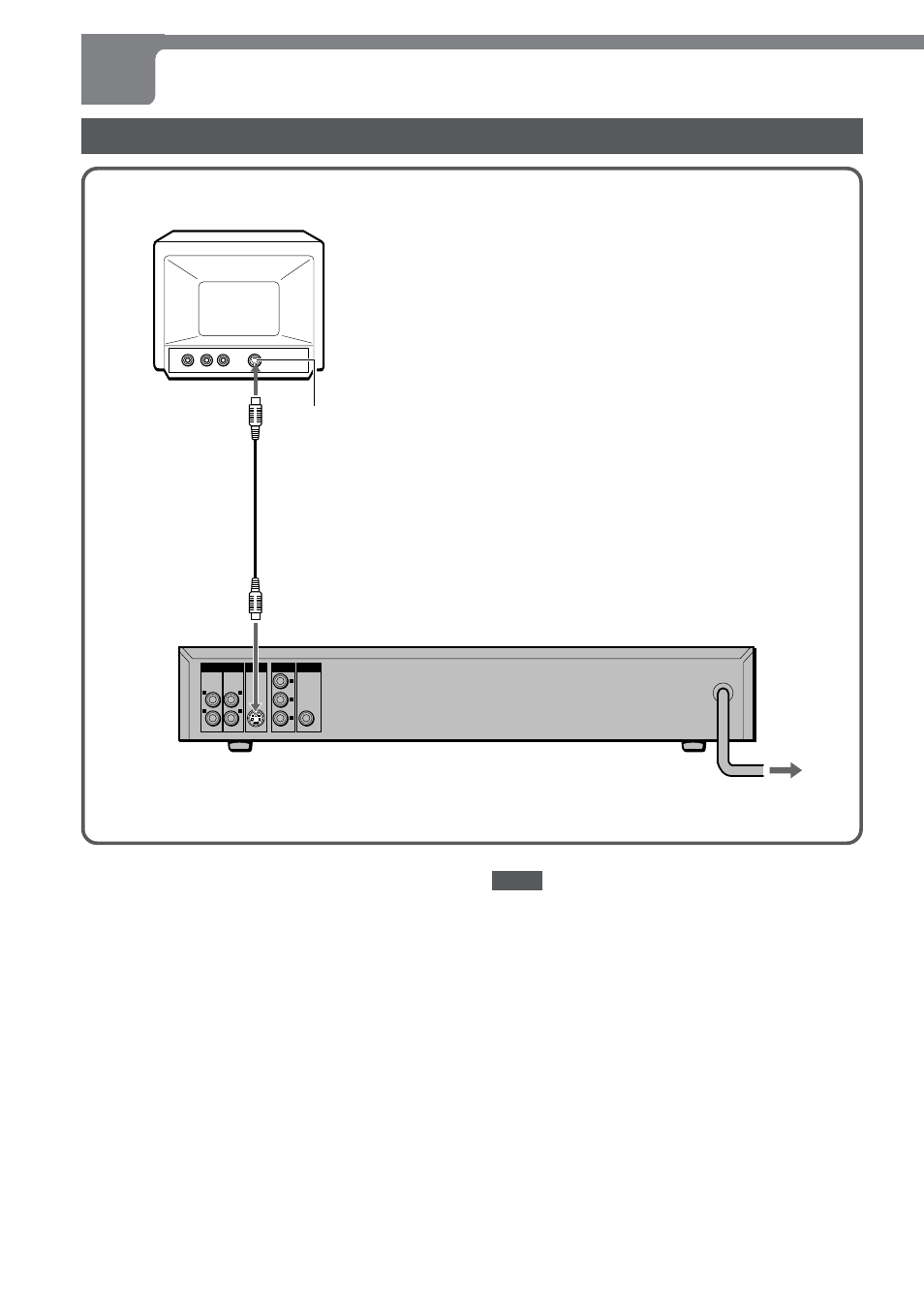

Connecting to a TV equipped with an S-video jack

Set the setup menu correctly after connecting!

Set the "TV Aspect" of the setup menu according to the

TV

connected to the unit as follows:
(See "CHANGING SETUP VALUES" on page 40 for details.)

TV Aspect
When your TV is a conventional-screen size

TV:

L-BOX or P-SCAN
When your TV is a wide-screen size TV:
16:9

Rear of the TV

S-video input connector (S1, S2)

S-video cord (not supplied)

to S-VIDEO OUT connector

Rear of the unit

to an AC outlet

NOTE

For the best possible picture clarity

, it is recommended that

an S (separate) video cord (not supplied) be used when
connecting the unit to a TV equipped with an S-video input
terminal.

CONNECTIONS (CONTINUED)
