Page 17: English

background image

ENGLISH

17

PREP

ARA

TIONS

En

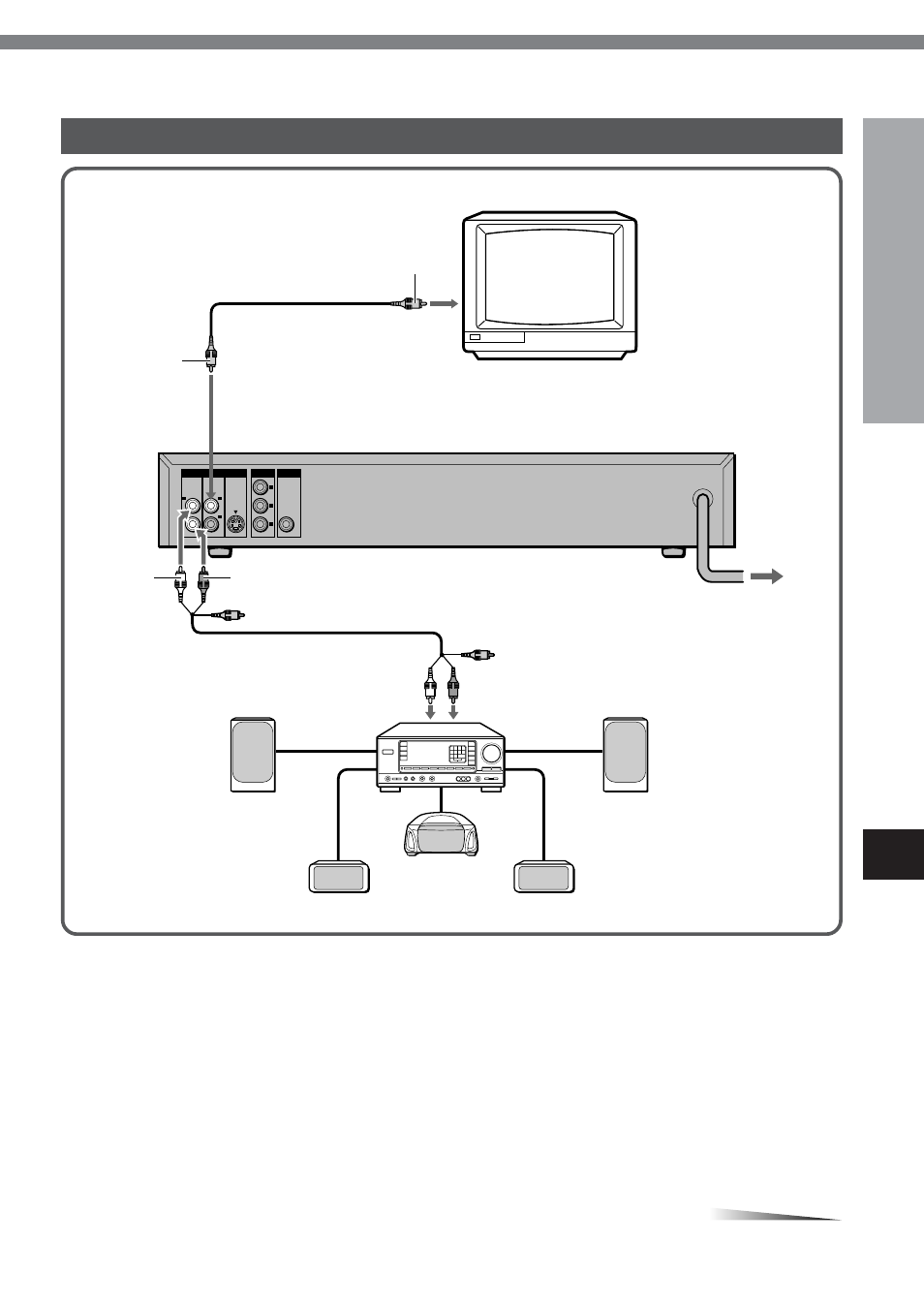

F Connecting to a TV and an AV receiver with the Dolby Pro Logic Surround system

AUDIO OUT VIDEO OUT

COMPONENT

VIDEO OUT

DIGITAL OUT

S-VIDEO OUT

COAXIAL

R

L

2

1

C

R

Y

C

B

TV

Set the setup menu correctly after connecting!

Set the "TV Aspect" and "Digital out" of the setup menu
according to the audio equipment and

TV connected to the

unit as follows:
(See "CHANGING SETUP VALUES" on page 40 for details.)

Digital out
"Dolby Digital" to "Bitstream"
"DTS" to "Off"

TV Aspect
When your TV is a conventional-screen size

TV:

L-BOX or P-SCAN
When your TV is a wide-screen size TV:
16:9

CONTINUE

yellow

to the video input jack (yellow)

Video cord (not supplied)

yellow

to VIDEO OUT 1 or 2 jack (yellow)

Rear of the unit

to AUDIO OUT L (white)/ R (red) jacks

red

white

Audio/video cord (supplied)

to an AC outlet

Receiver equipped
with Dolby Pro
Logic decoder

to the audio input jacks
(Left/white, Right/red)

Front speaker (L)

Surround speaker (L)

Center speaker

Surround speaker (R)

Front speaker (R)
