A - 17 APPENDIXES

4

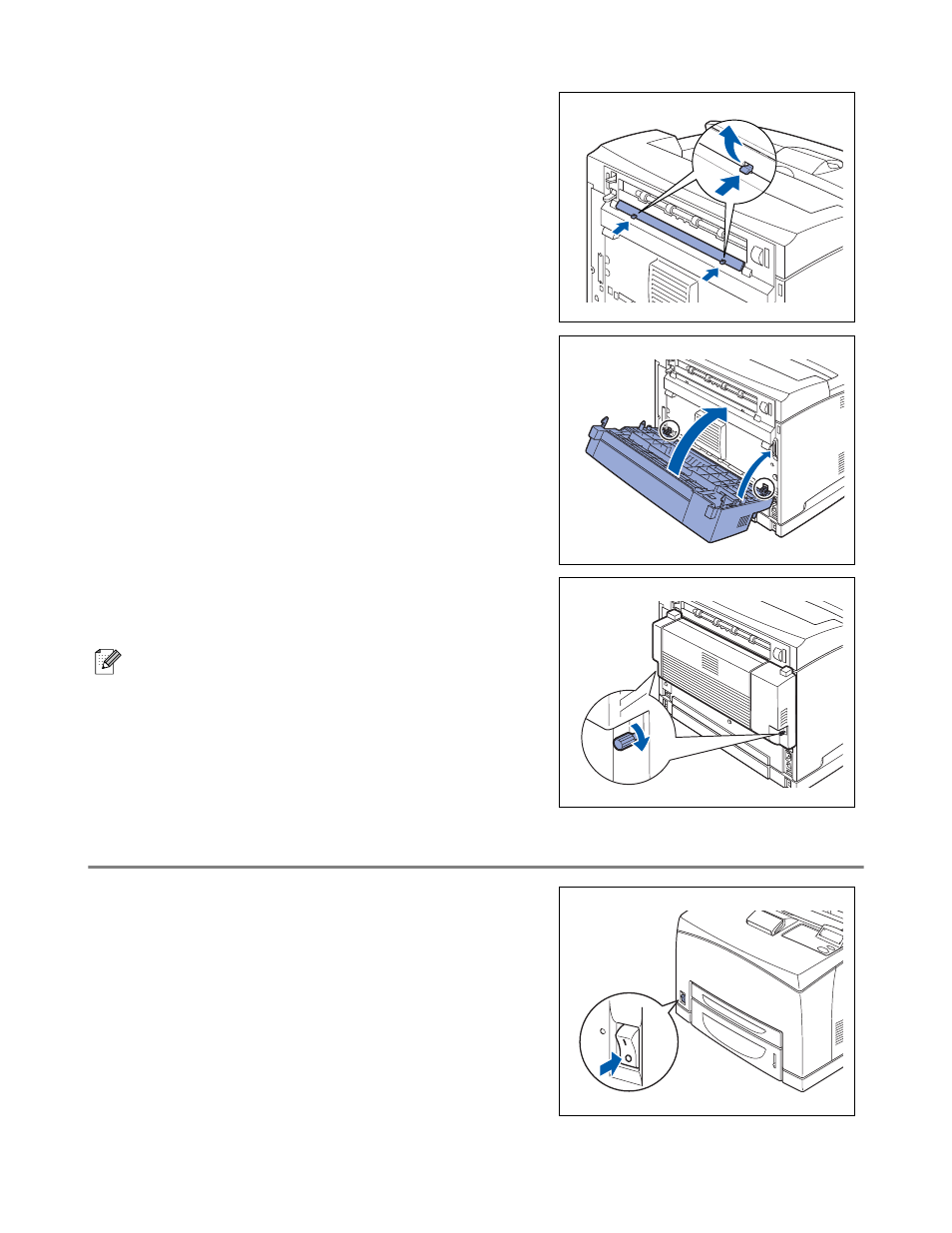

Push in the packing cover from the printer by pushing the
two tabs as shown in the illustration.

5

Insert the right and left tabs at the bottom of the duplex
unit into the holes at the back of the printer and then align
the top part of the duplex unit with the printer.
Ensure that the connector of the duplex unit is connected
to the connector of the printer.

6

Tighten the screws at both ends of the bottom of the
duplex unit.
Turn the printer switch back on.

To configure the printer driver, see Accessories tab on
page 3-7.

Uninstalling the Duplex Unit

1

Turn off the printer power switch.
