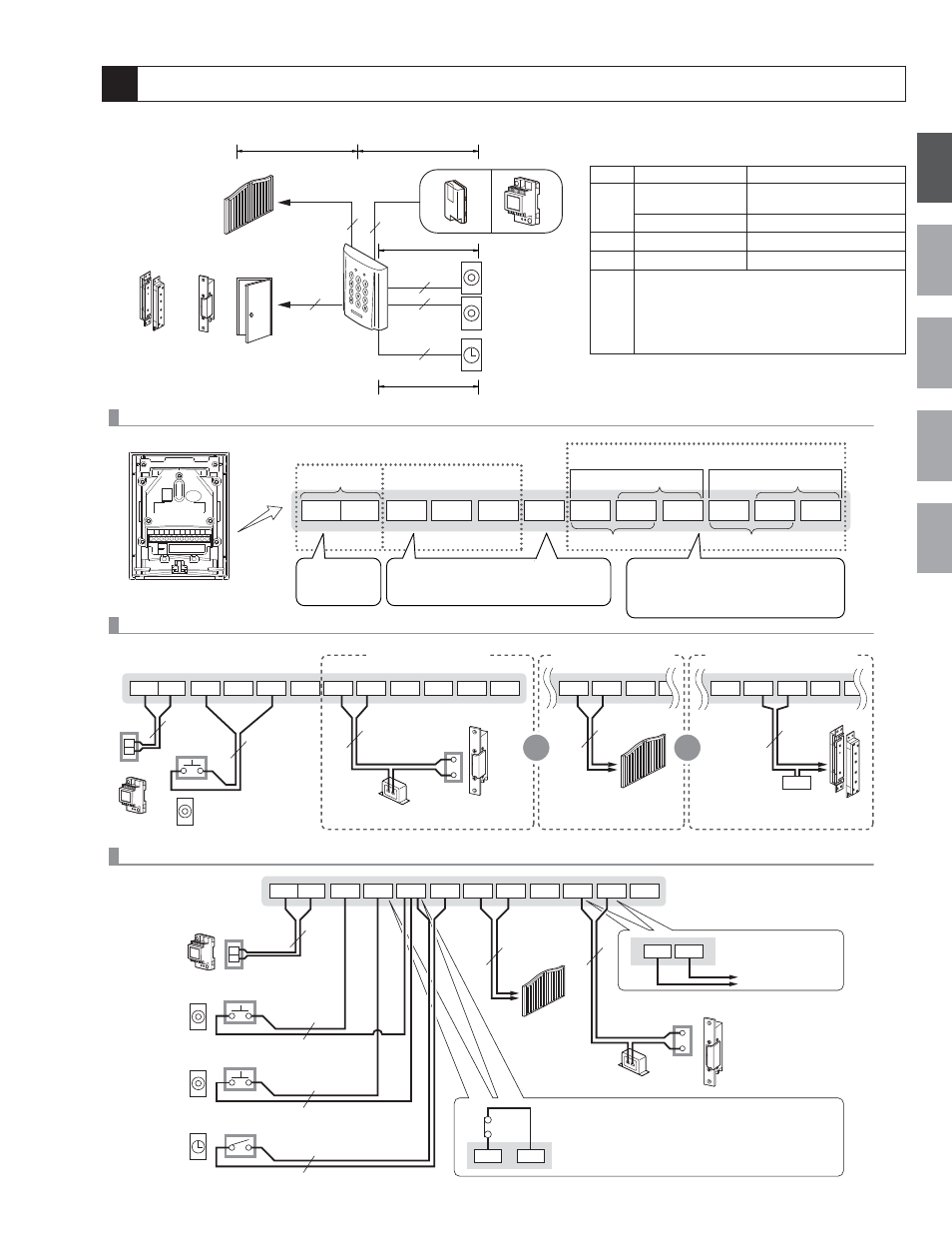

MOUNTING/WIRING METHOD, WIRING DISTANCE
N/C contact
Power supply
User group1 relay 1
User group2 relay 2
Request to
exit/entry
button 1
Request to
exit/entry
button 2
Common
Timer
N/C contact
N/O contact
N/O contact
Back view of AC-10S
Power supply
Rating
Between 12 and 24V AC
Between 12 and 24V DC
Automatic gate
Timer
For relay 2
Request to
exit/entry button
For relay 1
Request to
exit/entry button
To set
VJG
"
auto-relock
"
/
"
External output by forced entry
"
function a
sensor (locally avallable) is required.
The request to exit/entry button for relay 2 cannot be used when the
"
auto-relock
"
/
"
External out put by forced entry
"
function are set.
Electric door strike
AC transformer
Power supply
Power supply
Between 12 and 24V AC
Between 12 and 24V DC
Request to exit/entry button Timer
Minimum overload :100mV DC, 0.1mA or above
Contact capacity: 3V DC, 0.1A or above
Relay
24V DC, 3A (resistive load) 1A (inductive load)
24V AC, 3A (resistive load) 1A (inductive load)
Minimum overload :5V DC, 100mA or above
Automatic gate
Power supply
Request to exit/entry button
(push button, etc.)
Electric door strike
AC transformer
Alarm, Security
Only connecting to the terminal
of relay 2 is possible.
External output
Terminal names
Relay 1: Automatic gate (N/O contact), Relay 2: Electric door strike (N/O contact)
Connection of Relay 1 only
Electromagnetic
door lock
Auto-relock/External out put by forced entry
(sensor connection is required)
Electric
door strike
Electromagnetic
door lock
Automatic gate
Request to exit/entry
button
Relay
Relay
Request to exit/entry
button
Timer
Power supply
Power supply
diameter 0.65 - 1.0 mm (22-18AWG)
A
AC/DC12 ~ 18V
(Less than)
100m (330')
AC/DC18 ~ 24V
300m (980')
B
-
300m (980')
C
-
300m (980')
D
The connection distance will depend on
the specifications of the electric door strike,
relays or Electromagnetic door lock to be
connected. To determine the operating range,
please refer to the specifications of each
terminal.
(Wiring distance)
