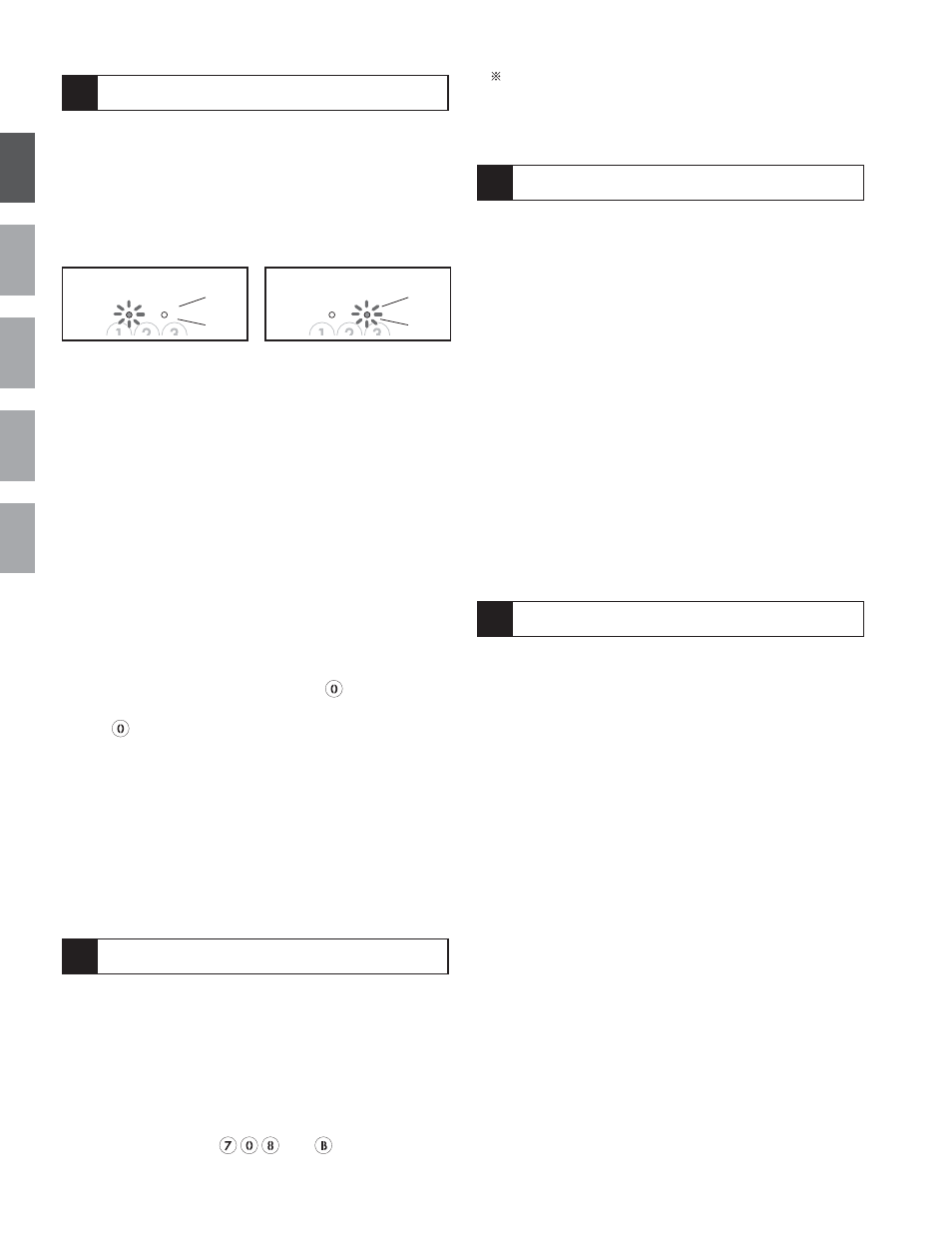

OPERATIONS
A. Unlocking of user code
When the registered user code has been input using the
keypad (between 4 and 6 digits), the LED indicator (group
1: orange, group 2: green) lights up, the buzzer sounds,
and the electric door strike is unlocked.
Orange LED lights up (during relay1 operation) Green LED lights up (during relay2 operation)
ex.): group 1
1006
group 2
04B2
Beep Beep
• The time interval during which the button must be
pressed is approximately 10 seconds. If the time
interval exceeds approximately 10 seconds, the input
value will be cleared.
• If you make a mistake when inputting the user code,
input the user code again.
• When the "Lockout" function has been set, the release
function is locked and the input operation is disabled for
the specified time (10 ~ 99 seconds) if invalid codes are
input a set number of times (10 ~ 99 times). (Reference:
"Lockout".) During this time, the key illumination will
blink 4 times, the LED (orange) indicator will blink for
the set deactivation time, and the buzzer will sound for
approximately 3 seconds.
B. Timer-linked unlocking
When the timer-linked unlocking function is active, the
door can be unlocked by pressing the
key during the
set time, while the timer is linked.
The
key illumination lights up when the timer is
activated by performing the setting.
C. Unlocking using the request to exit/entry button
When leaving the premises, you can activate the electric
door strike by pressing the request to exit/entry button
connected to the unit. Pressing request to exit/entry
button 1 releases relay 1, and pressing request to exit/
entry button 2 releases relay 2.
• When the door is unlocked using the request to exit/
entry button, the LED will not light up and the buzzer
will not sound.
TECHNICAL PRECAUTIONS
• Operating temperature: Between -20°C and 60°C (-4˚F to
140˚F)
• Cleaning: Clean the unit with a soft cloth dampened with
a neutral household cleanser. Do not use any
abrasive cleanser or cloths.
• The unit is weather resistant. However do not spray
high pressure water on access control keypad directly.
Excessive moisture may cause problems with the unit.
• Press and release the , , , and keys
simultaneously when this unit does not work.
)The LEDs (orange and green) will blink and the buzzer
will sound, and then resetting will take place. (The settings
do not return to their default values.)
• If resetting does not work, contact the service technician
who installed the unit.
SPECIFICATIONS
• Power supply: 12 ~ 24V AC
12 ~ 24V DC
• Power consumption: DC: Max. 70mA
AC: Max. 100mA
• Dimensions:
AC-10S: 125(H) × 98(W) × 33(D)mm
H 4-15/16” x W 3-7/8” x D 1-5/16”
AC-10F: 132(H) × 117(W) × 5(D)(recess: 29)mm
H 5-3/16” x W 4-5/8” x D 3/16”, recess 15/16”
Flush mount back box: 100(H) × 85(W) × 45(D)mm
H 3-15/16 x W 3-1/3 x D 1-3/4”
• Weight: AC-10S: approx. 600g (1.3 lbs)
AC-10F: approx. 670g (1.5 lbs)
• IP: IP54
• Number of relay circuits: 2
• Relay contact: N/O, N/C
• Relay contact capacity: 24V DC, 3A (resistive load)
1A (inductive load)
24V AC, 3A (resistive load)
1A (inductive load)
WARRANTY
Aiphone warrants its products to be free from defects of material
and workmanship under normal use and service for a period of
one year after delivery to the ultimate user and will repair free
of charge or replace at no charge, should it become defective
upon which examination shall disclose to be defective and under
warranty. Aiphone reserves unto itself the sole right to make
the final decision whether there is a defect in materials and/or
workmanship; and whether or not the product is within the
warranty. This warranty shall not apply to any Aiphone product
which has been subject to misuse, neglect, accident, or to
use in violation of instructions furnished, nor extended to units
which have been repaired or altered outside of the factory. This
warranty does not cover batteries or damage caused by batteries
used in connection with the unit. This warranty covers bench
repairs only, and any repairs must be made at the shop or place
designated in writing by Aiphone. Aiphone will not be responsible
for any costs incurred involving on site service calls. Aiphone will
not provide compensation for any loss or damage incurred by the
breakdown or malfunction of its products during use, or for any
consequent inconvenience or losses that may result.
