Raster Command Reference
- 17 -
2. Print Data

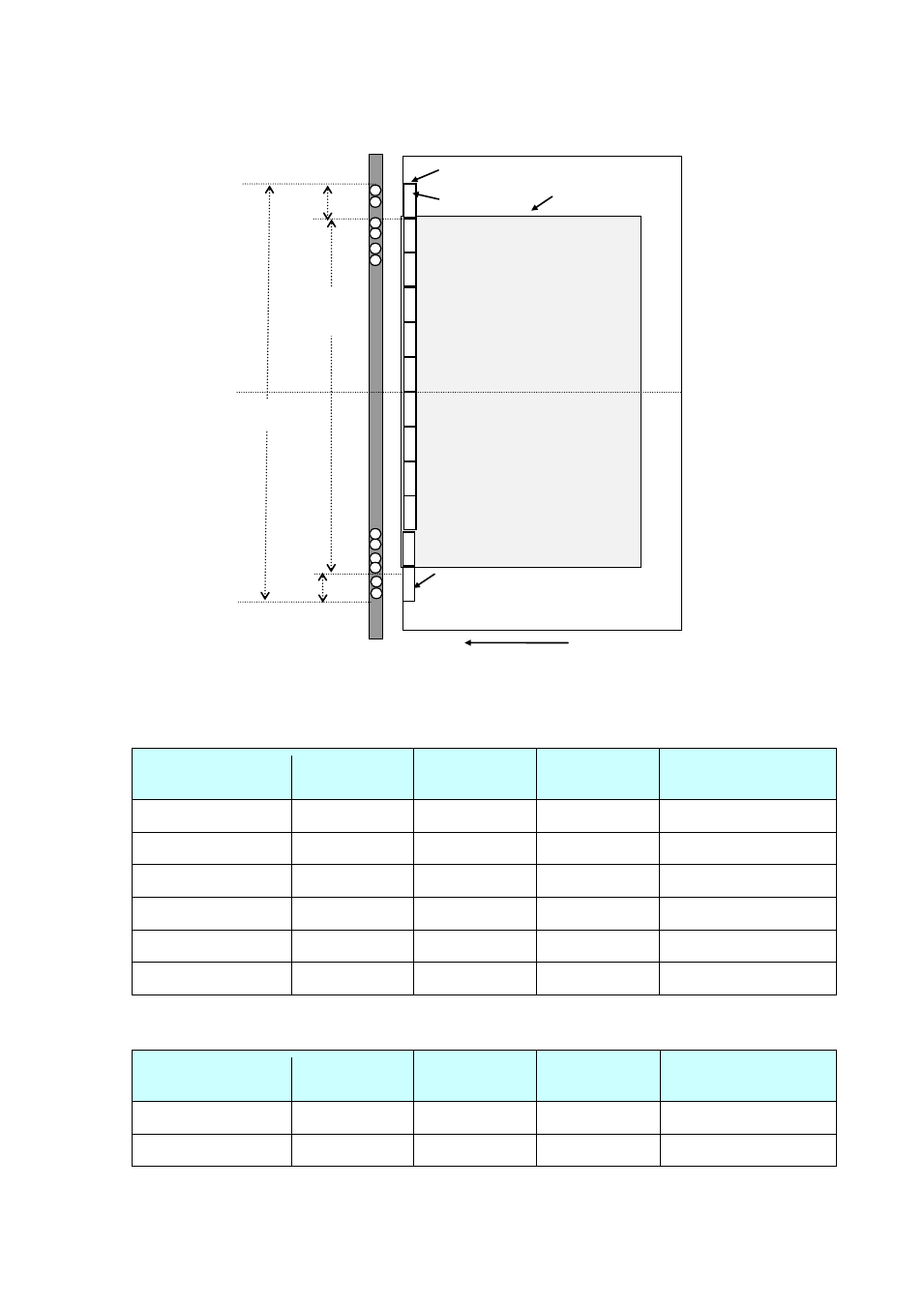

Total number of pins: 720 pins
0 pin
First byte
Left and right margins
Last byte
Raster line
Feeding direction
Print area
Pins on print head
Number of
print area
pins
Number of pins
for right margin
Total number
of pins
Number of pins
for left margin
Continuous length tape:
Tape Size
Number of Pins
for Left Margin
Number of Print
Area Pins
Number of Pins
for Right Margin
Number of Bytes for
Raster Graphics Transfer
12 mm 585 106 29 90
29 mm 408 306 6 90
38 mm 295 413 12 90
50 mm 154 554 12 90
54 mm 130 590 0 90
62 mm 12 696 12 90
Die-cut labels:
Label Size
Number of Pins
for Left Margin
Number of Print
Area Pins
Number of Pins
for Right Margin
Number of Bytes for
Raster Graphics Transfer
17mm x 54mm 555 165 0 90
17mm x 87mm 555 165 0 90
